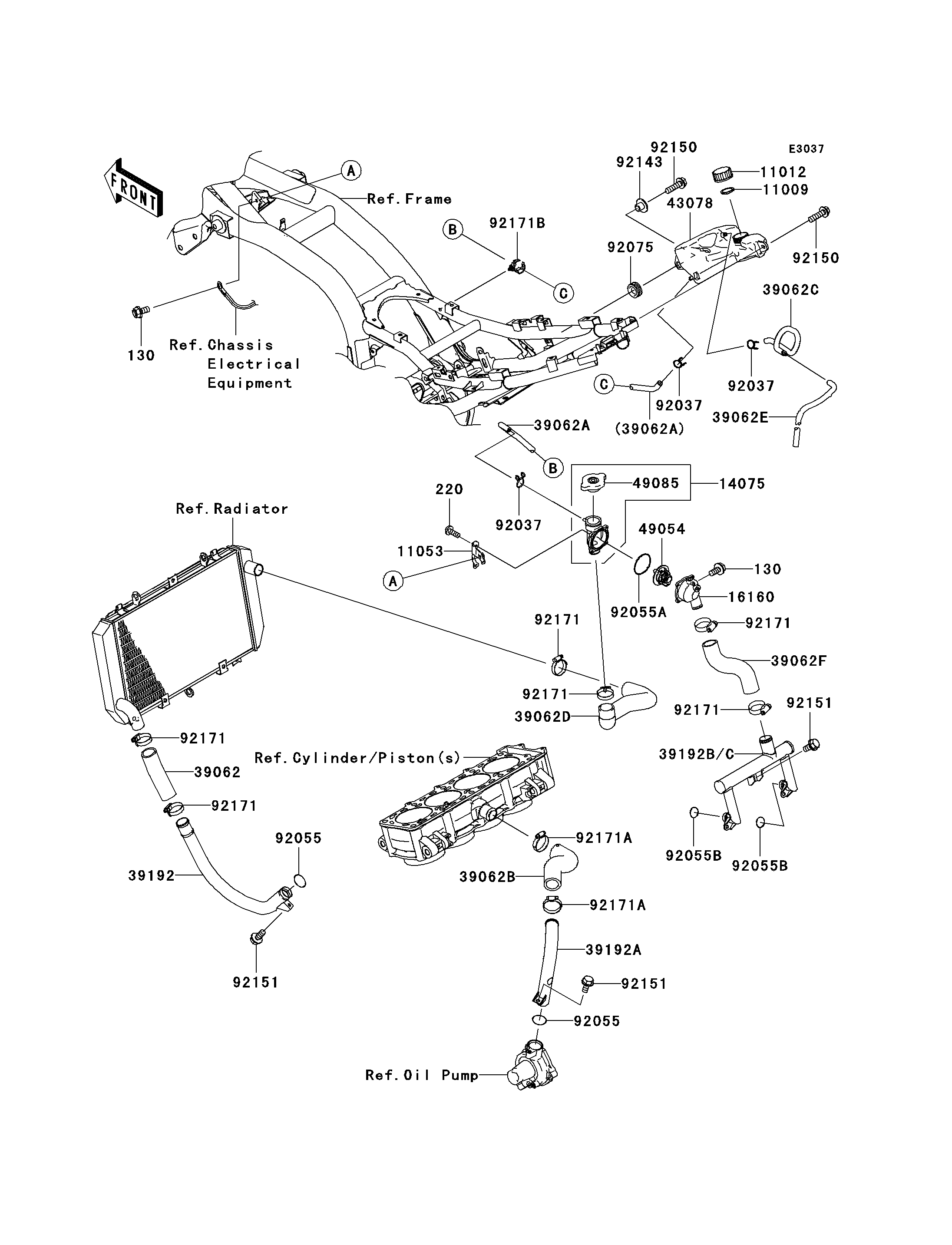

2010 Z750 (European) - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
130
130
220
11009
11012
11053
14075
16160
39062
39062A
39062B
39062C
39062D
39062E
39062F
39192
39192A
39192B
43078
49054
49085
92037
92037
92037
92055
92055
92055A
92055B
92055B
92075
92143
92150
92150
92151
92151
92151
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 2
SCREW-PAN-CROS,5X14 220 220AA0514 4
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMOSTAT 11053 11053-1070 1
CAP-ASSY 14075 14075-0001 1
BODY,LWR 16160 16160-0039 1
HOSE-COOLING,RAD-PIPE 39062 39062-0190 1
HOSE-COOLING,RESERVOIR 39062A 39062-0207 1
HOSE-COOLING,PUMP-CYLINDER 39062B 39062-0208 1
HOSE-COOLING,OVER FLOW 39062C 39062-0213 1
HOSE-COOLING,THERMO-RAD 39062D 39062-0234 1
HOSE-COOLING 39062E 39062-1226 1
HOSE-COOLING,HEAD-THERMO 39062F 39062-1916 1
PIPE-WATER 39192 39192-0049 1
PIPE-WATER 39192A 39192-0071 1
PIPE-WATER 39192B 39192-0073 1
RESERVOIR 43078 43078-0033 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
CLAMP,TUBE 92037 92037-147 3
RING-O,20.8X2.4 92055 92055-0114 2
RING-O,53.5X2.6 92055A 92055-112 1
RING-O,18.54X2.6 92055B 92055-1350 2
DAMPER 92075 92075-1634 1
COLLAR 92143 92143-1962 1
BOLT,FLANGED,6X20 92150 92150-1633 2
BOLT,6X12 92151 92151-1997 5
CLAMP 92171 92171-0179 6
CLAMP 92171A 92171-0180 2
CLAMP 92171B 92171-0864 1
