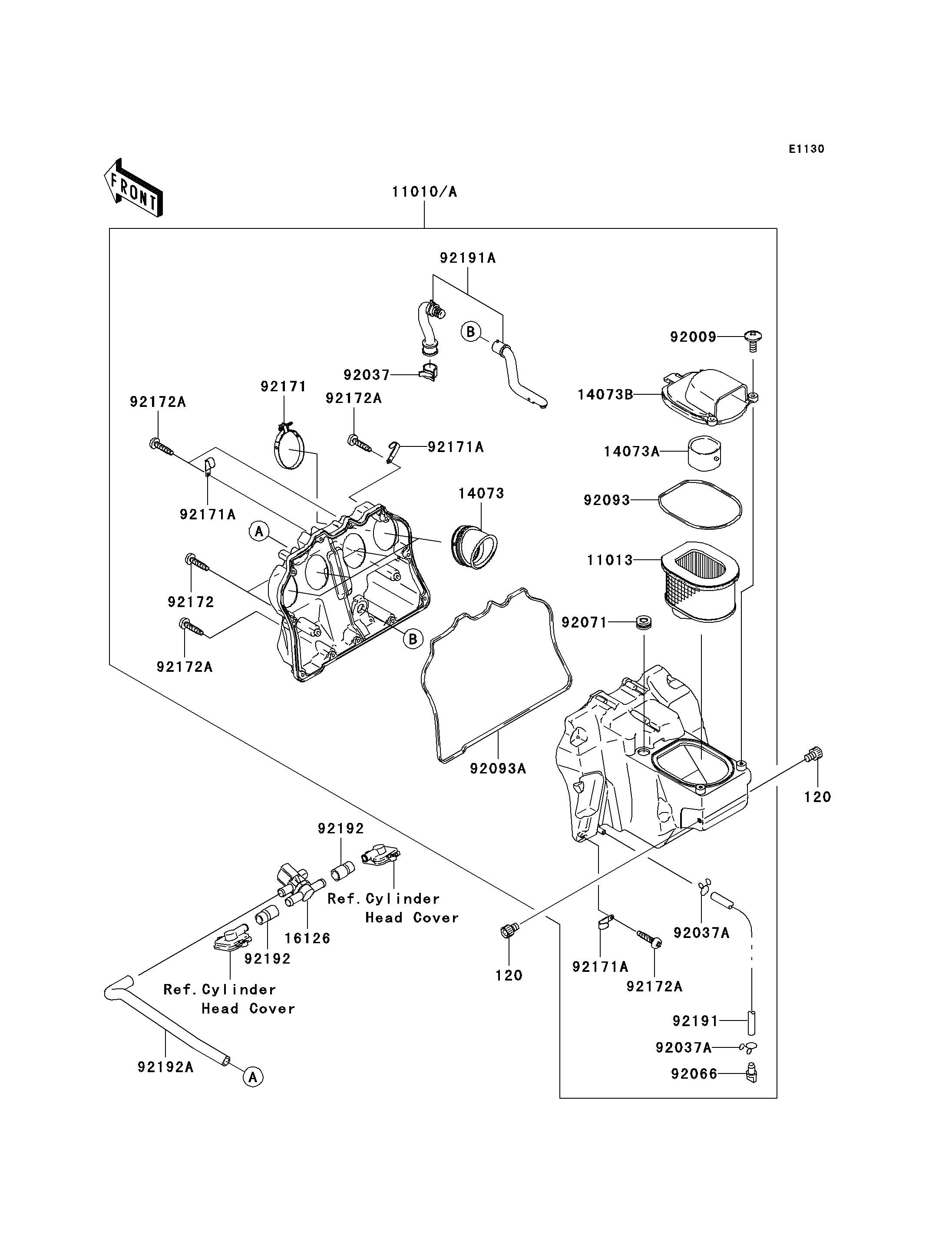

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
120
120
11010A
11013
14073
14073A
14073B
16126
92009
92037
92037A
92037A
92066
92071
92093
92093A
92171
92171A
92171A
92171A
92172
92172A
92172A
92172A
92172A
92191
92191A
92192
92192
92192A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X8 | 120 | 120CA0608 | 2 | ||
| FILTER-ASSY-AIR | 11010A | 11010-0185 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1302 | 1 | ||
| DUCT,FUNNEL | 14073 | 14073-0113 | 4 | ||
| DUCT,INTAKE | 14073A | 14073-0157 | 1 | ||
| DUCT,INTAKE TOP | 14073B | 14073-0164 | 1 | ||
| VALVE,AIR SWITCHING | 16126 | 16126-1437 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 2 | ||
| CLAMP,HOSE CLIP | 92037 | 92037-1460 | 1 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
| GROMMET | 92071 | 92071-2140 | 1 | ||
| SEAL | 92093 | 92093-0002 | 1 | ||
| SEAL | 92093A | 92093-0063 | 1 | ||
| CLAMP,OVAL,66MM | 92171 | 92171-0815 | 4 | ||
| CLAMP | 92171A | 92171-1539 | 3 | ||
| SCREW,TAPPING,5X20 | 92172 | 92172-0009 | 2 | ||
| SCREW-PAN-CROS,5X25 | 92172A | 92172-0056 | 11 | ||
| TUBE,7X10X320 | 92191 | 92191-0019 | 1 | ||
| TUBE | 92191A | 92191-1783 | 1 | ||
| TUBE,HEAD-ASV | 92192 | 92192-0033 | 2 | ||
| TUBE,ASV-A/C | 92192A | 92192-0321 | 1 |
