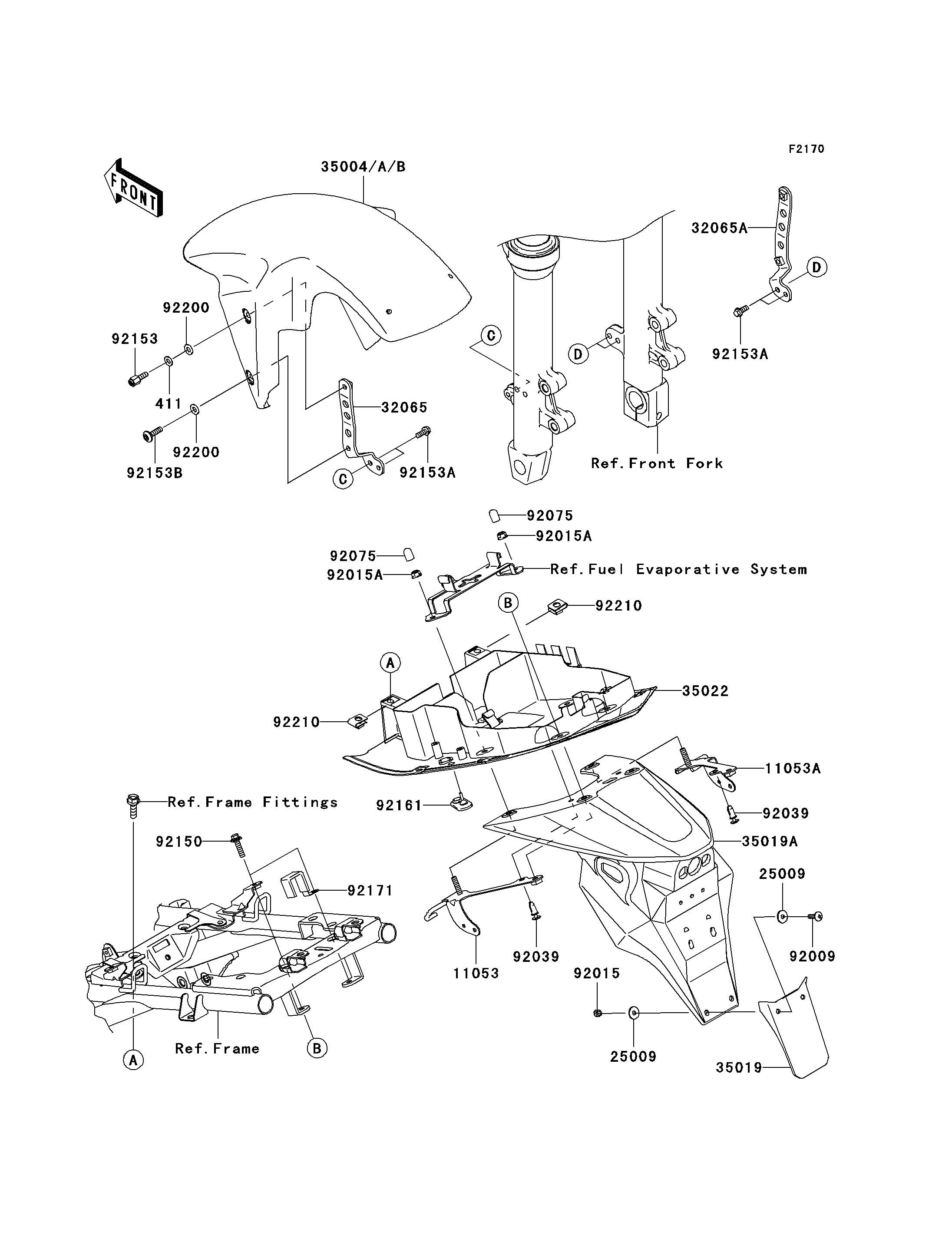

2006 Z750S - Fenders

DOWNLOAD PDF
SELECT A NEW PART
411
11053
11053A
25009
25009
32065
32065A
35004B
35019
35019A
35022
92009
92015
92015A
92015A
92039
92039
92075
92075
92150
92153
92153A
92153A
92153B
92161
92171
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
BRACKET,FLAP,LH 11053 11053-0060 1
BRACKET,FLAP,RH 11053A 11053-0061 1
WASHER,5.2X16X1.2 25009 25009-004 4
BRACKET-FENDER,LH 32065 32065-0002 1
BRACKET-FENDER,RH 32065A 32065-0003 1
FENDER-FRONT,M.S.BLACK 35004B 35004-0024-660 1
FLAP 35019 35019-0006 1
FLAP,REAR FENDER 35019A 35019-0007 1
FENDER-COMP-REAR 35022 35022-0026 1
SCREW,5X14 92009 92009-1653 2
NUT,LOCK,5MM 92015 92015-1221 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 2
RIVET 92039 92039-1286 2
DAMPER,SIDE COVER 92075 92075-1964 2
BOLT,6X25 92150 92150-1829 2
BOLT,6MM 92153 92153-0476 2
BOLT,FLANGED,6X14 92153A 92153-0589 4
BOLT,SOCKET,6X23 92153B 92153-1267 2
DAMPER,REAR FENDER 92161 92161-0298 1
CLAMP 92171 92171-0488 1
WASHER,6.5X14X1 92200 92200-1388 4
NUT 92210 92210-0130 2
FENDER-FRONT,BLUE 35004 35004-0024-10E 1 CN
FENDER-FRONT,G.SILVER 35004A 35004-0024-474 1 CN
