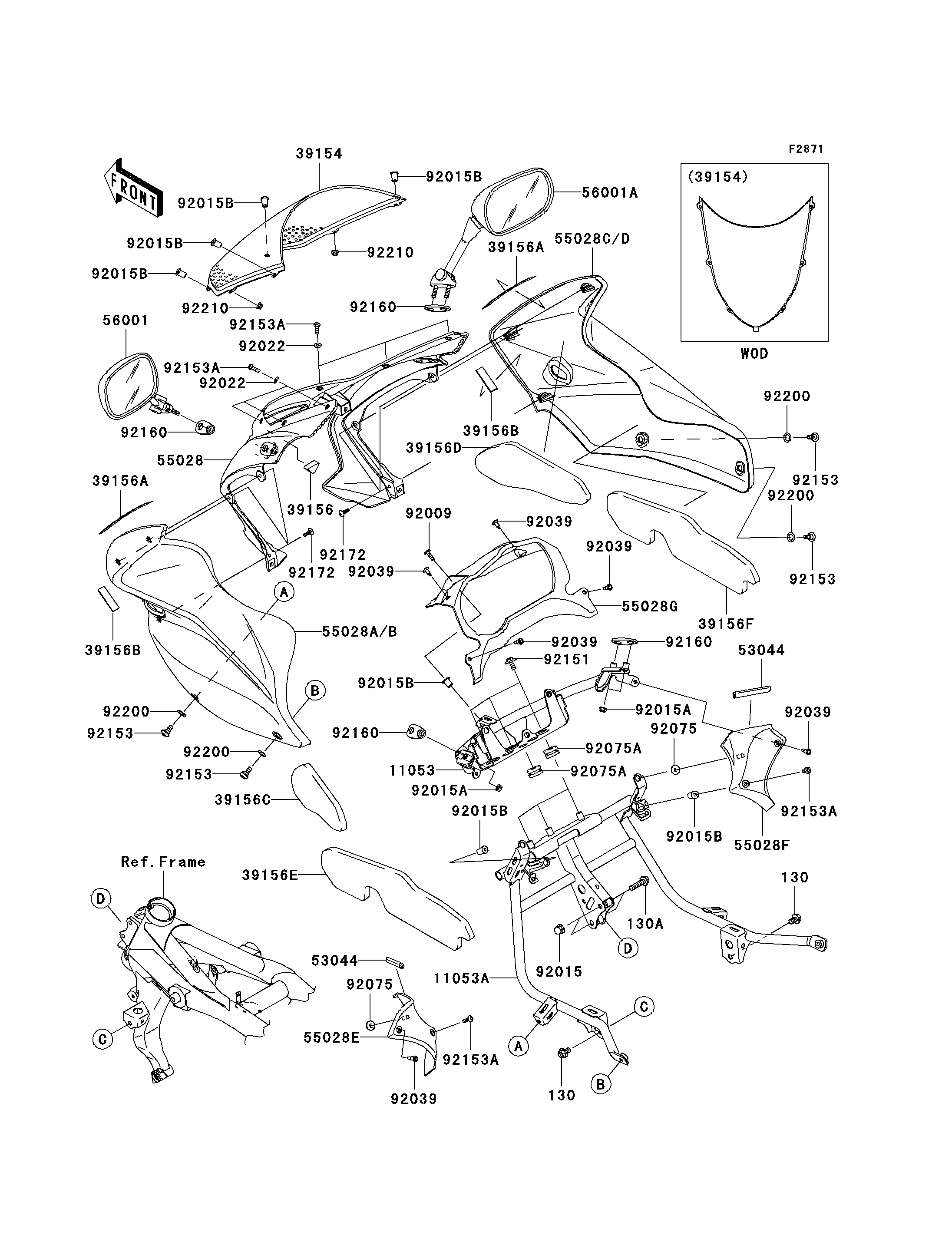

Parts Diagrams |
130
130
130A
11053
11053A
39154
39156
39156A
39156A
39156B
39156B
39156C
39156D
39156E
39156F
53044
53044
55028
55028A
55028C
55028E
55028F
55028G
56001
56001A
92009
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92022
92022
92039
92039
92039
92039
92039
92039
92075
92075
92075A
92075A
92151
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92160
92160
92160
92160
92172
92172
92200
92200
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130L0812 | 2 | ||
| BOLT-FLANGED | 130A | 130L0830 | 2 | ||
| BRACKET,MIRROR&METER | 11053 | 11053-1431 | 1 | ||
| BRACKET,UPP COWLING | 11053A | 11053-1432 | 1 | ||
| WINDSHIELD | 39154 | 39154-0001 | 1 | ||
| PAD,UPP COWLING,CNT | 39156 | 39156-0099 | 1 | ||
| PAD,UPP COWLING,LH&RH | 39156A | 39156-0100 | 2 | ||
| PAD,UPP COWLING,LH&RH | 39156B | 39156-0101 | 2 | ||
| PAD,UPP COWLING,SIDE,LH,UPP | 39156C | 39156-0104 | 1 | ||
| PAD,UPP COWLING,SIDE,RH,UPP | 39156D | 39156-0105 | 1 | ||
| PAD,UPP COWLING,SIDE,LH,LWR | 39156E | 39156-0106 | 1 | ||
| PAD,UPP COWLING,SIDE,RH,LWR | 39156F | 39156-0107 | 1 | ||
| TRIM,L=75 | 53044 | 53044-0009 | 2 | ||
| COWLING,UPP,CNT,F.S.BLACK | 55028 | 55028-0041-8J | 1 | ||
| COWLING,UPP,LH,C.P.BLUE | 55028A | 55028-0042-723 | 1 | ||
| COWLING,UPP,RH,C.P.BLUE | 55028C | 55028-0043-723 | 1 | ||
| COWLING,INNER,LH | 55028E | 55028-0044 | 1 | ||
| COWLING,INNER,RH | 55028F | 55028-0045 | 1 | ||
| COWLING,INNER,CNT | 55028G | 55028-0049 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-0037 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-0038 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1909 | 1 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 2 | ||
| NUT,6MM | 92015A | 92015-1386 | 4 | ||
| NUT,WELL,5MM | 92015B | 92015-1757 | 7 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| RIVET | 92039 | 92039-0023 | 6 | ||
| DAMPER | 92075 | 92075-1011 | 2 | ||
| DAMPER | 92075A | 92075-1690 | 4 | ||
| BOLT,6X16 | 92151 | 92151-1530 | 3 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 4 | ||
| BOLT,SOCKET,5X16 | 92153A | 92153-1244 | 8 | ||
| DAMPER,MIRROR | 92160 | 92160-1089 | 4 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 6 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-0157 | 4 | ||
| NUT,FLANGED,5MM | 92210 | 92210-0007 | 2 | ||
| COWLING,UPP,LH,P.M.RED | 55028B | 55028-0042-724 | 1 | CN | |
| COWLING,UPP,RH,P.M.RED | 55028D | 55028-0043-724 | 1 | CN |
