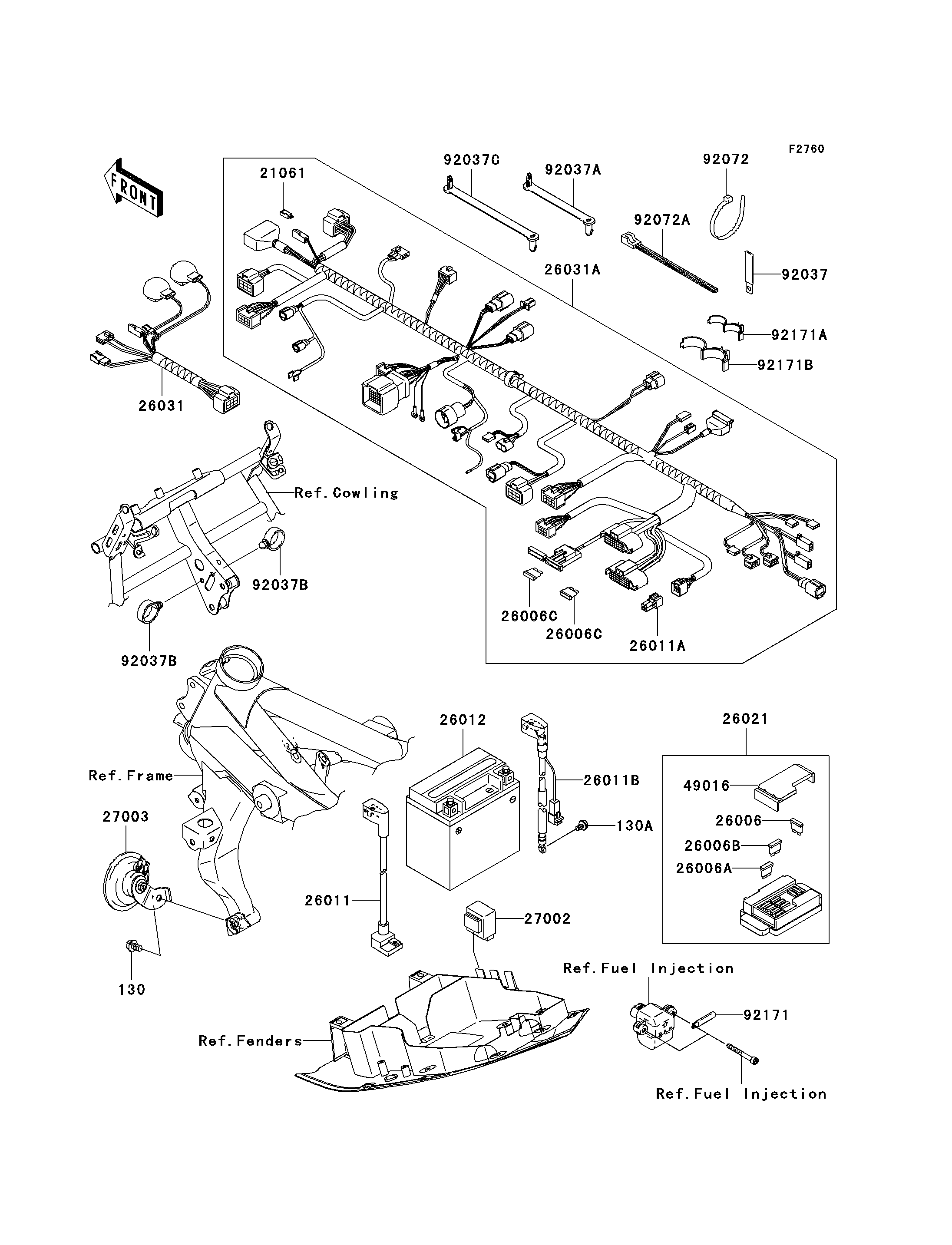

2005 Z750S - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
21061
26006
26006A
26006B
26006C
26006C
26011
26011A
26011B
26012
26021
26031
26031A
27002
27003
49016
92037
92037A
92037B
92037B
92037C
92072
92072A
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0812 1
BOLT-FLANGED,6X10 130A 130V0610 1
RECTIFIER 21061 21061-0001 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 7
FUSE,15A-B 26006B 26006-1069 1
FUSE,15A 26006C 26006-1075 2
WIRE-LEAD,BATTERY(+) 26011 26011-0006 1
WIRE-LEAD 26011A 26011-0037 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0041 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1326 1
JUNCTION BOX 26021 26021-0003 1
HARNESS,FR 26031 26031-0256 1
HARNESS,MAIN 26031A 26031-0268 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-1097 1
HORN 27003 27003-0032 1
COVER-SEAL,FUSE 49016 49016-0005 1
CLAMP,L=60 92037 92037-1069 1
CLAMP,SPEED,L=58 92037A 92037-1163 4
CLAMP,HOSE 92037B 92037-1827 2
CLAMP,SPEED,L=80.5 92037C 92037-1903 1
BAND,L=202 92072 92072-1195 1
BAND,L=250 92072A 92072-1237 3
CLAMP 92171 92171-0181 1
CLAMP,DIA=15 92171A 92171-1424 3
CLAMP,DIA=25 92171B 92171-1559 1
