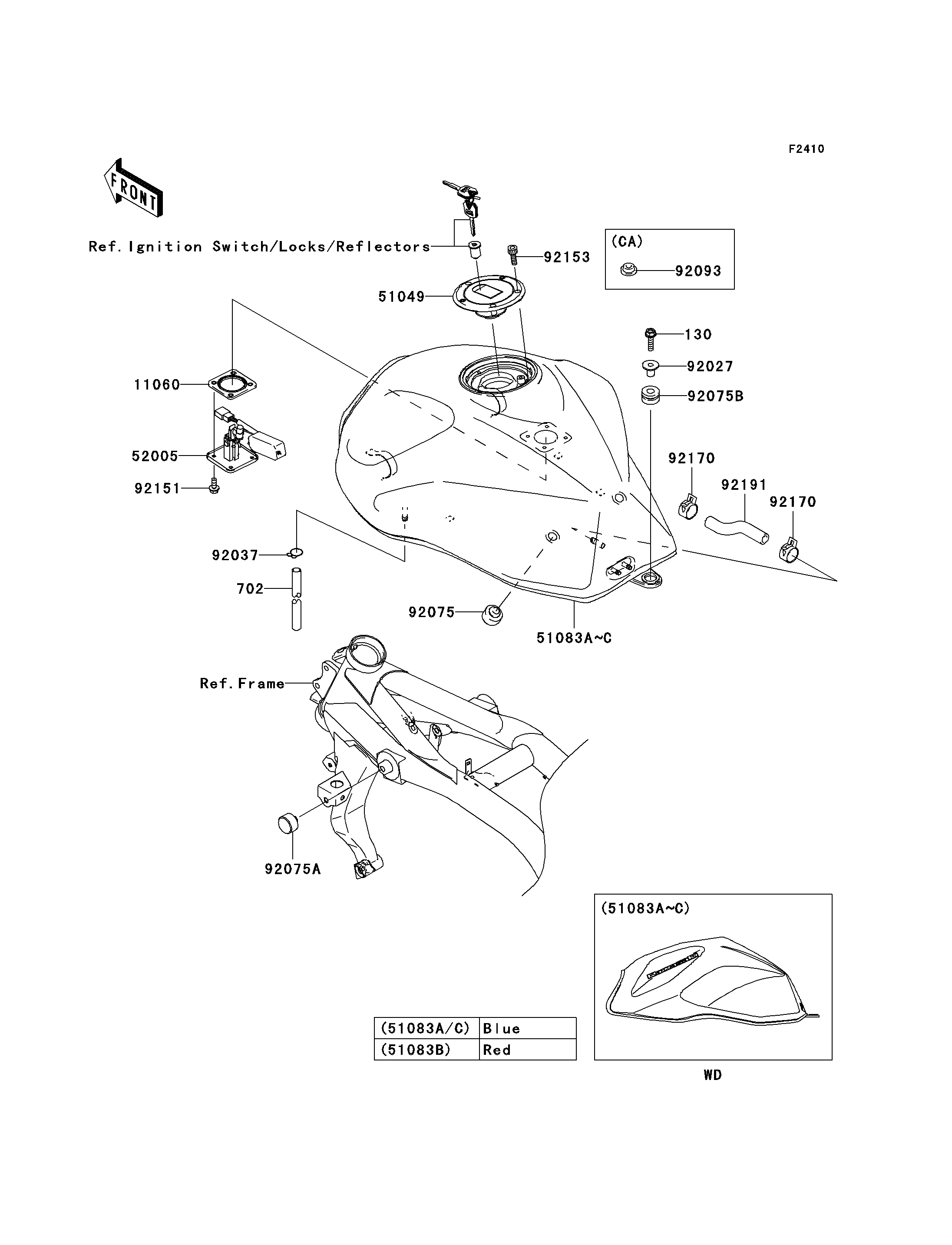

2005 Z750S - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
51049
51049
52005
52005
92027
92027
92037
92037
130
130
702
702
92075
92075
92075A
92075A
92075B
92075B
92151
92151
92153
92153
92170
92170
92170
92170
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
CAP-TANK,FUEL 51049 51049-0008 1
GAUGE,FUEL 52005 52005-1160 1
COLLAR,L=19.3 92027 92027-1780 1
CLAMP,TUBE 92037 92037-010 1
BOLT-FLANGED,8X30 130 130G0830 1
TUBE-RUBBER,6X9X750 702 702A06750 1
DAMPER 92075 92075-015 2
DAMPER,FUEL TANK 92075A 92075-101 2
DAMPER 92075B 92075-1736 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,5X16 92153 92153-0492 3
CLAMP 92170 92170-1492 2
TUBE 92191 92191-1801 1
TANK-COMP-FUEL,C,P,BLUE 51083A 51083-5393-723 1 CNUS
TANK-COMP-FUEL,P.M.RED 51083B 51083-5394-724 1 CN
TANK-COMP-FUEL,C.P.BLUE 51083C 51083-5396-723 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
