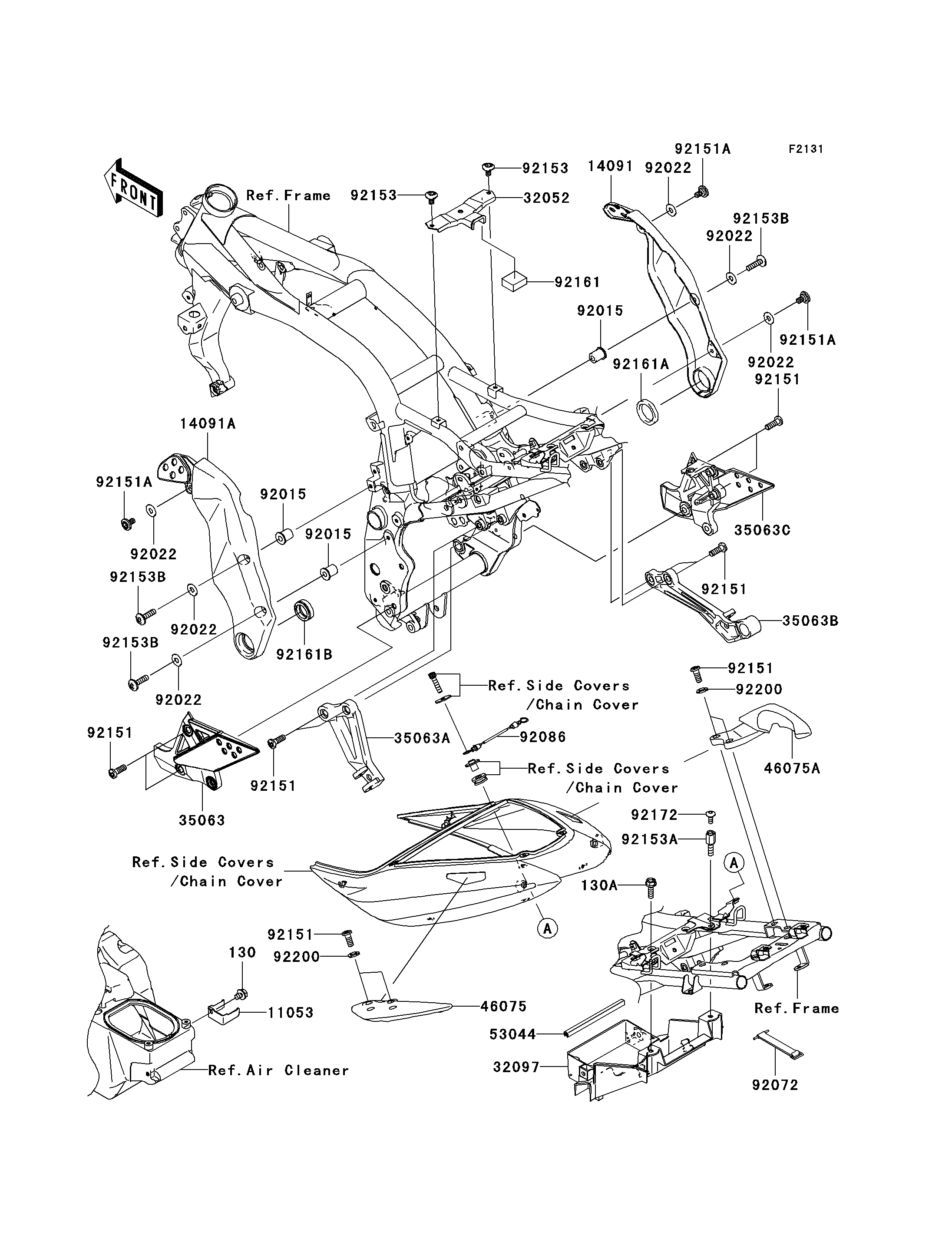

2005 Z750S - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11053
14091
14091A
32052
32097
35063
35063A
35063B
35063C
46075
46075A
53044
92015
92015
92015
92022
92022
92022
92022
92022
92022
92072
92086
92151
92151
92151
92151
92151
92151
92151A
92151A
92151A
92153
92153
92153A
92153B
92153B
92153B
92161
92161A
92161B
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 1
BOLT-FLANGED 130A 130J0620 1
BRACKET,MAGNETIC SWITCH 11053 11053-0138 1
COVER,PIVOT,RH,M.F.GRAYSTONE 14091 14091-0234-4P 1
COVER,PIVOT,LH,M.F.GRAYSTONE 14091A 14091-0283-4P 1
BRACKET-TANK,FUEL 32052 32052-1597 1
CASE-BATTERY 32097 32097-0010 1
STAY,STEP HOLDER,LH 35063 35063-0034 1
STAY,RR,LH,P.SILVER 35063A 35063-0062-458 1
STAY,RR,RH,P.SILVER 35063B 35063-0063-458 1
STAY,STEP HOLDER,RH 35063C 35063-0172 1
GRIP,TAIL,LH 46075 46075-0031 1
GRIP,TAIL,RH 46075A 46075-0032 1
TRIM,L=150 53044 53044-1303 1
NUT 92015 92015-1700 3
WASHER,6.5X16X1 92022 92022-1143 6
BAND,TOOL 92072 92072-1349 1
WIRE,L=150 92086 92086-1075 1
BOLT,SOCKET,10X30 92151 92151-1372 12
BOLT,SOCKET,6X14 92151A 92151-1654 3
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,6MM 92153A 92153-0966 1
BOLT,SOCKET,6X23 92153B 92153-1267 3
DAMPER 92161 92161-0063 1
DAMPER 92161A 92161-0148 1
DAMPER 92161B 92161-0211 1
SCREW,5MM 92172 92172-0170 1
WASHER,10.5X26X2.3 92200 92200-0088 4
