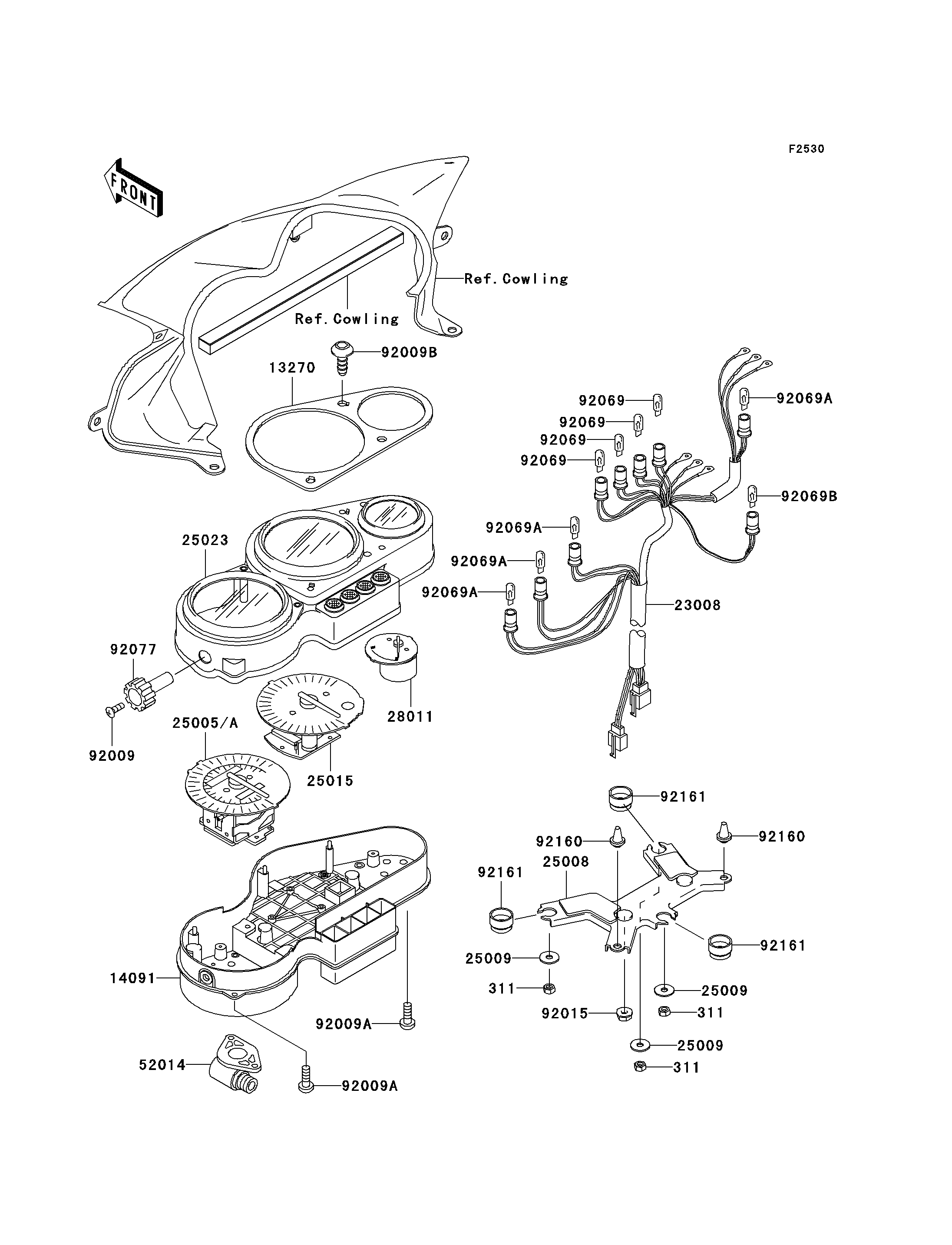

2005 ZR-7S (Canada Only) - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
311
311
311
13270
14091
23008
25005
25008
25009
25009
25009
25015
25023
28011
52014
92009
92009A
92009A
92009B
92015
92069
92069
92069
92069
92069A
92069A
92069A
92069A
92069B
92077
92160
92160
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311C0500 3
PLATE,METER 13270 13270-1524 1
COVER,METER HOUSING 14091 14091-1329 1
SOCKET-ASSY,METER 23008 23008-1646 1
SPEEDOMETER,KPH 25005 25005-1697 1
BRACKET-METER 25008 25008-1214 1
WASHER,5.2X16X1.2 25009 25009-004 3
TACHOMETER,X1000R/MIN 25015 25015-1366 1
COVER-METER CASE,UPP 25023 25023-1260 1
METER,FUEL 28011 28011-1218 1
ELBOW,METER 52014 52014-0002 1
SCREW,2X6,BLACK 92009 92009-1172 1
SCREW,TAPPING,4X14 92009A 92009-1593 5
SCREW,TAPPING,5X16 92009B 92009-1720 3
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
BULB,12V 3.4W,T10 92069 92069-1007 4
BULB,12V 1.7W,T10 92069A 92069-1059 4
BULB,12V 1.7W,T6.5 92069B 92069-1070 1
KNOB,METER 92077 92077-1073 1
DAMPER 92160 92160-1669 2
DAMPER 92161 92161-1231 3
