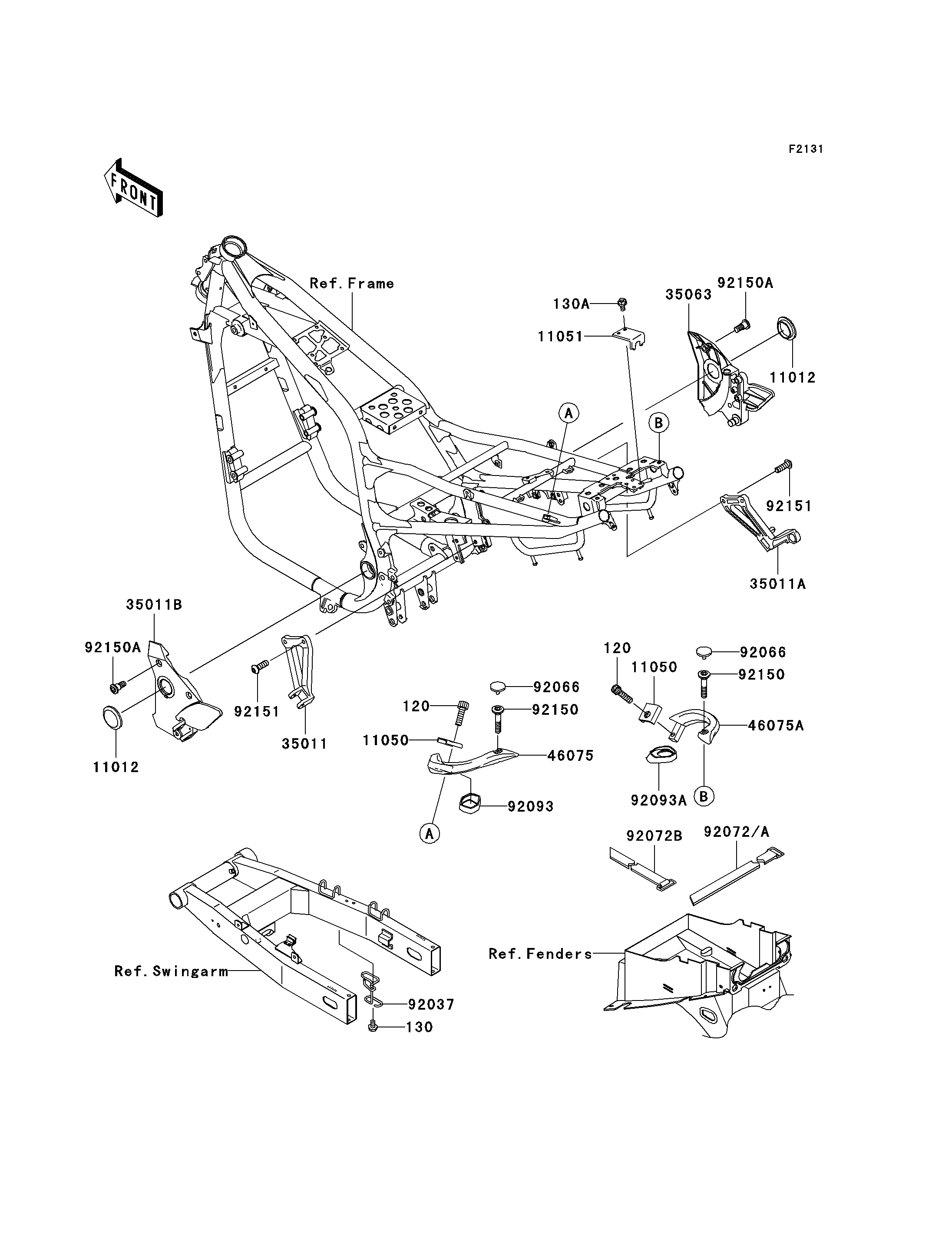

2005 ZR-7S (Canada Only) - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
11012
11012
11050
11050
11051
35011
35011A
35011B
35063
46075
46075A
92037
92066
92066
92072A
92072B
92093
92093A
92150
92150
92150A
92150A
92151
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 2
BOLT-FLANGED,6X10,BLACK 130 130J0610 1
BOLT-FLANGED 130A 130J0612 2
CAP 11012 11012-1657 2
BRACKET,TAIL GRIP 11050 11050-1797 2
BRACKET,TAIL LAMP 11051 11051-1455 1
STAY,RR,LH 35011 35011-1554 1
STAY,RR,RH 35011A 35011-1555 1
STAY,FRONT STEP,LH,C.GRAY 35011B 35011-1998-EZ 1
STAY,FRONT STEP,RH,C.GRAY 35063 35063-1051-EZ 1
GRIP,RR,LH,F.BLACK 46075 46075-1197-21 1
GRIP,RR,RH,F.BLACK 46075A 46075-1198-21 1
CLAMP,TUBE 92037 92037-1942 1
PLUG 92066 92066-1216 2
BAND,L=540 92072A 92072-1378 1
BAND,L=160 92072B 92072-1381 1
SEAL,REAR GRIP,LH 92093 92093-1476 1
SEAL,REAR GRIP,RH 92093A 92093-1477 1
BOLT,SOCKET,8X40 92150 92150-1735 2
BOLT,SOCKET,8X20 92150A 92150-1839 6
BOLT,SOCKET,8X25 92151 92151-1593 4
