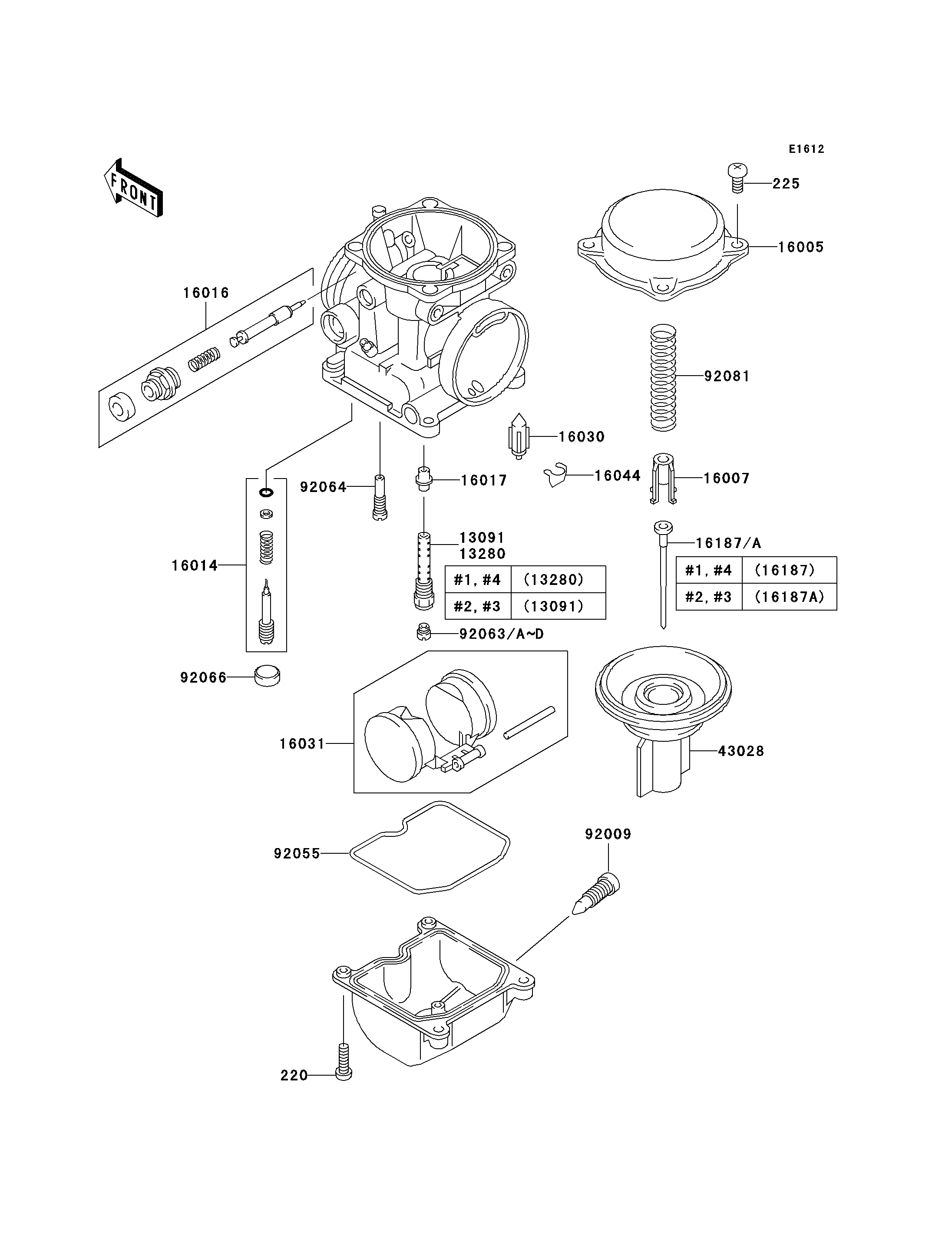

2005 ZR-7S (Canada Only) - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
225
13091
13280
16005
16007
16014
16016
16017
16030
16031
16044
16187
16187A
43028
92009
92055
92063
92063A
92063B
92063C
92063D
92064
92066
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0414 16
SCREW-PAN-WSP-CROS 225 225C0418 15
HOLDER,NEEDLE JET,0.6X18 13091 13091-1925 2
HOLDER,NEEDLE JET,0.7X14 13280 13280-1176 2
TOP-CHAMBER,MIXING 16005 16005-1056 4
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 4
SCREW-PILOT AIR 16014 16014-1092 4
PLUNGER,STARTER 16016 16016-1090 4
JET-NEEDLE,#6 16017 16017-1409 4
VALVE-FLOAT 16030 16030-1057 4
FLOAT 16031 16031-1077 4
CLAMP,FLOAT VALVE 16044 16044-007 4
NEEDLE-JET,N6NC 16187 16187-1117 2
NEEDLE-JET,N4MD 16187A 16187-1118 2
DIAPHRAGM,VALVE 43028 43028-1080 4
SCREW,DRAIN,M6X0.75 92009 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1222 4
JET-MAIN,#110 92063 92063-1007 AR (OPTION)
JET-MAIN,#105 92063A 92063-1009 AR (OPTION)
JET-MAIN,#102 92063B 92063-1090 AR (OPTION)
JET-MAIN,#108 92063C 92063-1116 4
JET-MAIN,#112 92063D 92063-1117 AR (OPTION)
JET-PILOT,#35 92064 92064-1035 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,VACUUM VALVE 92081 92081-1925 4
