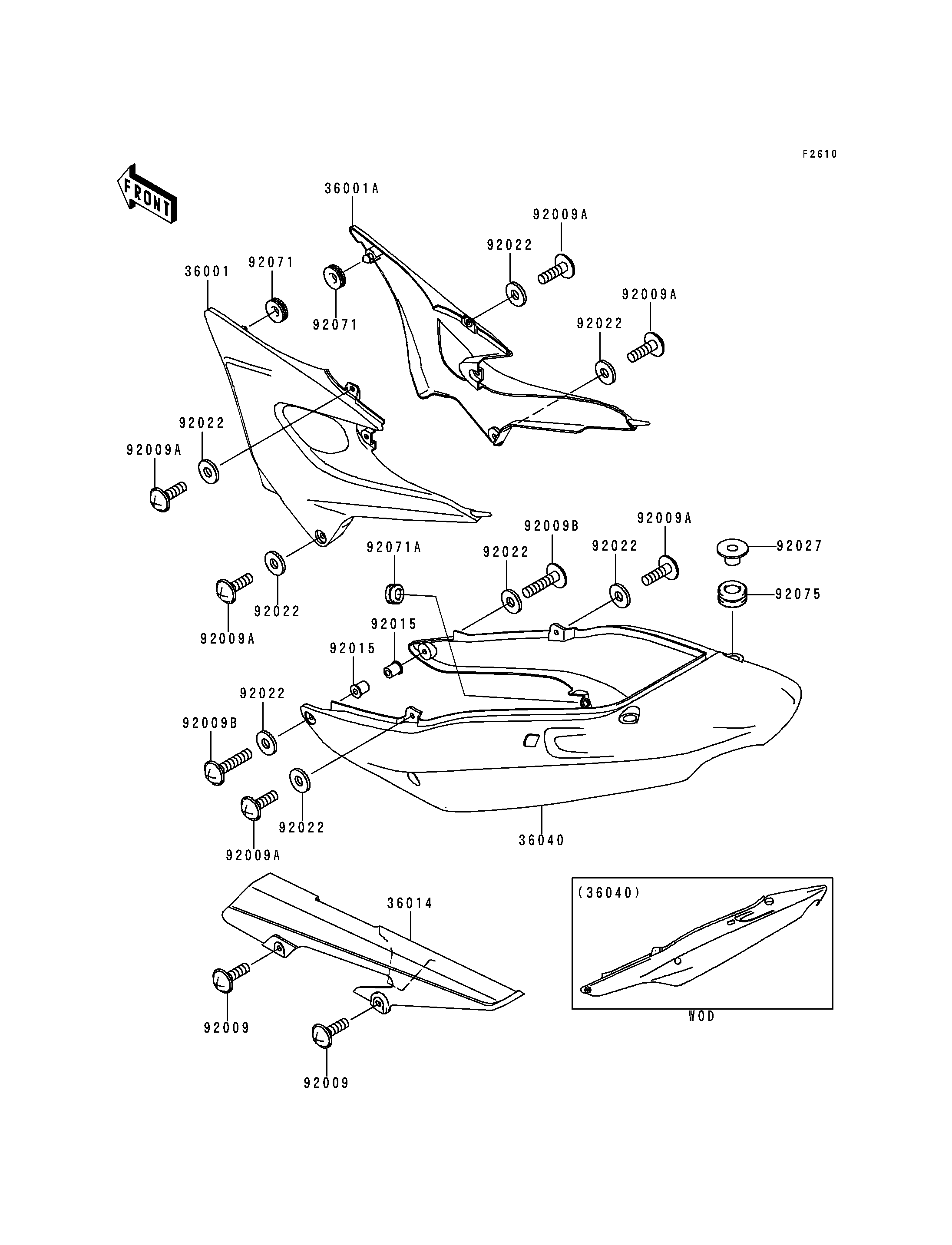

2000 ZR-7 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
36040
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92027
92071
92071
92071A
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,M.F.C.GRAY 36001 36001-1629-E4 1
COVER-SIDE,RH,M.F.C.GRAY 36001A 36001-1630-E4 1
CASE-CHAIN 36014 36014-1196 1
COVER-TAIL,C.L.BLUE 36040 36040-1052-E1 1
SCREW,6X10 92009 92009-1402 2
SCREW,6X14 92009A 92009-1662 6
SCREW,6X22 92009B 92009-1664 2
NUT 92015 92015-1700 2
WASHER,6.5X16X1 92022 92022-1143 8
COLLAR 92027 92027-4015 2
GROMMET 92071 92071-056 2
GROMMET 92071A 92071-1152 2
DAMPER 92075 92075-1898 2
