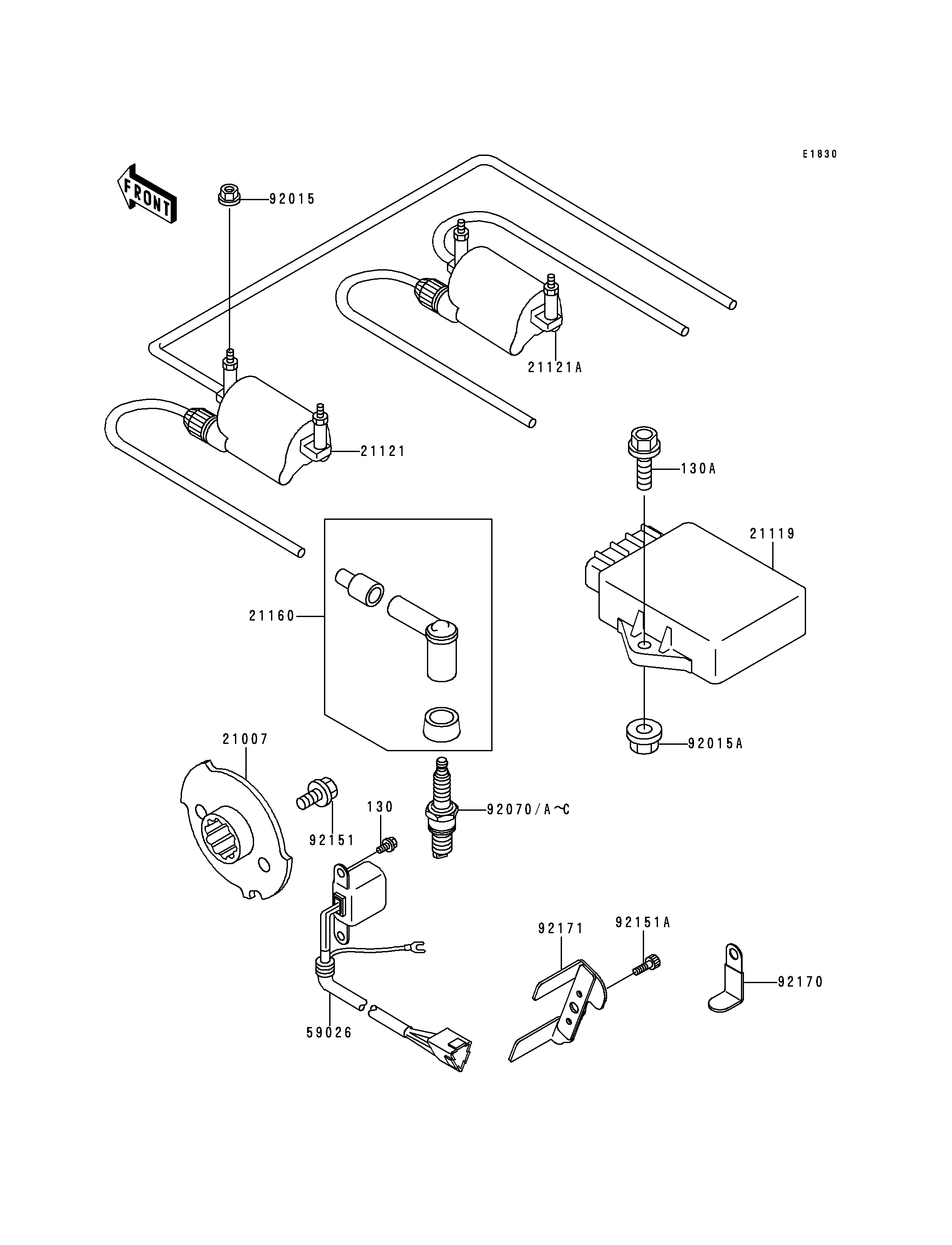

2000 ZR-7 - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130A
21007
21119
21121
21121A
21160
59026
92015
92015A
92070
92070A
92070B
92070C
92151
92151A
92170
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
BOLT-FLANGED 130A 130J0620 2
ROTOR 21007 21007-1353 1
IGNITER 21119 21119-1541 1
COIL-IGNITION,#1&#4 21121 21121-1177 1
COIL-IGNITION,#2&#3 21121A 21121-1178 1
CAP-ASSY-PLUG 21160 21160-1085 4
COIL-PULSING 59026 59026-1152 1
NUT,FLANGED,6MM 92015 92015-1193 4
NUT 92015A 92015-1700 2
PLUG-SPARK,X24ESR-U(ND) 92070 AR (OPTION)
PLUG-SPARK,X27ESR-U(ND) 92070A 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DR9EA(NGK) 92070B 92070-1189 4
PLUG-SPARK,DR8EA(NGK) 92070C 92070-1199 AR (OPTION)
BOLT,8X23 92151 92151-1308 1
BOLT,SOCKET,5X12 92151A 92151-1365 1
CLAMP 92170 92170-1728 3
CLAMP 92171 92171-1150 1
