Parts Diagrams |

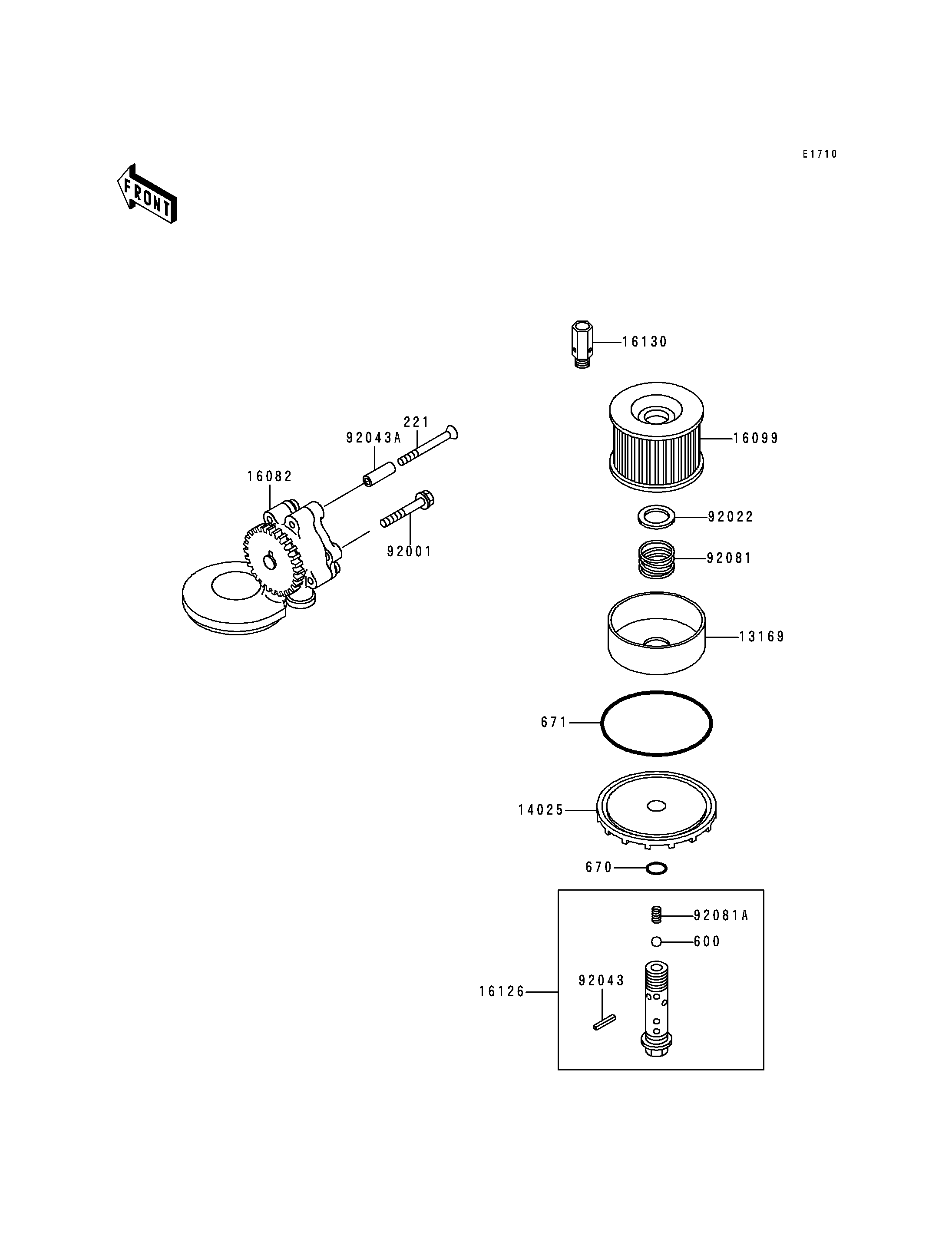

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS,6X55 | 221 | 221B0655 | 2 | ||
| BALL-STEEL,3/8" | 600 | 600A1200 | 1 | ||
| O RING,16MM | 670 | 670B2016 | 1 | ||
| O RING,90MM | 671 | 671B2590 | 1 | ||
| PLATE,OIL FILTER | 13169 | 13169-1110 | 1 | ||
| COVER,OIL FILTER,F.BLACK | 14025 | 14025-1422 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1158 | 1 | ||
| ELEMENT-OIL FILTER | 16099 | 16099-003 | 1 | ||
| VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
| BOLT,FLANGED,6X45 | 92001 | 92001-165 | 1 | ||
| WASHER,20.5X30X1 | 92022 | 92022-1012 | 1 | ||
| PIN,SPRING,2X20 | 92043 | 92043-111 | 1 | ||
| PIN | 92043A | 92043-1603 | 2 | ||
| SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
| SPRING | 92081A | 92081-109 | 1 |
