Parts Diagrams |

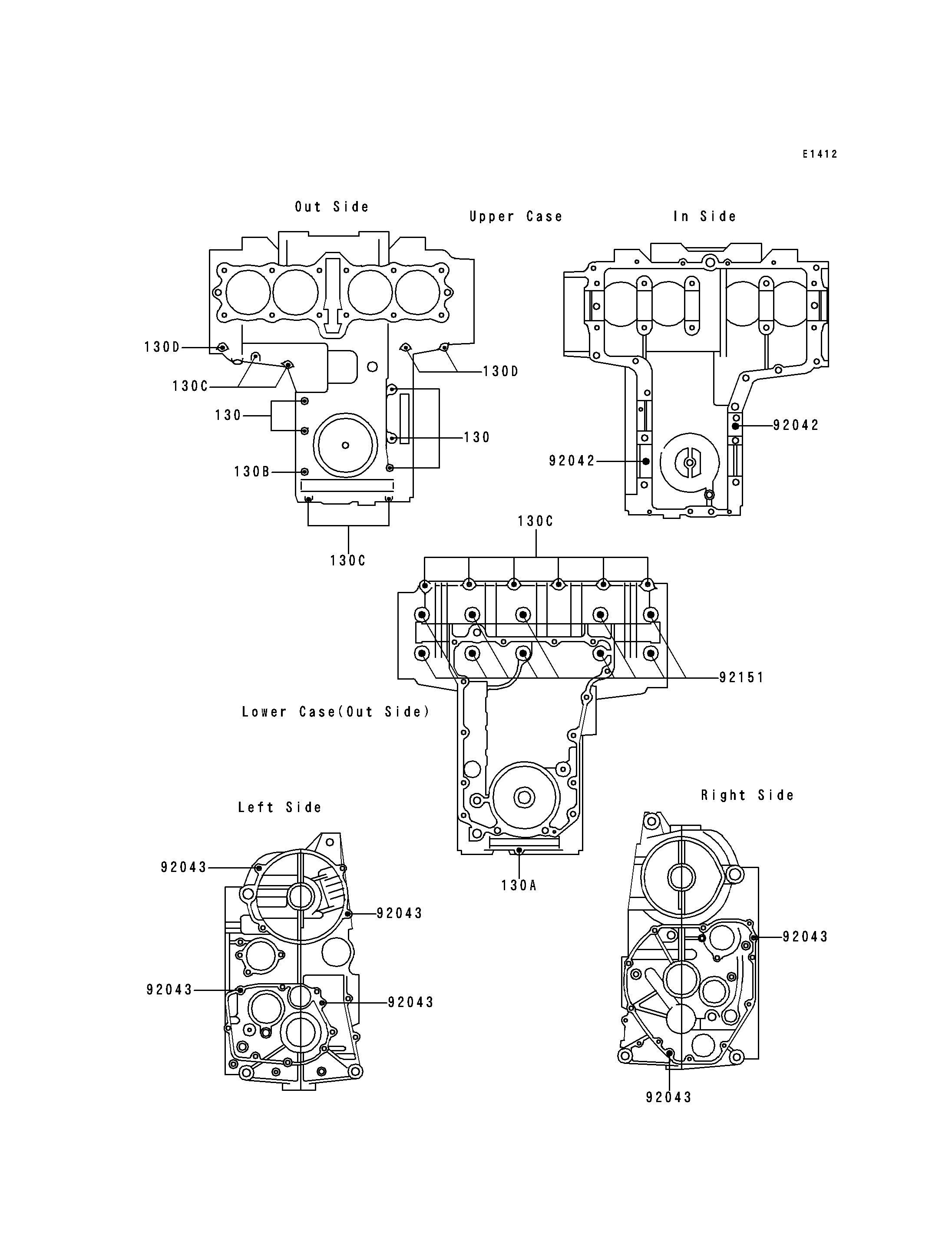

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130Y06100 | 5 | ||
| BOLT-FLANGED | 130A | 130Y06105 | 1 | ||
| BOLT-FLANGED | 130B | 130Y06115 | 1 | ||
| BOLT-FLANGED | 130C | 130Y0640 | 10 | ||
| BOLT-FLANGED | 130D | 130Y0650 | 3 | ||
| PIN,DOWEL,6X16 | 92042 | 92042-016 | 2 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 6 | ||
| BOLT,8X95 | 92151 | 92151-1486 | 10 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6X16 | |
| REF # | 92042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X95 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
