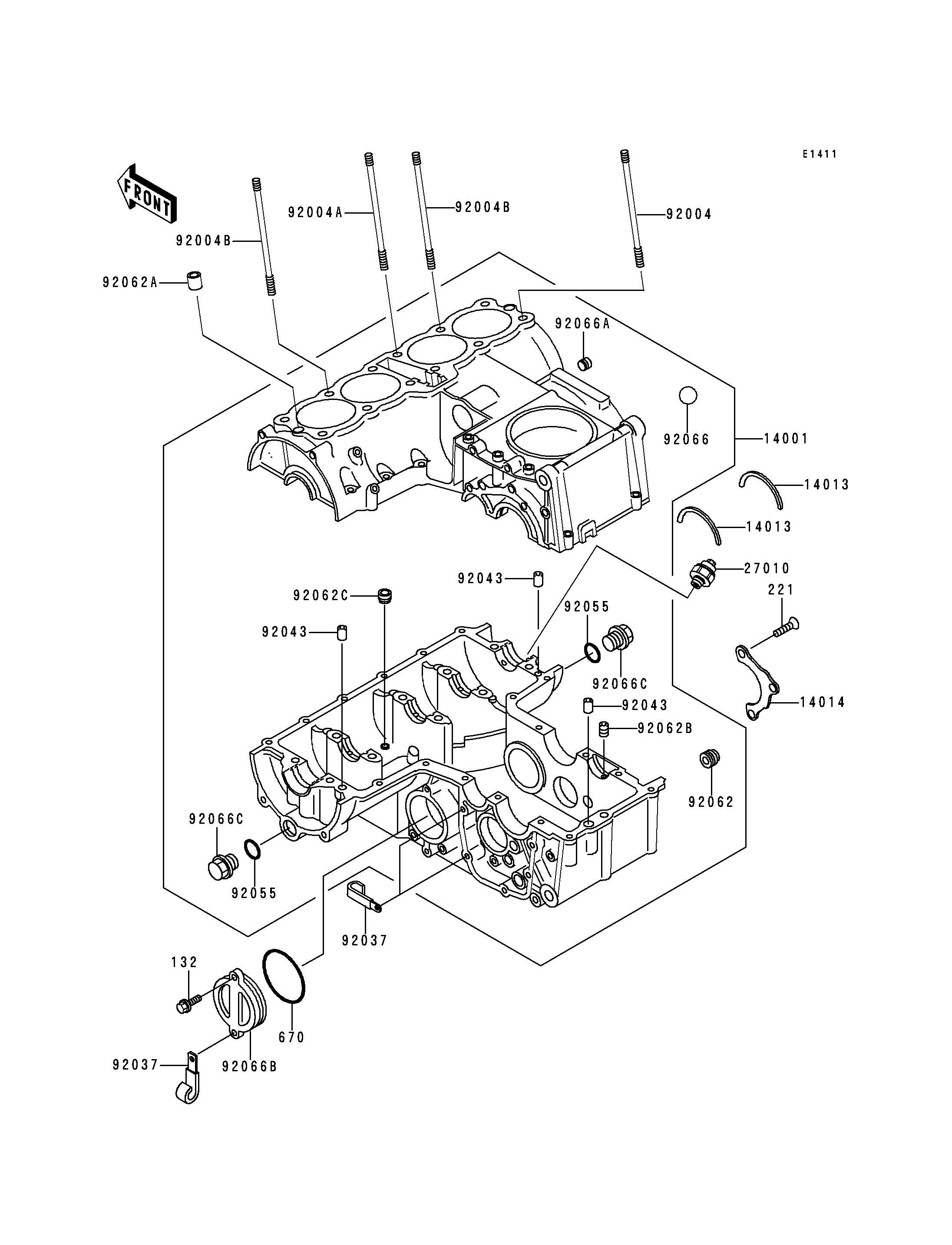

2000 ZR-7 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
221
670
14001
14013
14013
14014
27010
92004
92004A
92004B
92004B
92037
92037
92043
92043
92043
92055
92055
92062
92062A
92062B
92062C
92066
92066A
92066B
92066C
92066C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0620 2
SCREW-CSK-CROS,6X20 221 221B0620 1
O RING,46MM 670 670E3046 1
SET-CRANKCASE 14001 14001-5370 1
RING-POSITION 14013 14013-004 2
PLATE-POSITION,SECONDARY SHAFT 14014 14014-1007 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
STUD,10X133 92004 92004-1231 4
STUD,10X153 92004A 92004-1232 4
STUD,10X116 92004B 92004-1233 4
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 3
PIN,DOWEL,10X14 92043 92043-1037 3
RING-O 92055 92055-1146 2
NOZZLE 92062 92062-014 1
NOZZLE 92062A 92062-016 2
NOZZLE,6X8,SILVER 92062B 92062-1081 1
NOZZLE 92062C 92062-1086 4
PLUG,RUBBER BALL,6.7 92066 92066-057 1
PLUG 92066A 92066-1005 1
PLUG,SECONDARY SHAFT,52X19 92066B 92066-1019 1
PLUG,MAIN GALLERY,18X9,BLACK 92066C 92066-1096 2
