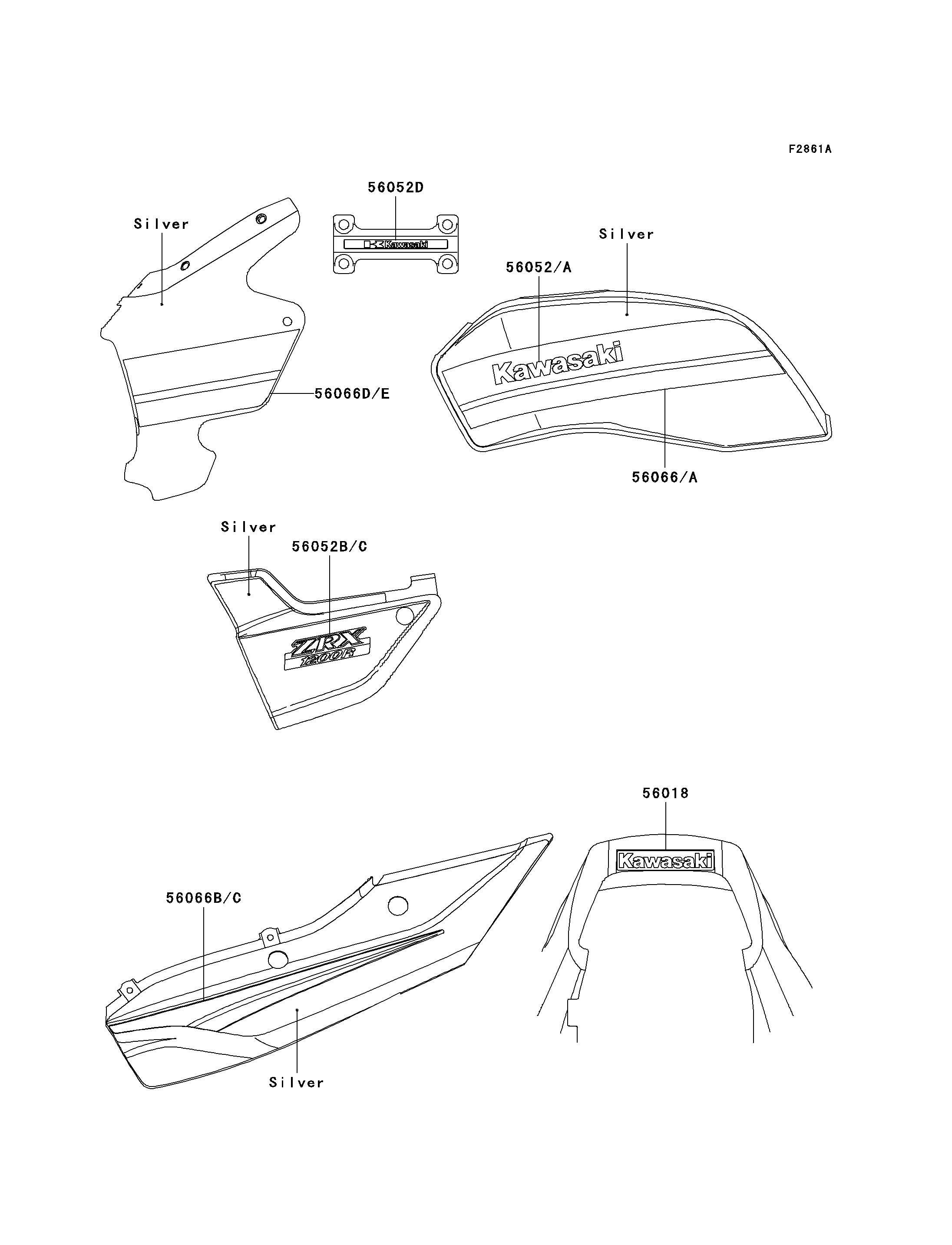

2004 ZRX1200R - Decals(Silver)(A4)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SEAT COVER,KAWASAKI | 56018 | 56018-1208 | 1 | CAUS | |
| MARK,FUEL TANK,LH,KAWASAKI | 56052 | 56052-0090 | 1 | CAUS | |
| MARK,FUEL TANK,RH,KAWASAKI | 56052A | 56052-0091 | 1 | CAUS | |
| MARK,SIDE COVER,LH,ZRX 1200R | 56052B | 56052-1444 | 1 | CAUS | |
| MARK,SIDE COVER,RH,ZRX 1200R | 56052C | 56052-1445 | 1 | CAUS | |
| MARK,HANDLE HOLDER,K.KAWASAKI | 56052D | 56052-1463 | 1 | CAUS | |
| PATTERN,FUEL TANK,LH | 56066 | 56066-0605 | 1 | CAUS | |
| PATTERN,FUEL TANK,RH | 56066A | 56066-0606 | 1 | CAUS | |
| PATTERN,SEAT COVER,LH | 56066B | 56066-0607 | 1 | CAUS | |
| PATTERN,SEAT COVER,RH | 56066C | 56066-0608 | 1 | CAUS | |
| PATTERN,UPP COWLING,LH | 56066D | 56066-0609 | 1 | CAUS | |
| PATTERN,UPP COWLING,RH | 56066E | 56066-0610 | 1 | CAUS |
| MARK,SEAT COVER,KAWASAKI | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,FUEL TANK,LH,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,SIDE COVER,LH,ZRX 1200R | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,SIDE COVER,RH,ZRX 1200R | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,HANDLE HOLDER,K.KAWASAKI | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56066C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56066D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56066E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
