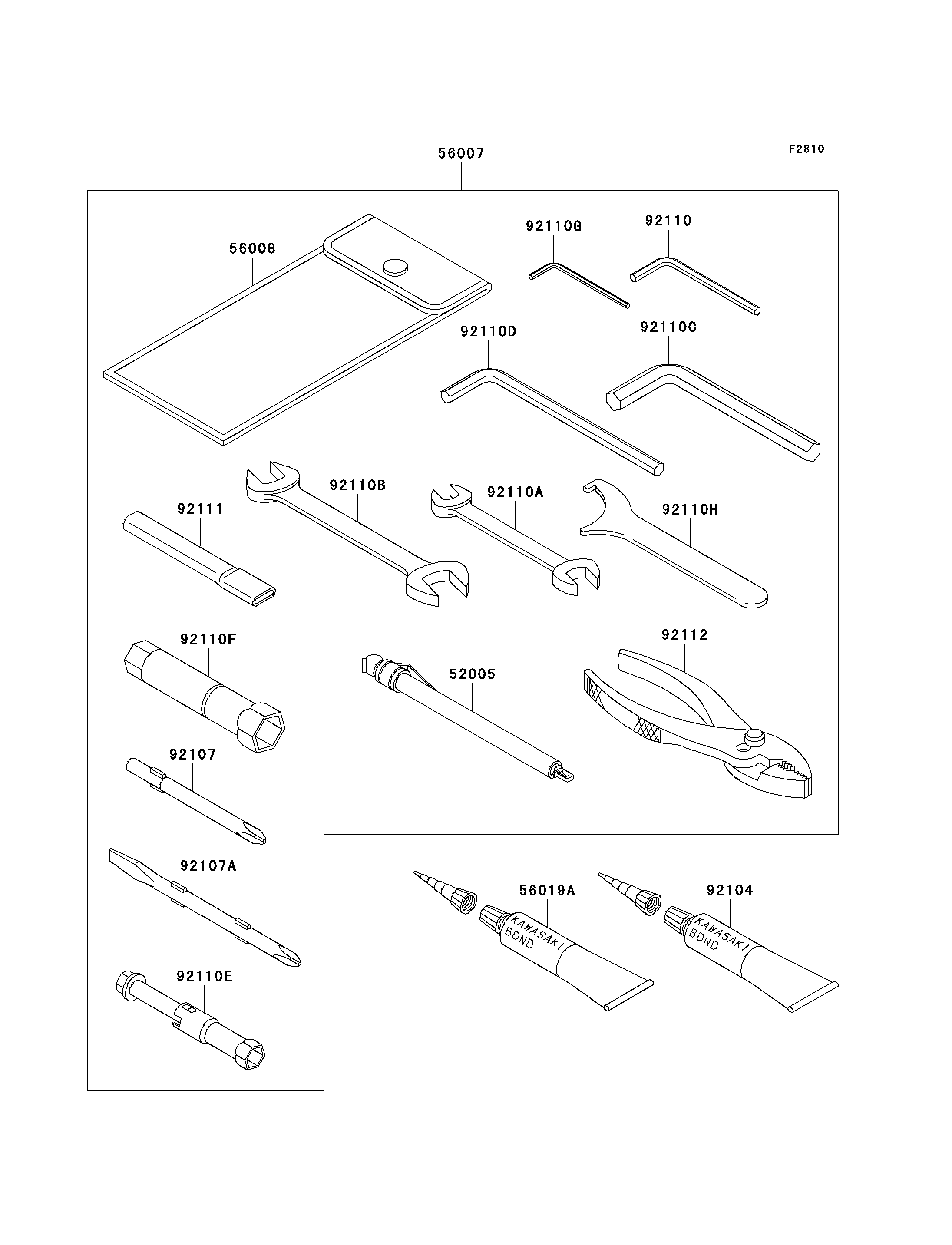

Parts Diagrams |
52005
56007
56008
56019A
92104
92107
92107A
92110
92110A
92110B
92110C
92110D
92110E
92110F
92110G
92110H
92111
92112
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GAUGE,AIR,350KPA/50PSI | 52005 | 52005-1142 | 1 | ||
| TOOL-KIT | 56007 | 56007-0012 | 1 | ||
| BAG,TOOL | 56008 | 56008-006 | 1 | ||
| THREE BOND TB1211,HT/RS,WHITE | 56019A | 56019-120 | 1 | ||
| GASKET-LIQUID,GRAY TB1216S | 92104 | 92104-1063 | 1 | ||
| TOOL-DRIVER,#3PHILLIPS | 92107 | 92107-1002 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS&SLOT | 92107A | 92107-1052 | 1 | ||
| TOOL-WRENCH,ALLEN,5MM | 92110 | 92110-1015 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110A | 92110-1038 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110B | 92110-1045 | 1 | ||
| TOOL-WRENCH,ALLEN,12MM | 92110C | 92110-1104 | 1 | ||
| TOOL-WRENCH,ALLEN,8MM | 92110D | 92110-1108 | 1 | ||
| TOOL-WRENCH,BOX,16MM | 92110E | 92110-1132 | 1 | ||
| TOOL-WRENCH,BOX,18MM | 92110F | 92110-1135 | 1 | ||
| TOOL-WRENCH,ALLEN,3MM | 92110G | 92110-1140 | 1 | ||
| TOOL-WRENCH,HOOK | 92110H | 92110-1202 | 1 | ||
| TOOL-BAR,BOX END WRENCH | 92111 | 92111-1052 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-003 | 1 |
