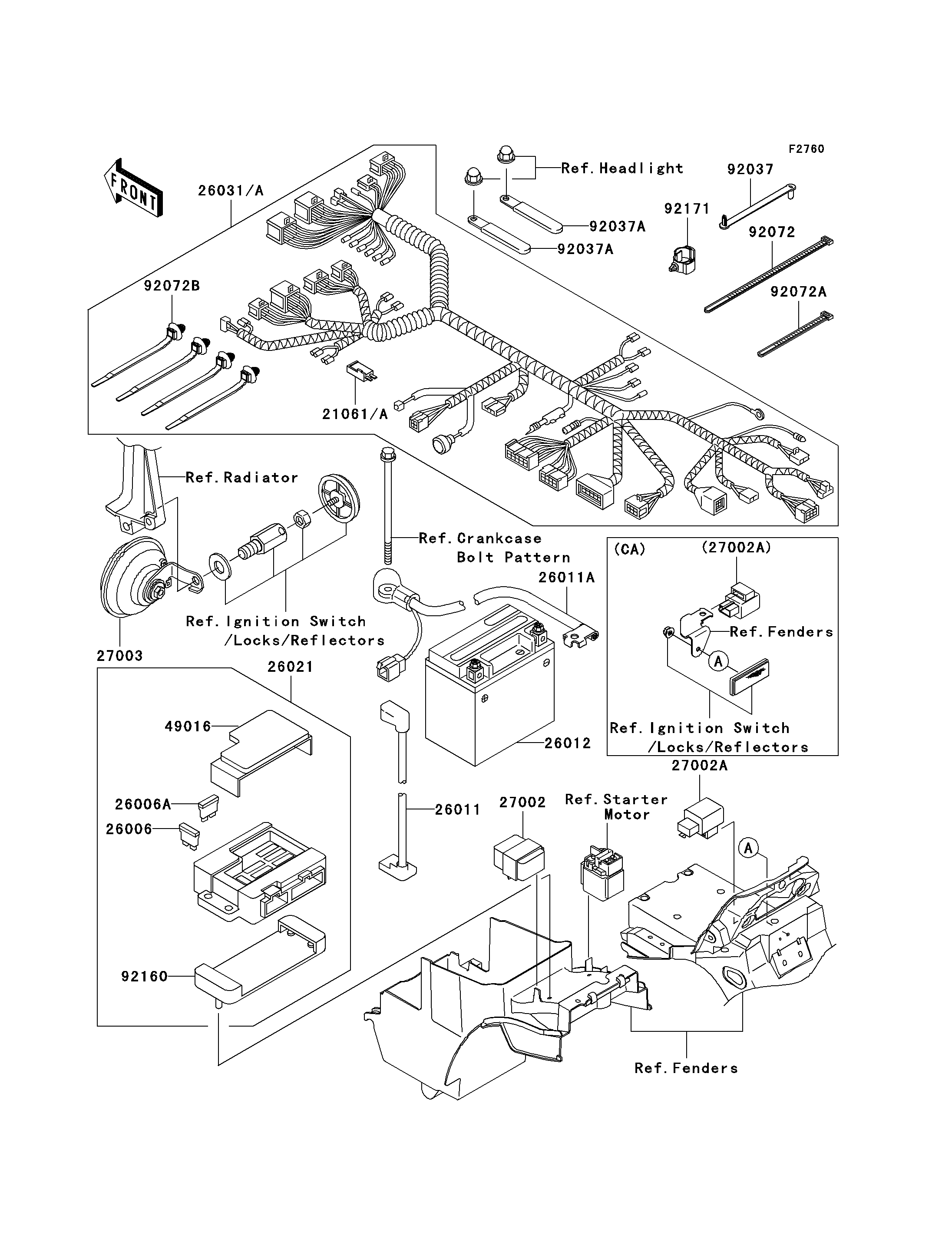

2004 ZRX1200R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
26006
26006A
26011
26011A
26012
26021
27002
27002A
27003
49016
92037
92037A
92037A
92072
92072A
92072B
92160
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(+) 26011 26011-1792 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1793 1
BATTERY,FTX14-BS,12V 12AH 26012 26012-0047 1
JUNCTION BOX 26021 26021-1096 1
RELAY-ASSY,HEAD LAMP 27002 27002-1078 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN,RH 27003 27003-1424 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP 92037A 92037-1993 2
BAND,L=250 92072 92072-1237 4
BAND,L=140 92072A 92072-1293 2
BAND 92072B 92072-1414 4
DAMPER,JUNCTION BOX 92160 92160-1650 1
CLAMP,DIA=13 92171 92171-1415 2
RECTIFIER 21061 21061-0001 1 CA
RECTIFIER 21061A 21061-1059 1 CNUS
HARNESS,MAIN 26031 26031-0005 1 CNUS
HARNESS,MAIN 26031A 26031-0232 1 CA
