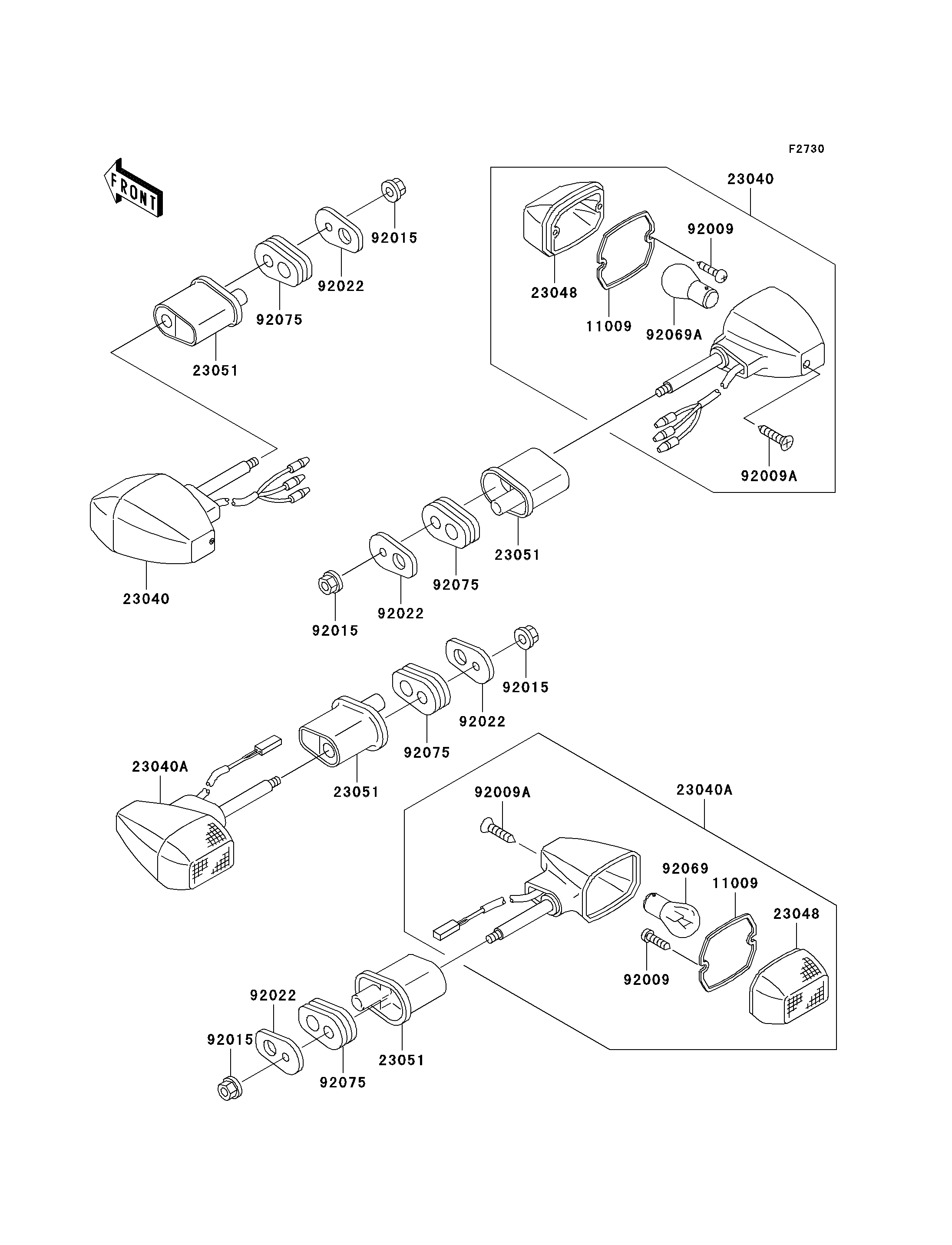

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
23040
23040
23040A
23040A
23048
23048
23051
23051
23051
23051
92009
92009
92009A
92009A
92015
92015
92015
92015
92022
92022
92022
92022
92069
92069A
92075
92075
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11009 | 11009-1402 | 4 | ||
| LAMP-SIGNAL,FR | 23040 | 23040-1279 | 2 | ||
| LAMP-SIGNAL,RR | 23040A | 23040-1285 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1054 | 4 | ||
| BRACKET-SIGNAL LAMP | 23051 | 23051-1248 | 4 | ||
| SCREW,TAPPING,3X16 | 92009 | 92009-1115 | 8 | ||
| SCREW,TAPPING,4X20 | 92009A | 92009-1304 | 4 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| WASHER,SIGNAL LAMP | 92022 | 92022-1672 | 4 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
| BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
| DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 4 |
| GASKET,SIGNAL LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,FR | |
| REF # | 23040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,RR | |
| REF # | 23040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP | |
| REF # | 23048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SIGNAL LAMP | |
| REF # | 23051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X20 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,SIGNAL LAMP | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32CP(23W) | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP(23/8W) | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SIGNAL LAMP | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
