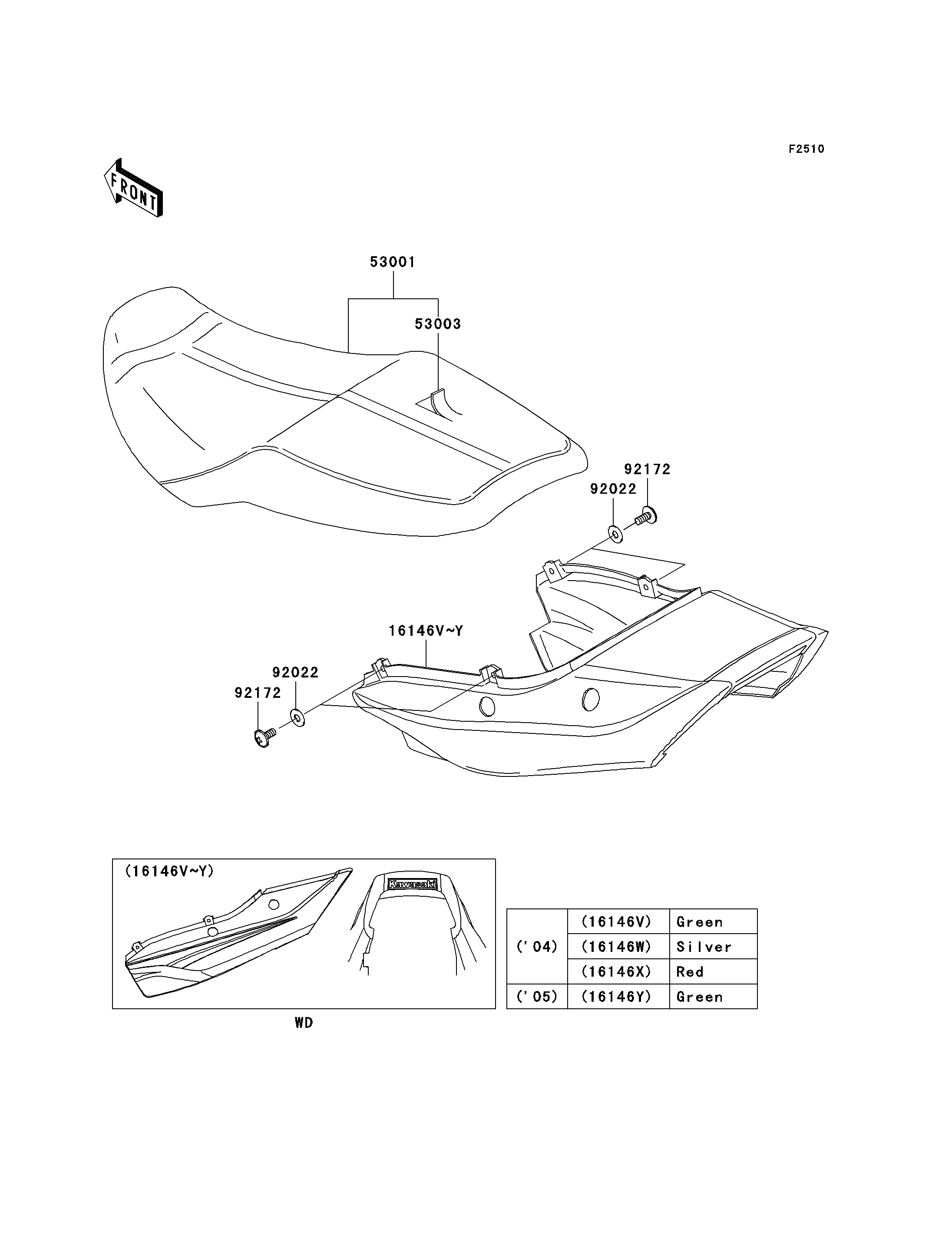

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-ASSY,SEAT,P.RED | 16146X | 16146-5108-234 | 1 | ||
| SEAT-ASSY,DUAL,BLACK | 53001 | 53001-1957-MA | 1 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-1490-MA | 1 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 4 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
| COVER-ASSY,SEAT,C.L.GREEN | 16146V | 16146-5106-8N | 1 | CN | |
| COVER-ASSY,SEAT,G.SILVER | 16146W | 16146-5107-474 | 1 | CAUS |
| COVER-ASSY,SEAT,P.RED | |
| REF # | 16146X |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,DUAL,BLACK | |
| REF # | 53001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,SEAT,BLACK | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY,SEAT,C.L.GREEN | |
| REF # | 16146V |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-ASSY,SEAT,G.SILVER | |
| REF # | 16146W |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
