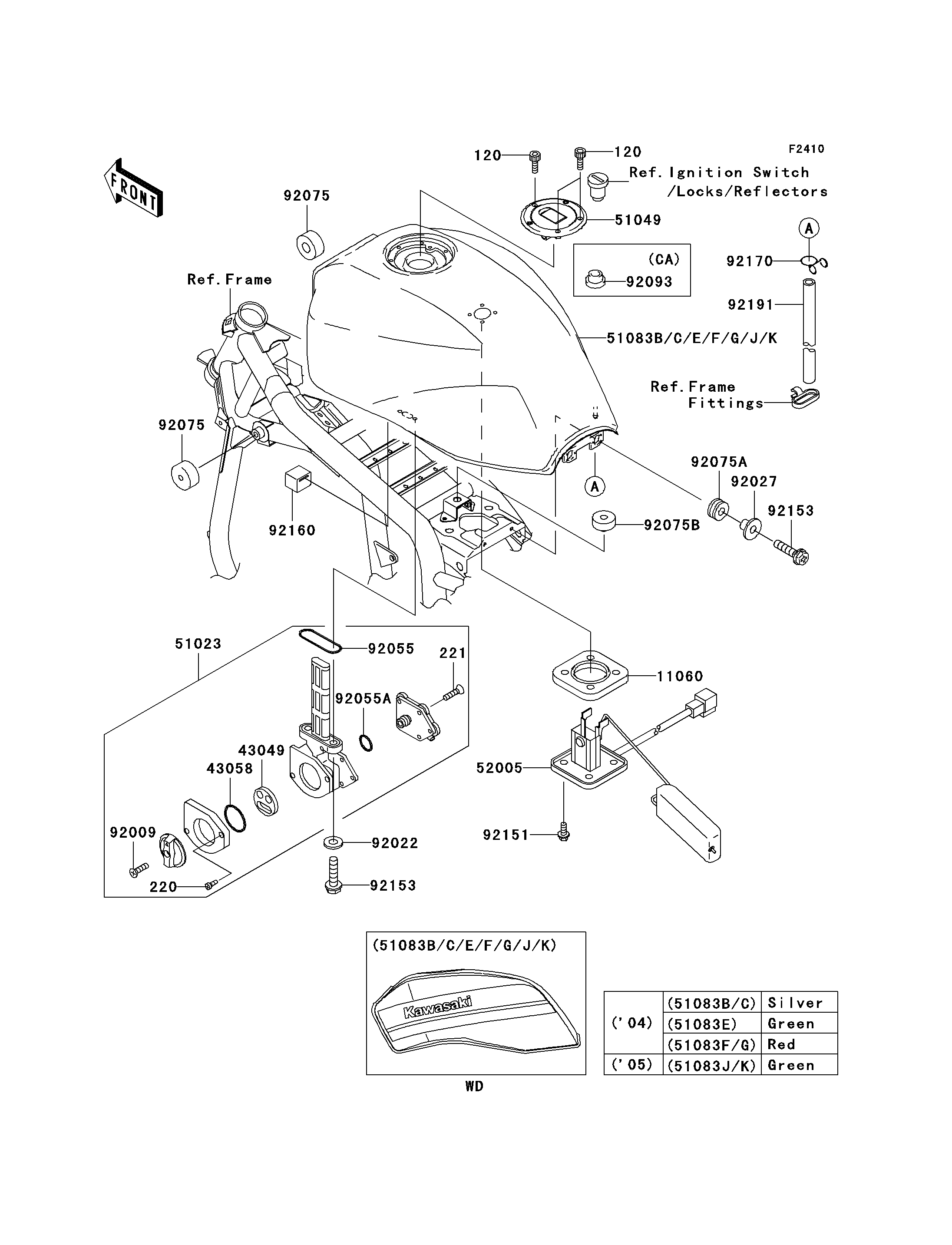

2004 ZRX1200R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060
43049
43049
43049
43058
43058
43058
51023
51023
51023
51049
51049
51049
52005
52005
52005
92009
92009
92009
92022
92022
92022
92027
92027
92027
92055
92055
92055
92055A
92055A
92055A
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92151
92151
92151
120
120
120
120
120
120
220
220
220
221
221
221
92153
92153
92153
92153
92153
92153
92160
92160
92160
92170
92170
92170
92191
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
PACKING,TAP VALVE 43049 43049-1075 1
RING,TAP LEVER 43058 43058-1083 1
TAP-ASSY,FUEL 51023 51023-1260 1
CAP-TANK,FUEL 51049 51049-0010 1
GAUGE,FUEL 52005 52005-1145 1
SCREW,4X12 92009 92009-1742 1
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O 92055A 92055-1649 1
DAMPER,FUEL TANK 92075 92075-101 2
DAMPER 92075A 92075-1690 2
DAMPER 92075B 92075-1737 1
BOLT,5X12 92151 92151-1599 4
BOLT-SOCKET 120 120S0516 3
SCREW-PAN-CROS 220 220B0308 2
SCREW-CSK-CROS,4X14 221 221B0414 5
BOLT,FLANGED,6X25 92153 92153-0514 4
DAMPER 92160 92160-1626 1
CLAMP,TUBE 92170 92170-1834 1
TUBE,7X12X600 92191 92191-1138 1
TANK-COMP-FUEL,G.SILVER 51083B 51083-5167-474 1 US
TANK-COMP-FUEL,G.SILVER 51083C 51083-5168-474 1 CA
TANK-COMP-FUEL,C.L.GREEN 51083E 51083-5171-8N 1 CN
TANK-COMP-FUEL,P.RED 51083F 51083-5172-234 1 CNUS
TANK-COMP-FUEL,P.RED 51083G 51083-5240-234 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
