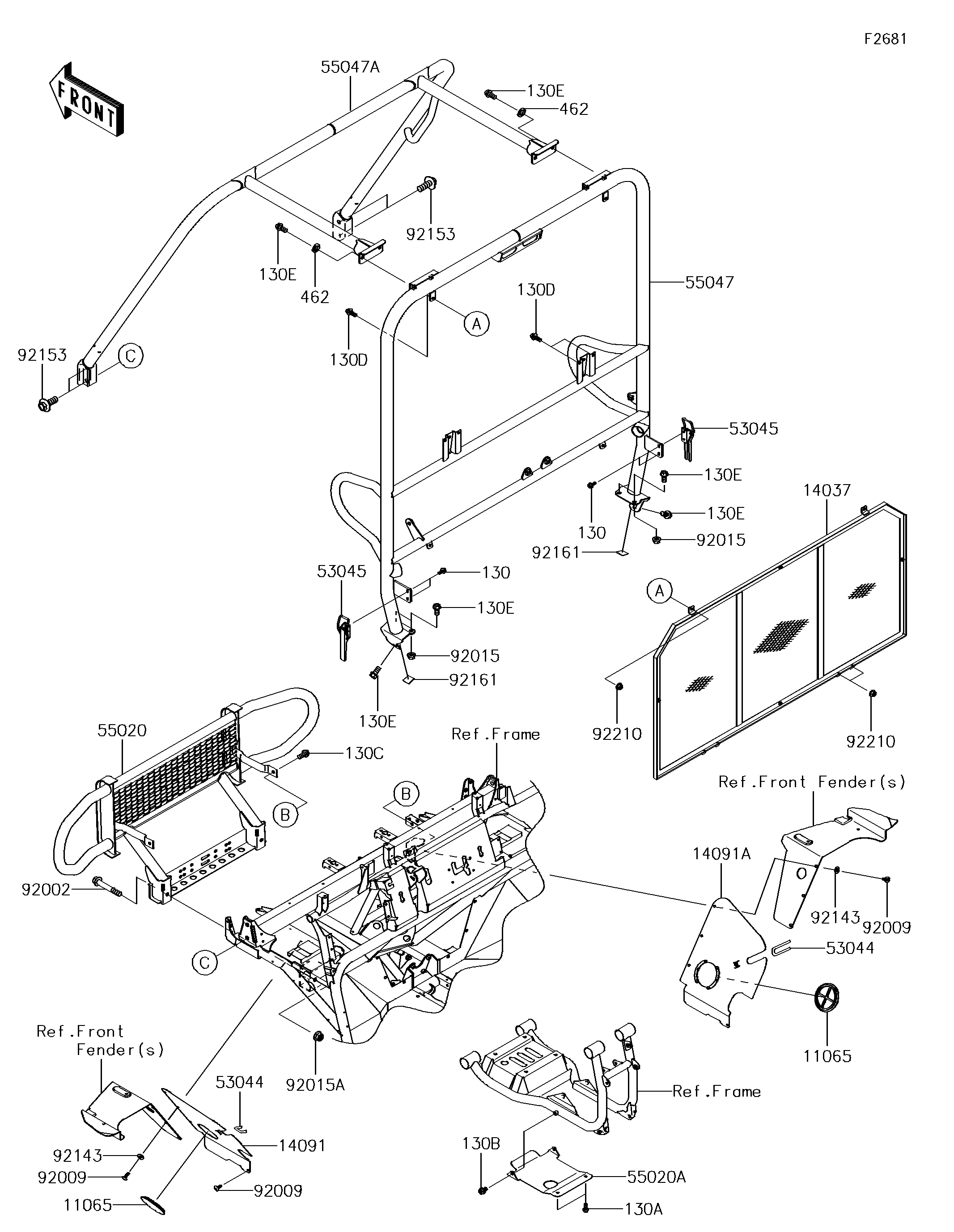

2018 MULE™ 4010 4x4 SE - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
14037
14091
14091A
53044
53044
53045
53045
55020
55020A
55047
55047A
92002
92009
92009
92009
92015
92015
92015A
92143
92143
92153
92153
92161
92161
92210
92210
130
130
130A
130B
130C
130D
130D
130E
130E
130E
130E
130E
130E
462
462
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-1053-6Z 2
SCREEN,REAR GUARD,T.BLACK 14037 14037-0016-388 1
COVER,FR,LH 14091 14091-1758 1
COVER,FR,RH 14091A 14091-1759 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-1063 2
GUARD,FR 55020 55020-0876 1
GUARD,GEAR CASE 55020A 55020-7506 1
BAR-COMP,T.BLACK 55047 55047-0354-388 1
BAR-COMP,FR,T.BLACK 55047A 55047-7514-388 1
BOLT,FLANGED,12X75 92002 92002-1661 2
SCREW,TAPPING,6X16 92009 92009-1166 8
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 2
COLLAR 92143 92143-1087 6
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 6
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,8X12 130B 130BA0812 2
BOLT-FLANGED,10X20 130C 130BA1020 2
BOLT-FLANGED,8X20 130D 130BB0820 6
BOLT-FLANGED,10X20 130E 130BB1020 10
WASHER-SPRING,10MM 462 462DB1000 4
