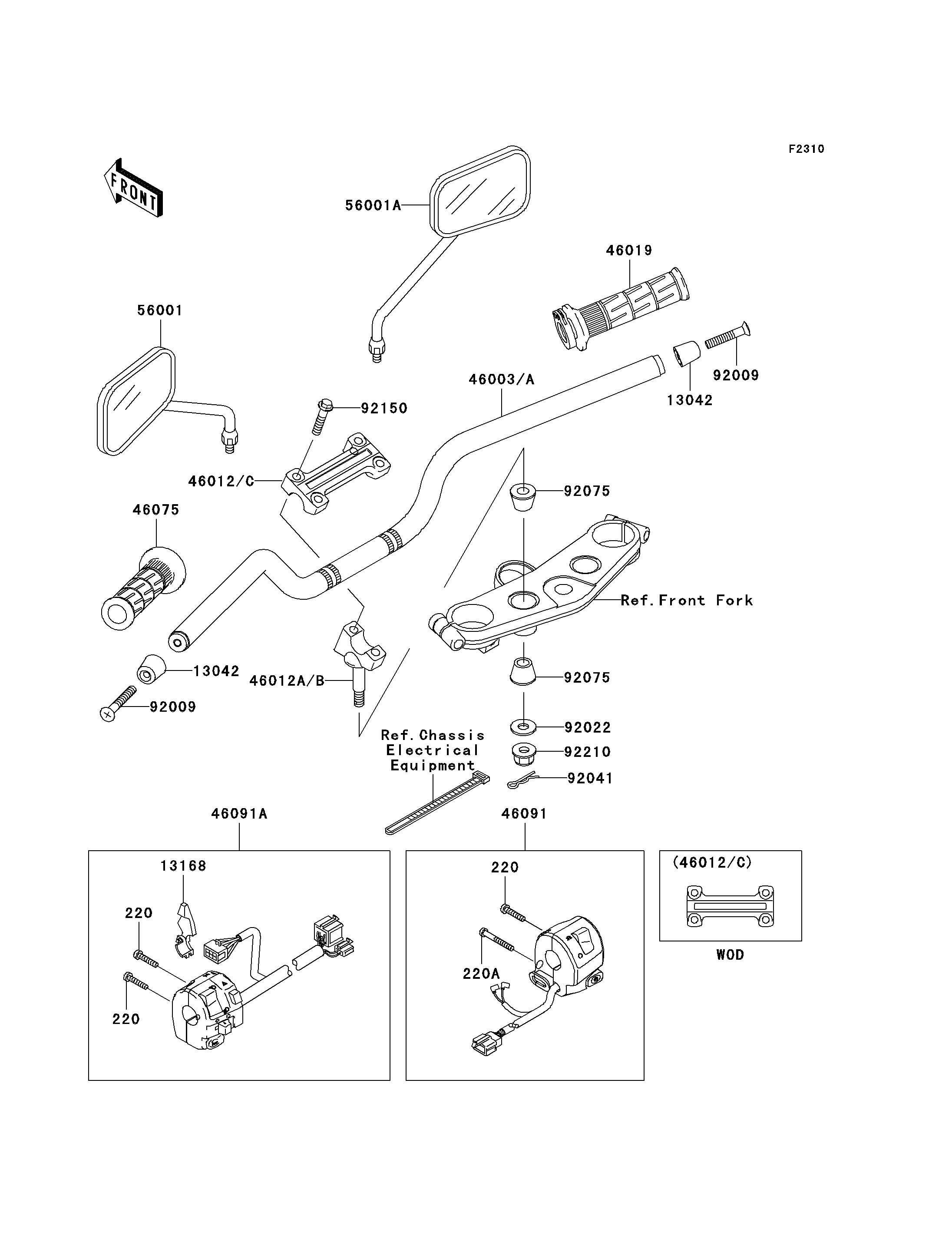

2004 ZRX1200R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
220
220
220
220A
13042
13042
13168
46003
46012B
46012C
46019
46075
46091
46091A
56001
56001A
92009
92009
92022
92041
92075
92075
92150
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220C0525 3
SCREW-PAN-CROS 220A 220C0540 1
WEIGHT,HANDLE 13042 13042-1005 2
LEVER,CHOKE 13168 13168-1516 1
HANDLE 46003 46003-0022 1
HOLDER-HANDLE,LWR 46012B 46012-1274 2
HOLDER-HANDLE,UPP 46012C 46012-1327 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1672 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1857 1
MIRROR-ASSY,LH 56001 56001-1564 1
MIRROR-ASSY,RH 56001A 56001-1565 1
SCREW,8X45 92009 92009-1257 2
WASHER,10.5X26X2.3,BLACK 92022 92022-1396 2
COTTER,8MM 92041 92041-1060 2
DAMPER,HANDLE HOLDER 92075 92075-039 4
BOLT,FLANGED,8X35 92150 92150-1835 4
NUT,LOCK,FLANGED,10MM 92210 92210-1081 2
