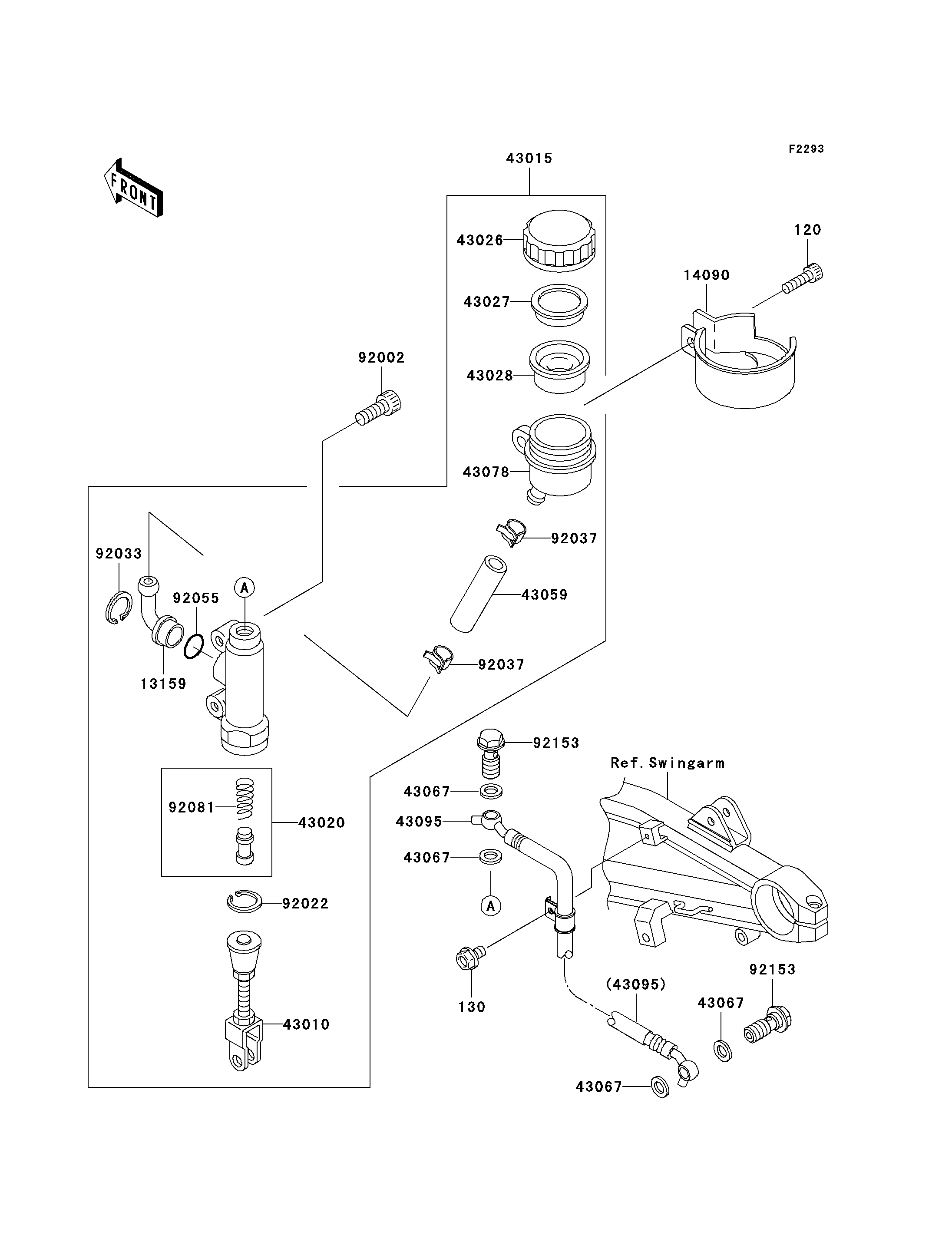

2004 ZRX1200R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
130
13159
14090
43010
43015
43020
43026
43027
43028
43059
43067
43067
43067
43067
43078
43095
92002
92022
92033
92037
92037
92055
92081
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0620 1
BOLT-FLANGED 130 130J0610 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14090 14090-1482 1
ROD-ASSY-BRAKE 43010 43010-1077 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1677 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1990 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1165 1
HOSE-BRAKE,RR 43095 43095-1200 1
BOLT,SOCKET,8X20 92002 92002-1178 2
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,OIL,L=23 92153 92153-0627 2
