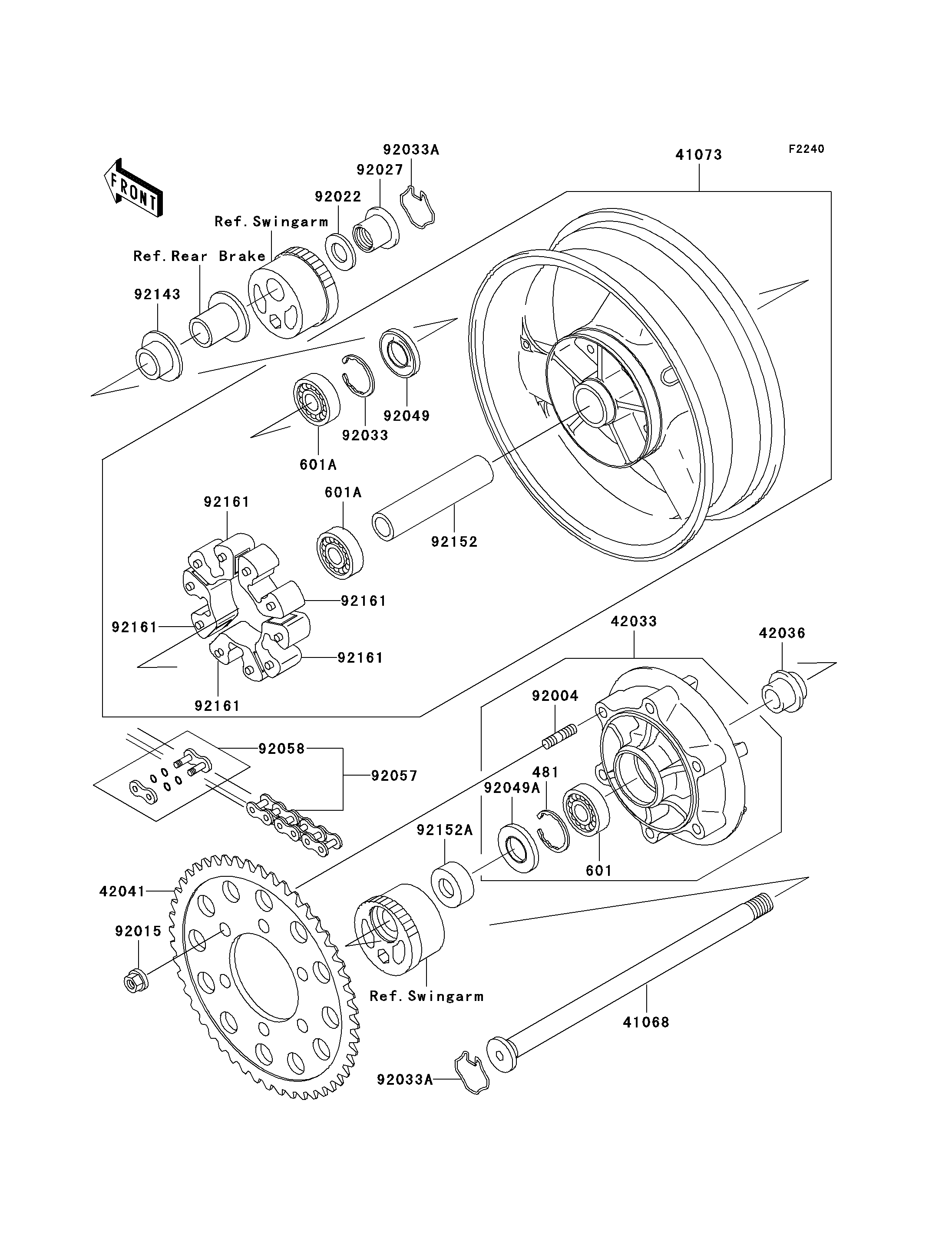

2004 ZRX1200R - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
481
601
601A
601A
41068
41073
42033
42036
42041
92004
92015
92022
92027
92033
92033A
92033A
92049
92049A
92057
92058
92143
92152
92152A
92161
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 481 481J5500 1
BEARING-BALL,#6006G 601 601B6006G 1
BEARING-BALL,#6304UUC3 601A 601B6304UU 2
AXLE,RR 41068 41068-1429 1
WHEEL-ASSY,RR,BLACK 41073 41073-0017-R2 1
COUPLING-ASSY,RR HUB 42033 42033-1203 1
SLEEVE,RR HUB COUPLING,L=22 42036 42036-1366 1
SPROCKET-HUB,42T 42041 42041-1387 1
STUD,10X19 92004 92004-1275 6
NUT,FLANGED,10MM 92015 92015-1335 6
WASHER,23X32X2.3 92022 92022-1618 1
COLLAR,RR AXLE,L=28 92027 92027-1810 1
RING-SNAP,52MM 92033 92033-1043 1
RING-SNAP,RR AXLE 92033A 92033-1156 2
SEAL-OIL,28X52X5 92049 92049-1061 1
SEAL-OIL,PJN40556 92049A 92049-1263 1
CHAIN,DRIVE,DID50VA8X110L 92057 92057-0067 1
JOINT-CHAIN,DRIVE 92058 92058-0004 1
COLLAR,RR AXLE,RH,L=18 92143 92143-1915 1
COLLAR,RR HUB 92152 92152-0129 1
COLLAR,RR AXLE,LH,L=19 92152A 92152-1280 1
DAMPER,SHOCK,RR HUB 92161 92161-1069 5
