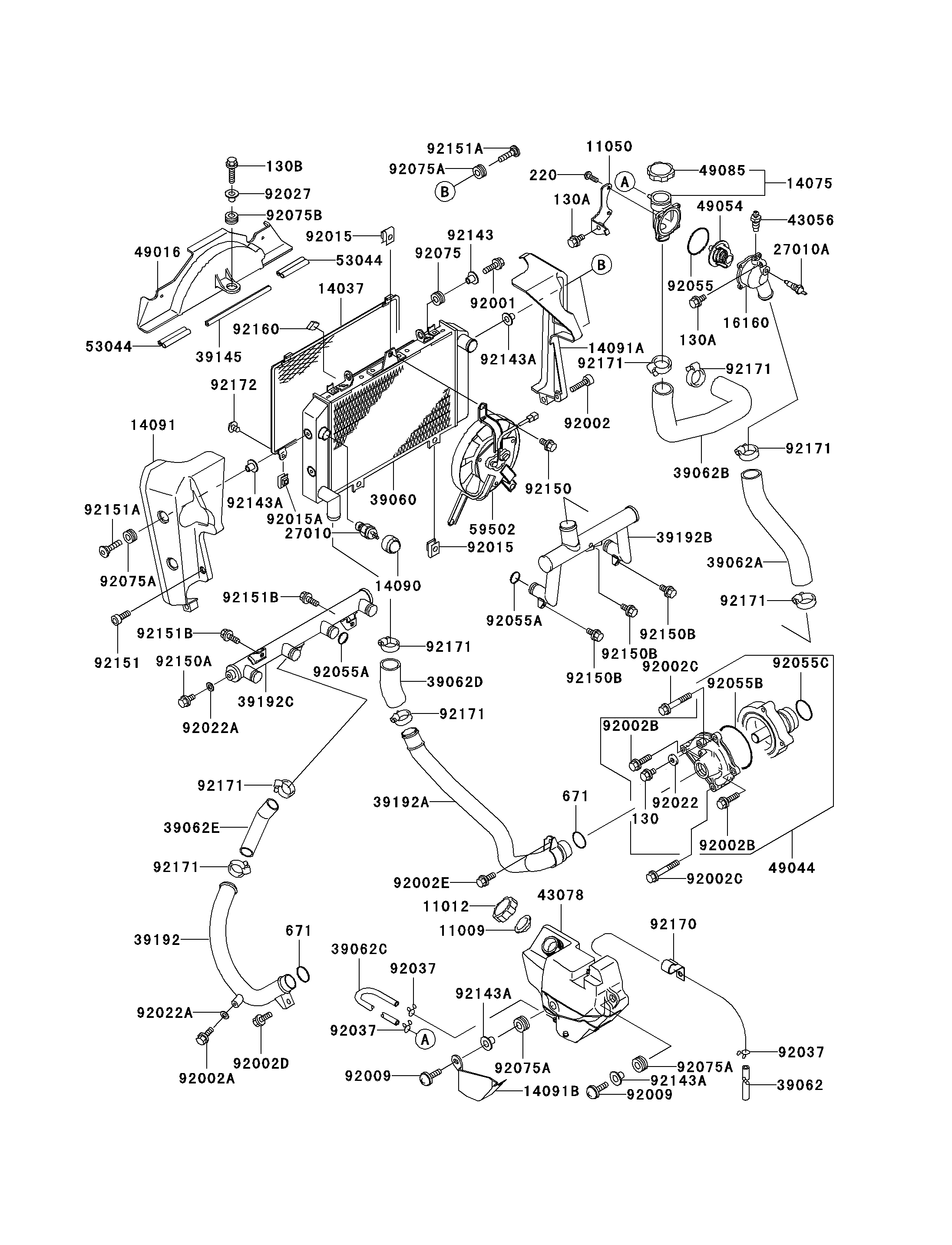

2004 ZRX1200R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11050
11050
14037
14037
14075
14075
14090
14090
14091
14091
14091A
14091A
14091B
14091B
16160
16160
27010
27010
27010A
27010A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39145
39145
39192
39192
39192A
39192A
39192B
39192B
39192C
39192C
43056
43056
43078
43078
49016
49016
49044
49044
49054
49054
49085
49085
53044
53044
53044
53044
59502
59502
92001
92001
92002
92002
92002A
92002A
92002B
92002B
92002B
92002B
92002C
92002C
92002C
92002C
92002D
92002D
92002E
92002E
92009
92009
92009
92009
130
130
130A
130A
130A
130A
130B
130B
220
220
671
671
671
671
92015
92015
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92027
92027
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055C
92055C
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92150
92150
92150A
92150A
92150B
92150B
92150B
92150B
92150B
92150B
92151
92151
92151A
92151A
92151A
92151A
92151B
92151B
92151B
92151B
92160
92160
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET 11050 11050-1118 1
SCREEN,RADIATOR 14037 14037-1235 1
CAP-ASSY 14075 14075-1068 1
COVER 14090 14090-1830 1
COVER,RADIATOR,LH 14091 14091-0046 1
COVER,RADIATOR,RH 14091A 14091-0047 1
COVER 14091B 14091-1384 1
BODY,THERMOSTAT 16160 16160-1117 1
SWITCH 27010 27010-1372 1
SWITCH 27010A 27010-1427 1
RADIATOR 39060 39060-1176 1
HOSE-COOLING,OVERFLOW 39062 39062-1533 1
HOSE-COOLING 39062A 39062-1704 1
HOSE-COOLING 39062B 39062-1705 1
HOSE-COOLING 39062C 39062-1714 1
HOSE-COOLING 39062D 39062-1888 1
HOSE-COOLING,PUMP-CYLINDER 39062E 39062-1897 1
TRIM-SEAL,L=175 39145 39145-1055 1
PIPE-WATER,PUMP-CYLINDER 39192 39192-1011 1
PIPE-WATER 39192A 39192-1139 1
PIPE-WATER 39192B 39192-1141 1
PIPE-WATER,INLET 39192C 39192-1146 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-0015 1
COVER-SEAL 49016 49016-1190 1
PUMP-WATER 49044 49044-1080 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
TRIM 53044 53044-1220 2
FAN-ASSY 59502 59502-1126 1
BOLT,6X20 92001 92001-1947 2
BOLT,SOCKET,6X25 92002 92002-1093 1
BOLT,6X16 92002A 92002-1099 1
BOLT,6X22 92002B 92002-1392 2
BOLT,6X40 92002C 92002-1566 2
BOLT,6X12 92002D 92002-1569 1
BOLT,6X16 92002E 92002-1571 1
SCREW,6X22,BLACK 92009 92009-1256 2
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED 130A 130J0612 2
BOLT-FLANGED,6X25 130B 130J0625 1
SCREW-PAN-CROS,5X14 220 220D0514 4
O RING,25MM 671 671B2525 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
WASHER,6MM 92022 92022-1976 1
WASHER,6.2X11X1 92022A 92022-304 2
COLLAR,L=13.1,BLACK 92027 92027-1450 1
CLAMP,TUBE 92037 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
RING-O 92055A 92055-1282 6
RING-O,WATER PUMP INSIDE 92055B 92055-1423 1
RING-O,33.2X2.4 92055C 92055-1424 1
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-1634 6
DAMPER 92075B 92075-1690 1
COLLAR 92143 92143-1353 2
COLLAR 92143A 92143-1962 6
BOLT,6X12 92150 92150-1186 3
BOLT,6X12 92150A 92150-1826 1
BOLT,6X12 92150B 92150-1841 3
BOLT,SOCKET,6X18 92151 92151-1210 1
BOLT,6X22 92151A 92151-1265 4
BOLT,6X12 92151B 92151-1997 2
DAMPER 92160 92160-1863 1
CLAMP 92170 92170-1767 1
CLAMP 92171 92171-0179 8
SCREW,TAPPING,6X12 92172 92172-0003 2
