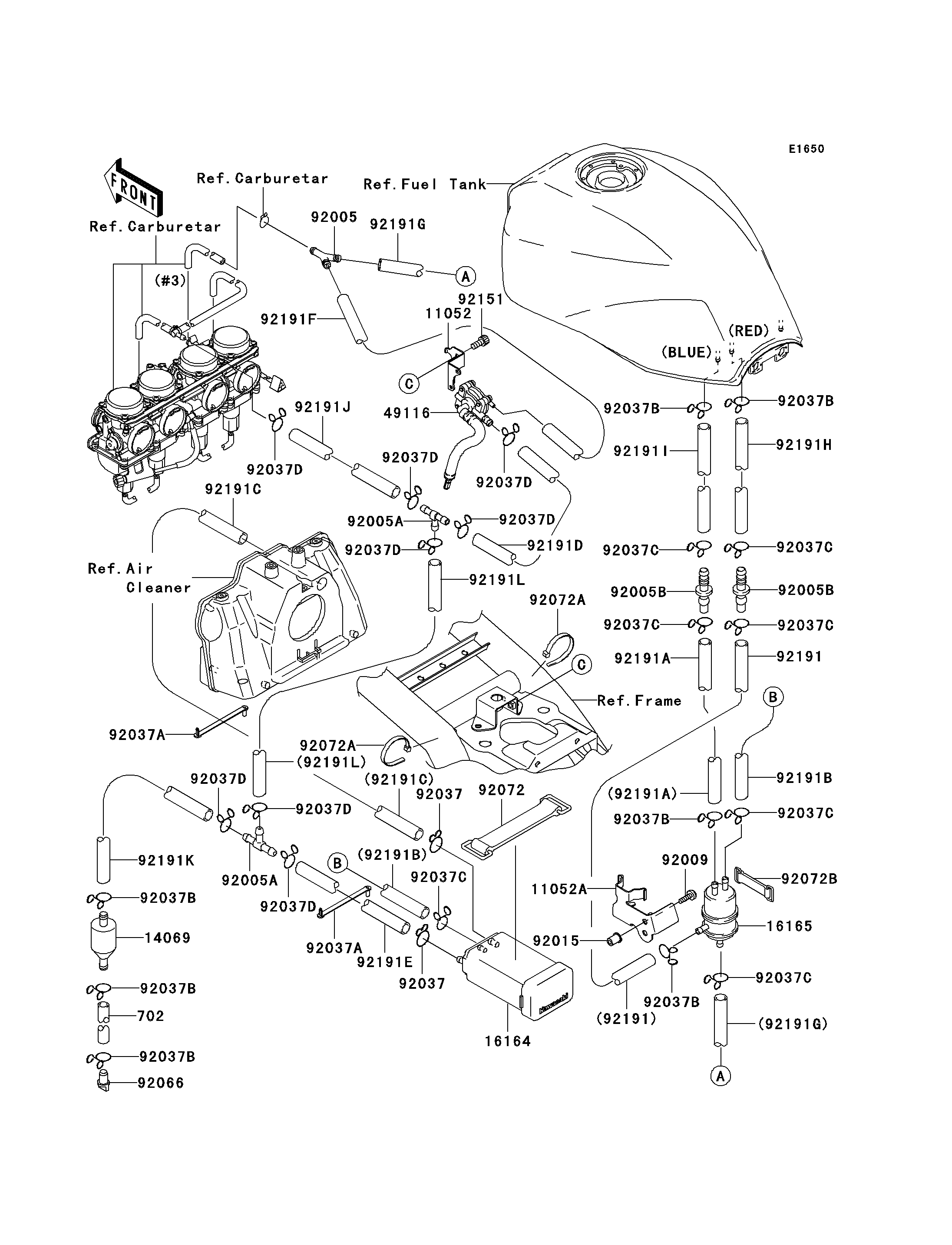

2004 ZRX1200R - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK DAMPER 11052 11052-1145 1 CA
BRACKET 11052A 11052-1146 1 CA
BREATHER 14069 14069-1051 1 CA
CANISTER 16164 16164-1070 1 CA
SEPARATOR 16165 16165-1070 1 CA
VALVE-ASSY 49116 49116-1187 1 CA
FITTING,TUBE 92005 92005-1034 1 CA
FITTING,T-TYPE 92005A 92005-1119 2 CA
FITTING 92005B 92005-1206 2 CA
SCREW,6X14 92009 92009-1662 2 CA
NUT 92015 92015-1700 2 CA
CLAMP,HOSE 92037 92037-1104 2 CA
CLAMP,SPEED,L=58 92037A 92037-1163 2 CA
CLAMP,TUBE 92037B 92037-147 7 CA
CLAMP 92037C 92037-1712 7 CA
CLAMP,TUBE 92037D 92037-1972 8 CA
PLUG,DRAIN 92066 92066-1211 1 CA
BAND,L=100 92072 92072-071 1 CA
BAND,L=250 92072A 92072-1237 2 CA
BAND,L=50 92072B 92072-1419 1 CA
BOLT,SOCKET,5X10 92151 92151-1212 1 CA
TUBE,SEPARATOR-TANK,RED 92191 92191-1581 1 CA
TUBE-RUBBER,7X10X60 702 702A0760 1 CA
TUBE,TANK-SEPARATOR,BULE 92191A 92191-1582 1 CA
TUBE,SEPARATOR-CANISTER,BULE 92191B 92191-1583 1 CA
TUBE,CANISTER-CLEANER,GREEN 92191C 92191-1584 1 CA
TUBE,FITTING-VALVE,YELLOW 92191D 92191-1585 1 CA
TUBE,FITTING-CANISTER,YELLOW 92191E 92191-1586 1 CA
TUBE,CARBURETOR-VALVE,WHITE 92191F 92191-1587 1 CA
TUBE,SEPARATOR-FITTING,WHITE 92191G 92191-1588 1 CA
TUBE,RED 92191H 92191-1649 1 CA
TUBE,BULE 92191I 92191-1650 1 CA
TUBE,7X12X165,YELLOW 92191J 92191-1651 1 CA
TUBE,7X11X430 92191K 92191-1652 1 CA
TUBE,7X12X235,YELLOW 92191L 92191-1670 1 CA
