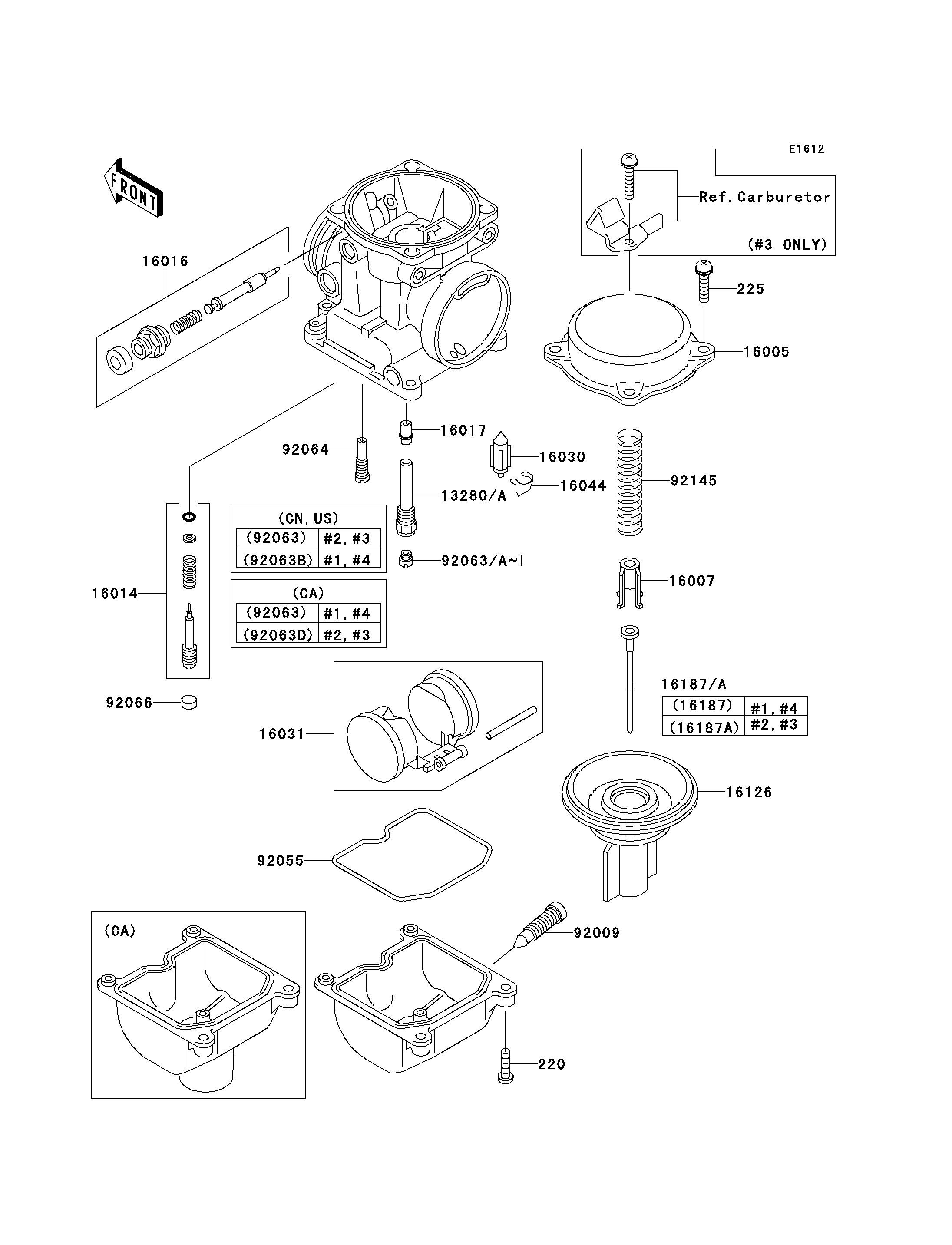

2004 ZRX1200R - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
16005
16005
16007
16007
16014
16014
16016
16016
16017
16017
16030
16030
16031
16031
16044
16044
16126
16126
16187
16187
16187A
16187A
92009
92009
92055
92055
92063
92063
92063A
92063A
92063C
92063C
92063E
92063E
220
220
225
225
92064
92064
92066
92066
92145
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP-CHAMBER,MIXING,27/60 16005 16005-1057 4
SEAT-SPRING,VALVE 16007 16007-1117 4
SCREW-PILOT AIR 16014 16014-1080 4
PLUNGER,STARTER 16016 16016-1090 4
JET-NEEDLE 16017 16017-1440 4
VALVE-FLOAT 16030 16030-1057 4
FLOAT 16031 16031-1077 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1338 4
NEEDLE-JET,NAGZ 16187 16187-1200 2
NEEDLE-JET,NAGU 16187A 16187-1201 2
SCREW,DRAIN,M6X0.75 92009 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1222 4
JET-MAIN,#95 92063 92063-1001 2
JET-MAIN,#90 92063A 92063-1003 AR (OPTION)
JET-MAIN,#92 92063C 92063-1004 AR CA (OPTION)
JET-MAIN,#98 92063E 92063-1005 AR CNUS (OPTION)
SCREW-PAN-CROS 220 220D0414 16
SCREW-PAN-WSP-CROS 225 225C0418 15
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,VACUUM VALVE 92145 92145-1064 4
HOLDER,NEEDLE JET 13280 13280-0101 4 CA
HOLDER,NEEDLE JET 13280A 13280-1054 4 CNUS
JET-MAIN,#92 92063B 92063-1004 2 CNUS
JET-MAIN,#98 92063D 92063-1005 2 CA
JET-MAIN,#100 92063F 92063-1006 AR CNUS (OPTION)
JET-MAIN,#100 92063G 92063-1008 AR CA (OPTION)
JET-MAIN,#88 92063H 92063-1024 AR CNUS (OPTION)
JET-MAIN,#102 92063I 92063-1115 AR CA (OPTION)
