Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

56030
56030
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56038
56038
56053A
56053A
56070
56070
56070A
56070A
56070B
56070B
56070C
56070C
56070F
56070F
56071
56071
56071A
56071A
56071B
56071B
56071D
56071D
56071E
56071E
56071F
56071F
56071N
56071N
56071O
56071O

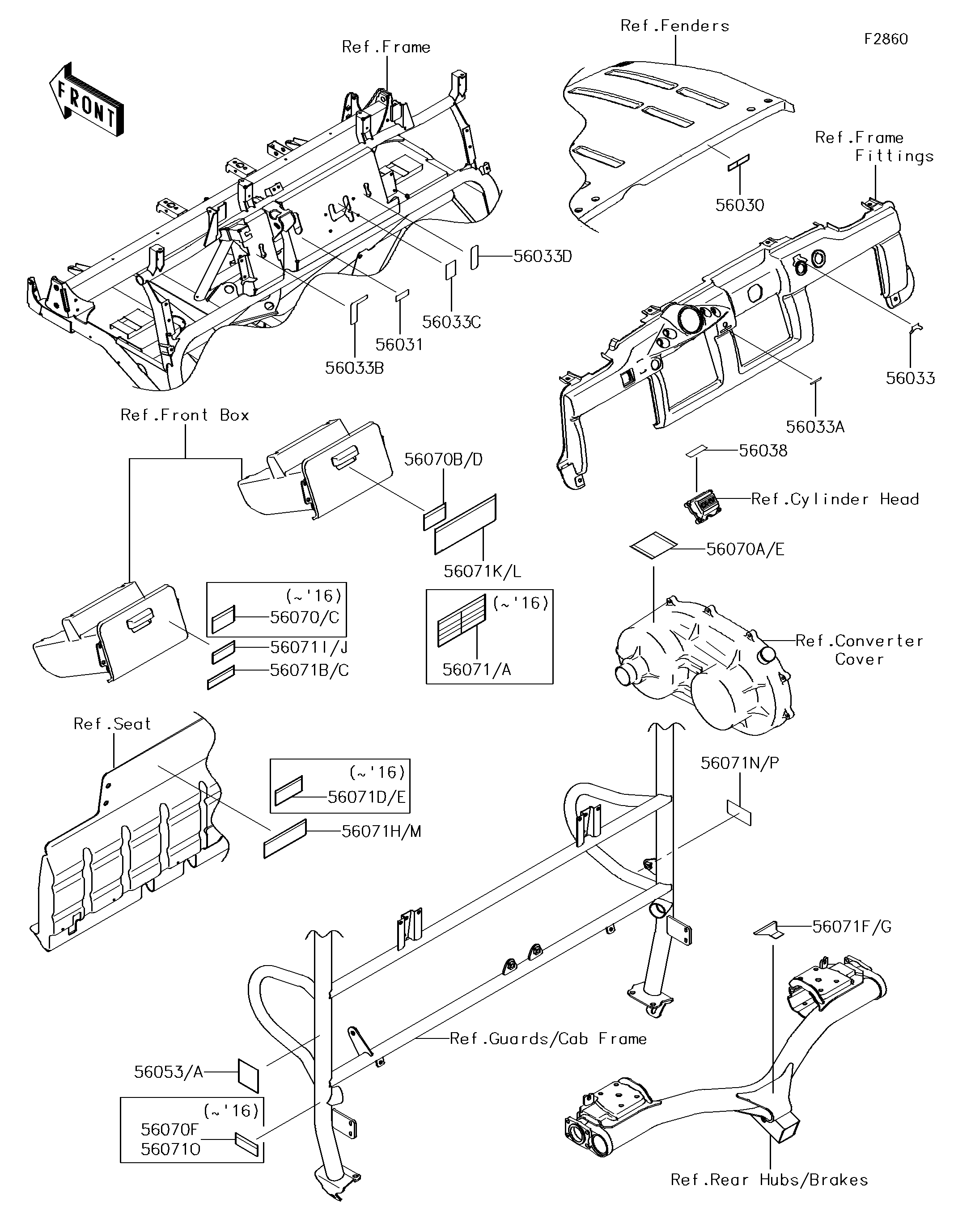

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,OPERATING HOOD 56030 56030-0267 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0212 1
LABEL-MANUAL,POWER STEERING 56033A 56033-0213 1
LABEL-MANUAL,DIFF MODE 56033B 56033-1183 1
LABEL-MANUAL,SHIFT 56033C 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033D 56033-1187 1
LABEL-BRAND 56038 56038-2782 1
LABEL-SPECIFICATION,TIRE 56053A 56053-7534 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL,OFF-HIGHWAY 56070C 56070-0055 1 CN
LABEL-WARNING,BED RAISED 56070F 56070-7515 1
LABEL-WARNING,GENERAL 56071 56071-0101 1
LABEL-WARNING,GENERAL 56071A 56071-0109 1 CN
LABEL-WARNING,SHIFT CAUTION 56071B 56071-0128 1
LABEL-WARNING,CARGO BED 56071D 56071-0136 1
LABEL-WARNING,CARGO BED 56071E 56071-0138 1 CN
LABEL-WARNING,TRAILER HITCH 56071F 56071-0332 1
LABEL-WARNING,GASOLINE 56071N 56071-7501 1
LABEL,BED RAISED 56071O 56071-7504 1 CN
