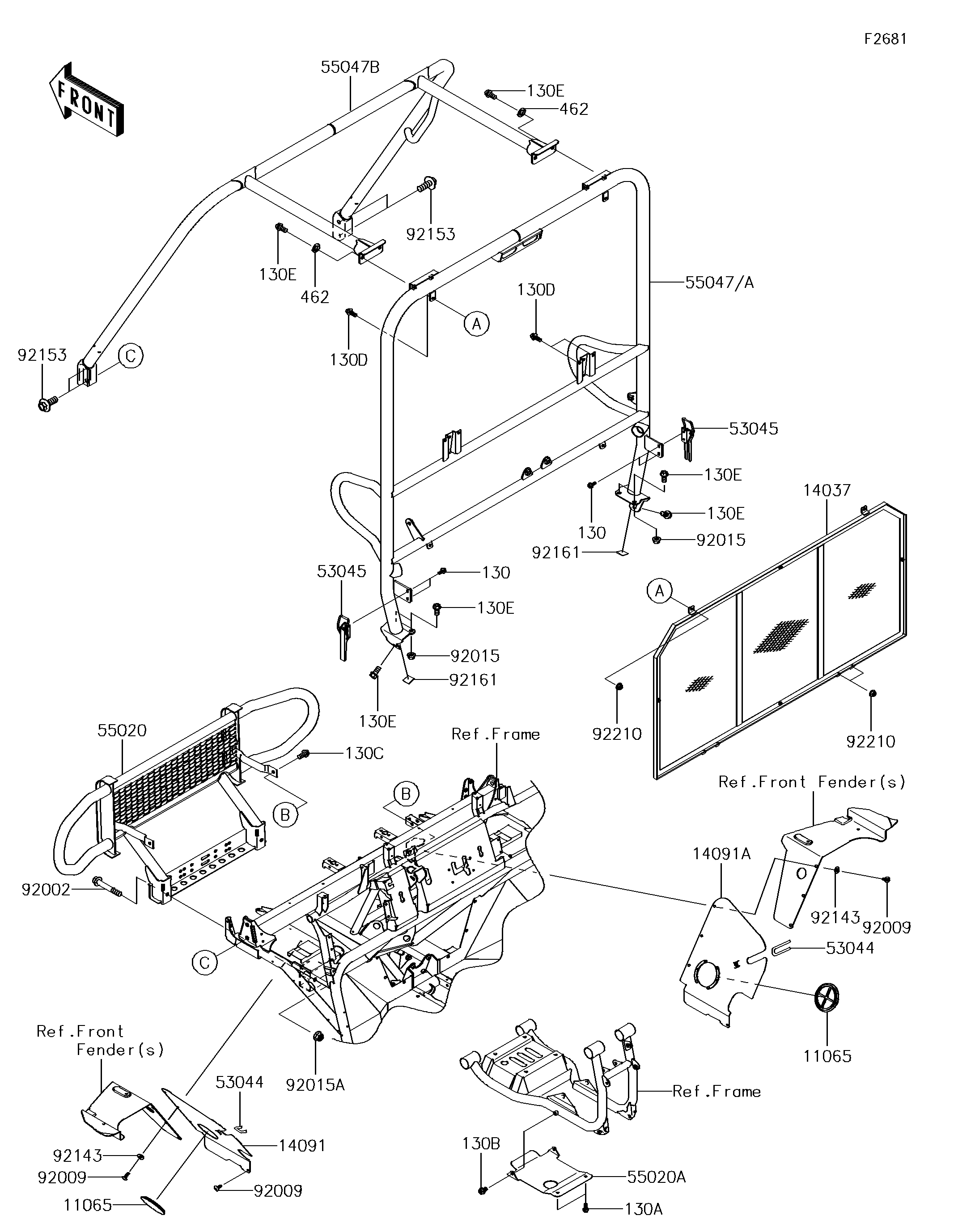

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-1053-6Z 2
SCREEN,REAR GUARD,T.BLACK 14037 14037-0016-388 1
COVER,FR,LH 14091 14091-1758 1
COVER,FR,RH 14091A 14091-1759 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-1063 2
GUARD,FR 55020 55020-0876 1
GUARD,GEAR CASE 55020A 55020-7506 1
BAR-COMP,T.BLACK 55047 55047-0330-388 1
BAR-COMP,FR,T.BLACK 55047B 55047-7514-388 1
BOLT,FLANGED,12X75 92002 92002-1661 2
SCREW,TAPPING,6X16 92009 92009-1166 8
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 2
COLLAR 92143 92143-1087 6
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 6
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,8X12 130B 130BA0812 2
BOLT-FLANGED,10X20 130C 130BA1020 2
BOLT-FLANGED,8X20 130D 130BB0820 6
BOLT-FLANGED,10X20 130E 130BB1020 10
WASHER-SPRING,10MM 462 462DB1000 4
