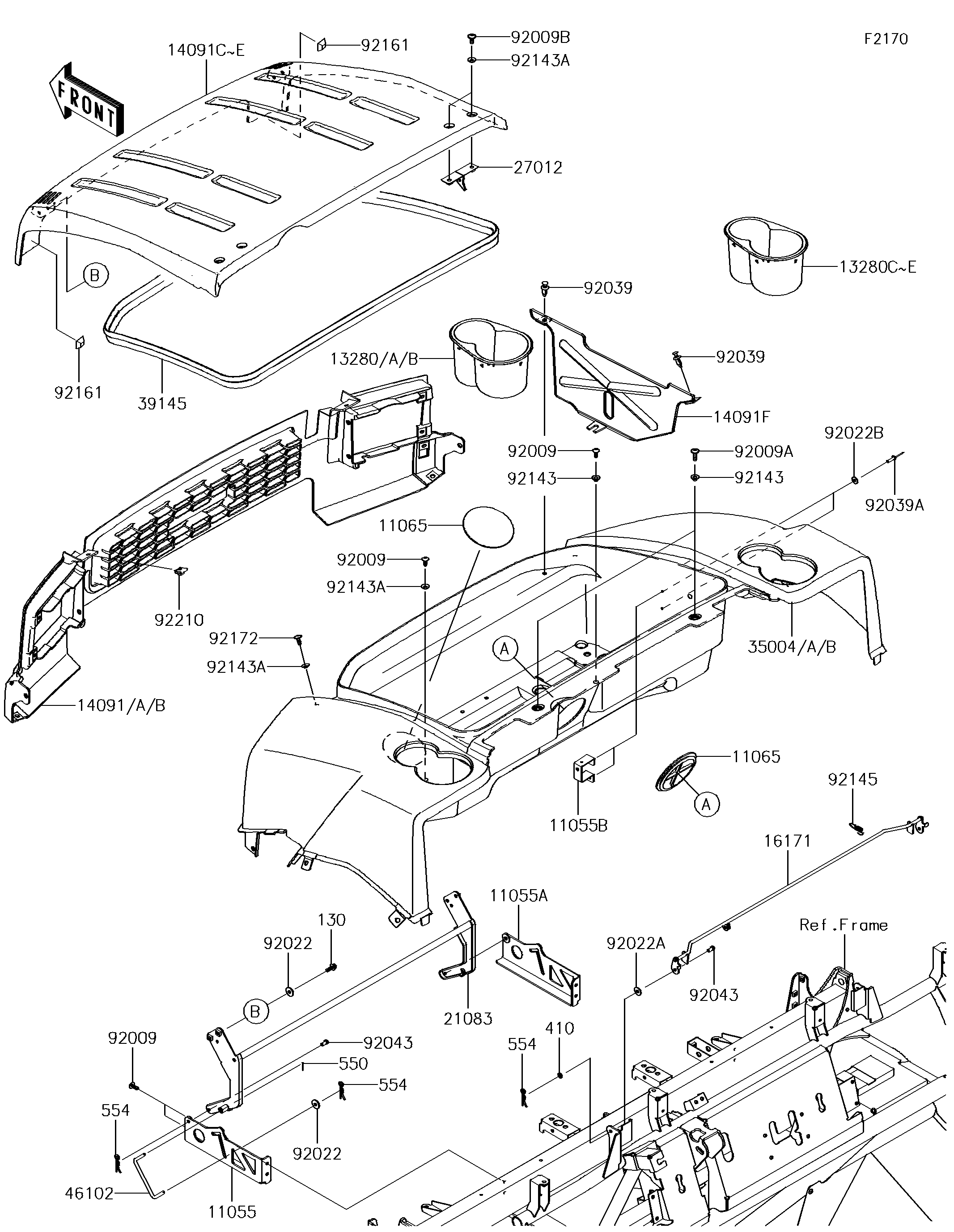

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HINGE,LH 11055 11055-0037 1
BRACKET,HINGE,RH 11055A 11055-0038 1
BRACKET,RESERVOIR TANK 11055B 11055-0124 1
CAP,F.BLACK 11065 11065-1053-6Z 2
HOLDER,CUP HOLDER,LH,D.R.RED 13280 13280-0265-16L 1
HOLDER,CUP HOLDER,LH,W.GREEN 13280A 13280-0265-286 1
HOLDER,CUP HOLDER,RH,D.R.RED 13280C 13280-0266-16L 1
HOLDER,CUP HOLDER,RH,W.GREEN 13280D 13280-0266-286 1
COVER,FRONT GRILL,D.R.RED 14091 14091-0818-16L 1
COVER,FRONT GRILL,W.GREEN 14091A 14091-0818-286 1
COVER,FRONT FENDER,D.R.RED 14091C 14091-0829-16L 1
COVER,FRONT FENDER,W.GREEN 14091D 14091-0829-286 1
COVER,RESERVOIR TANK 14091F 14091-1715 1
LINK 16171 16171-0015 1
ARM,HOOD 21083 21083-0051 1
HOOK,HOOD 27012 27012-0119 2
FENDER-FRONT,CNT,D.R.RED 35004 35004-0096-16L 1
FENDER-FRONT,CNT,W.GREEN 35004A 35004-0096-286 1
TRIM-SEAL,L=2350 39145 39145-0032 1
ROD 46102 46102-0103 1
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X16 92009B 92009-1621 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 5
WASHER,7X18X1.2 92022A 92022-1545 2
WASHER,4.3X12.5X1 92022B 92022-1949 2
RIVET 92039 92039-0776 2
RIVET 92039A 92039-1150 2
PIN,6X9 92043 92043-1626 4
COLLAR 92143 92143-1057 3
COLLAR 92143A 92143-1087 7
SPRING 92145 92145-0215 1
DAMPER,FR HOOD 92161 92161-0790 2
SCREW,TAPPING,6X20 92172 92172-0488 2
NUT,LEAF SPRING,6MM 92210 92210-0624 2
BOLT-FLANGED,6X16 130 130BA0616 4
WASHER-PLAIN-SMALL 410 410AA0600 2
PIN-COTTER,1.6X15 550 550AA1615 1
PIN-SNAP,1.2X21.2 554 554DA0600 5
