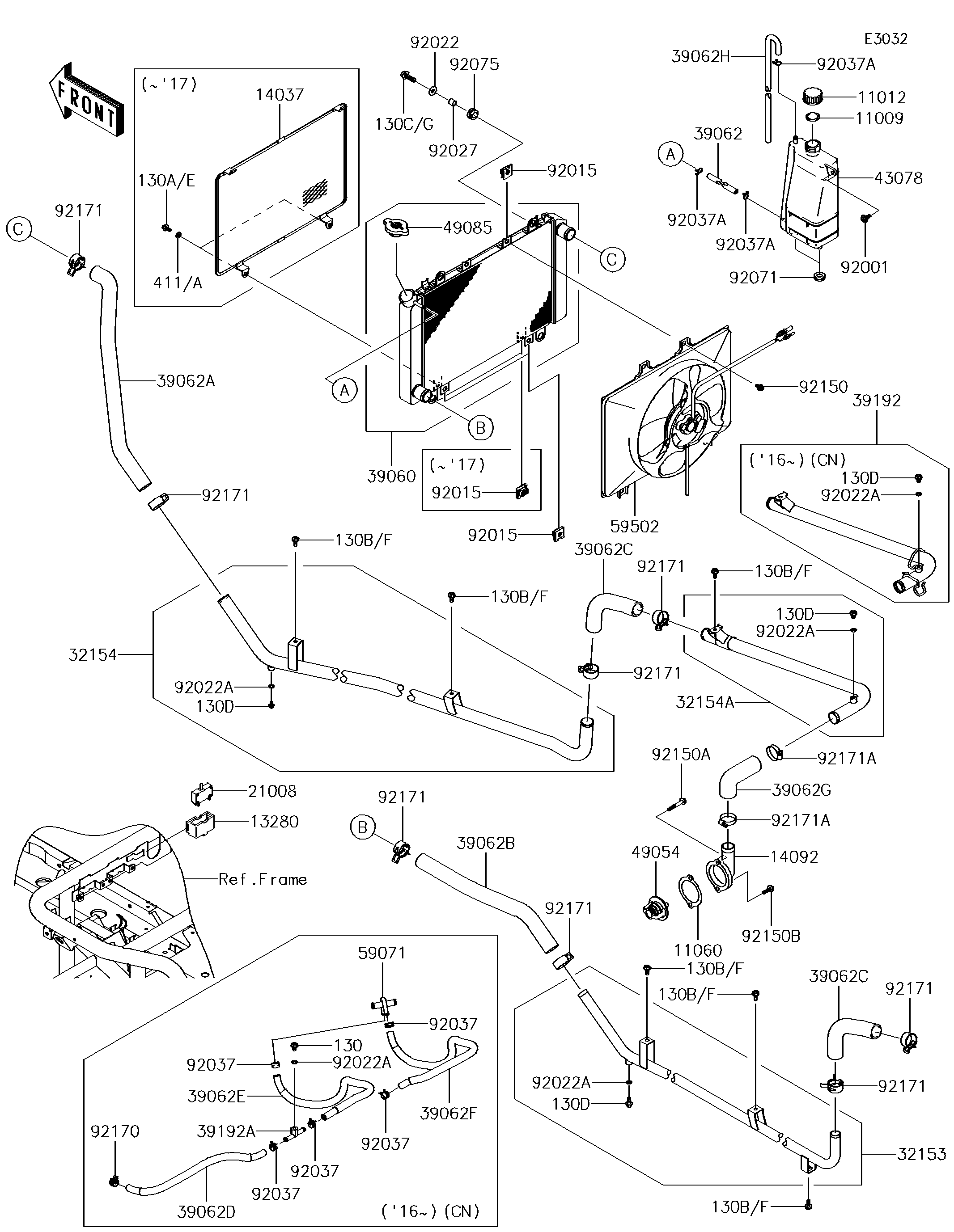

2014 MULE™ 4010 4x4 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11060
11060
13280
13280
14037
14037
14092
14092
21008
21008
32153
32153
32154
32154
32154A
32154A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062C
39062C
39062G
39062G
39062H
39062H
43078
43078
49054
49054
49085
49085
59502
59502
92001
92001
92015
92015
92015
92015
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92027
92027
92037A
92037A
92037A
92037A
92037A
92037A
92071
92071
92075
92075
92150
92150
92150A
92150A
92150B
92150B
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
130D
130D
130D
130D
130D
130D
130D
130D
130E
130E
130F
130F
130F
130F
130F
130F
130F
130F
130F
130F
130F
130F
130G
130G
411A
411A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
GASKET,THERMOSTAT COVER 11060 11060-2084 1
HOLDER,BREAKER 13280 13280-0082 1
SCREEN 14037 14037-0088 1
COVER,THERMOSTAT 14092 14092-1140 1
BREAKER,FAN MOTOR 21008 21008-0001 1
PIPE,LH 32153 32153-1326 1
PIPE,RH,FR 32154 32154-1656 1
PIPE,RH,RR 32154A 32154-1658 1 _________________________________________US
RADIATOR 39060 39060-0066 1
HOSE-COOLING,5.5X10.5X650 39062 39062-0266 1
HOSE-COOLING,PIPE-RAD. 39062A 39062-0282 1
HOSE-COOLING,RAD.-LH PIPE 39062B 39062-0283 1
HOSE-COOLING,PIPE-E/G 39062C 39062-0286 2
HOSE-COOLING 39062G 39062-1832 1
HOSE-COOLING,DRAIN 39062H 39062-7507 1
RESERVOIR 43078 43078-0062 1
THERMOSTAT 49054 49054-2056 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FAN-ASSY 59502 59502-0042 1
BOLT,W/P,6X16 92001 92001-1860 1
NUT 92015 92015-1487 6
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4
WASHER,6.2X11X1 92022A 92022-304 3 _________________________________________US
COLLAR,8.8X12X10.7 92027 92027-102 4
CLAMP,TUBE 92037A 92037-147 3
GROMMET 92071 92071-1115 2
DAMPER 92075 92075-294 4
BOLT,6X12 92150 92150-1186 4
BOLT,6X40 92150A 92150-2230 1
BOLT,6X20 92150B 92150-2231 1
CLAMP,COOLING HOSE 92171 92171-0060 8
CLAMP 92171A 92171-0179 2
BOLT-FLANGED,6X10 130D 130BB0610 3
BOLT-FLANGED,6X12 130E 130BB0612 2
BOLT-FLANGED,6X14 130F 130BB0614 6
BOLT-FLANGED,8X25 130G 130BB0825 4
WASHER-PLAIN,6.5X13X1 411A 411AB0600 2
