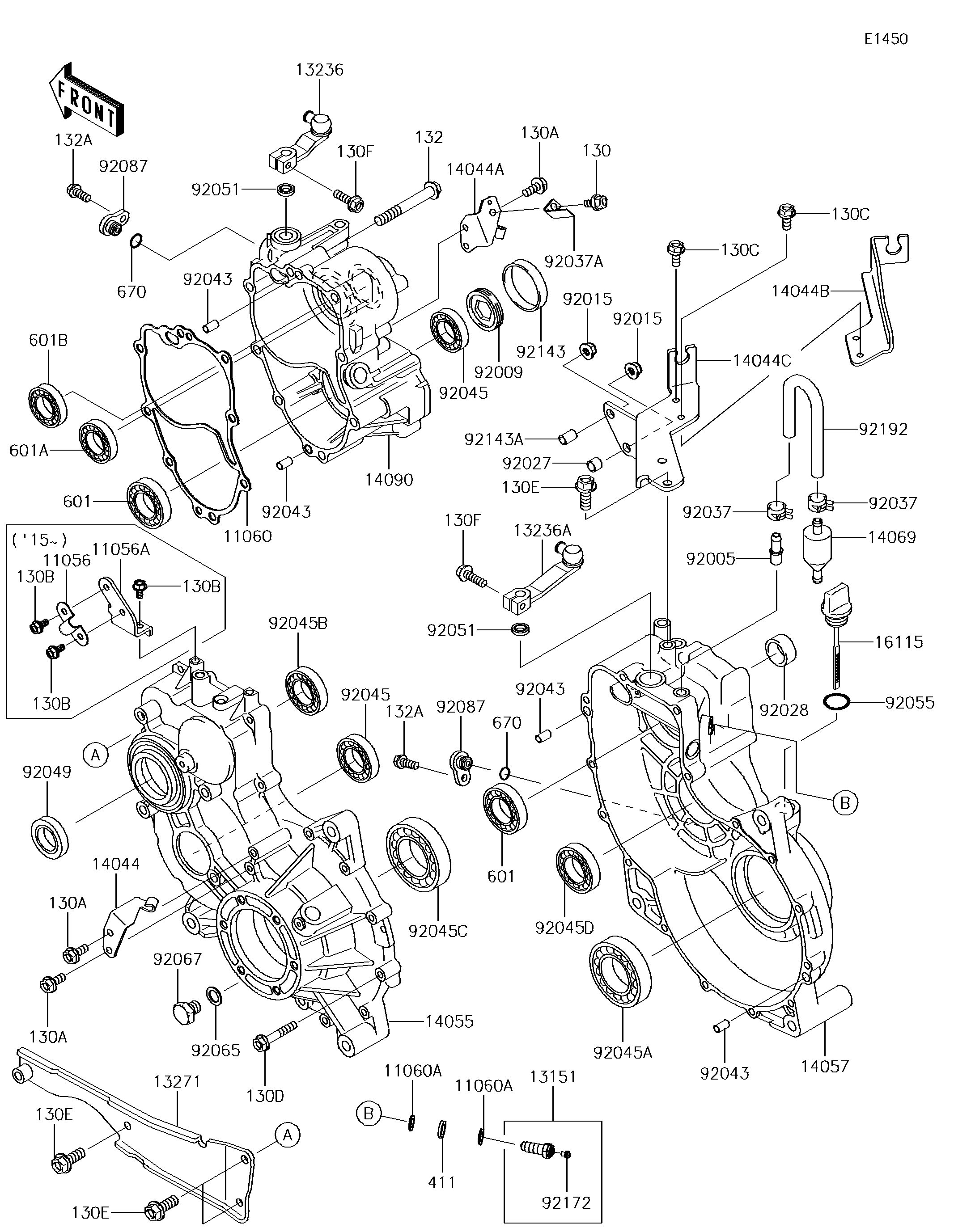

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE COVER 11060 11060-1310 1
GASKET 11060A 11060-1966 2
SWITCH-COMP 13151 13151-1093 1
LEVER-COMP 13236 13236-1363 1
LEVER-COMP 13236A 13236-1372 1
PLATE 13271 13271-1604 1
HOLDER-CABLE 14044 14044-0003 1
HOLDER-CABLE 14044A 14044-0004 1
HOLDER-CABLE,HI/LOW 14044B 14044-1075 1
HOLDER-CABLE 14044C 14044-1098 1
CASE-GEAR,LH 14055 14055-0035 1
CASE-COMP-GEAR,RH 14057 14057-0011 1
BREATHER 14069 14069-1051 1
COVER,GEAR CASE,HI/LOW 14090 14090-1238 1
CAP-OIL FILLER 16115 16115-1060 1
FITTING,BREATHER 92005 92005-1127 1
SCREW,55MM 92009 92009-1290 1
NUT,8MM 92015 92015-1432 2
COLLAR,8.8X12X9 92027 92027-1568 1
BUSHING,23X30X13 92028 92028-132 1
CLAMP,TUBE 92037 92037-1505 2
CLAMP 92037A 92037-1680 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-BALL,TMB304CCM 92045 92045-1142 2
BEARING-BALL,6010CM 92045A 92045-1162 1
BEARING-BALL,62/28 92045B 92045-1207 1
BEARING-BALL,6210CM 92045C 92045-1213 1
BEARING-BALL,TMB205JR2 92045D 92045-1285 1
SEAL-OIL,TC28X47X7 92049 92049-1297 1
SEAL-OIL,TB13225.5 92051 92051-005 2
RING-O,20X3 92055 92055-2185 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN,10X12 92067 92067-001 1
BUSHING-METER GEAR 92087 92087-1058 2
COLLAR,66X70X11 92143 92143-1120 1
COLLAR,8.5X15X9 92143A 92143-1642 1
SCREW,4X6 92172 92172-0717 1
TUBE 92192 92192-1643 1
BOLT-FLANGED,6X10 130 130AA0610 1
BOLT-FLANGED,6X14 130A 130AA0614 4
BOLT-FLANGED,6X14 130C 130BA0614 2
BOLT-FLANGED,6X35 130D 130BA0635 15
BOLT-FLANGED,8X20 130E 130BA0820 5
BOLT-FLANGED,6X20 130F 130CA0620 2
BOLT-FLANGED-SMALL,8X60 132 132BA0860 8
BOLT-FLANGED-SMALL,6X14 132A 132BB0614 2
WASHER-PLAIN,10MM 411 411AA1000 1
BEARING-BALL,#6007C3 601 601B6007 2
BEARING-BALL,#6303C3 601A 601B6303 1
BEARING-BALL 601B 601B6303U 1
O RING,10MM 670 670D1510 2
