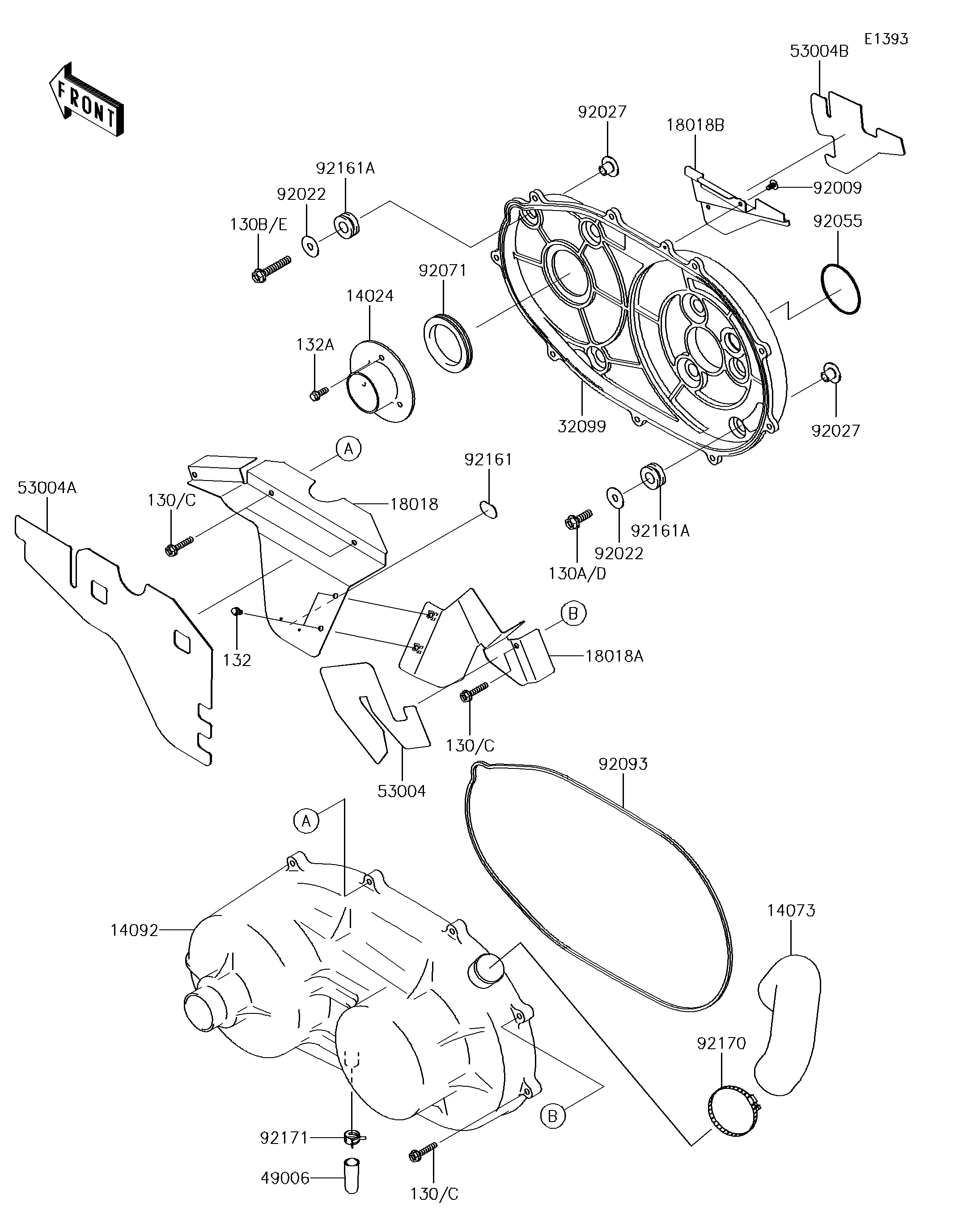

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FAN 14024 14024-1554 1
DUCT,EXHAUST 14073 14073-0234 1
COVER,BELT CONVERTER 14092 14092-1035 1
PLATE-HEAT GUARD 18018 18018-0019 1
PLATE-HEAT GUARD 18018A 18018-0020 1
PLATE-HEAT GUARD 18018B 18018-0021 1
CASE,BELT CONVERTER 32099 32099-0730 1
BOOT 49006 49006-1351 1
MAT 53004 53004-0052 1
MAT 53004A 53004-0053 1
MAT 53004B 53004-0054 1
SCREW,TAPPING,5X10 92009 92009-1332 2
WASHER,8.5X26X0.8 92022 92022-101 7
COLLAR 92027 92027-4015 7
RING-O,CRANKCASE SIDE 92055 92055-1395 1
GROMMET,CONVERTER CASE 92071 92071-1212 1
SEAL,BELT CONVERTER COVER 92093 92093-0582 1
DAMPER 92161 92161-0406 1
DAMPER 92161A 92161-1484 7
CLAMP 92170 92170-1764 1
CLAMP 92171 92171-1277 1
BOLT-FLANGED,6X30 130C 130BB0630 9
BOLT-FLANGED,8X25 130D 130BB0825 6
BOLT-FLANGED,8X45 130E 130BB0845 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 3
