Parts Diagrams |

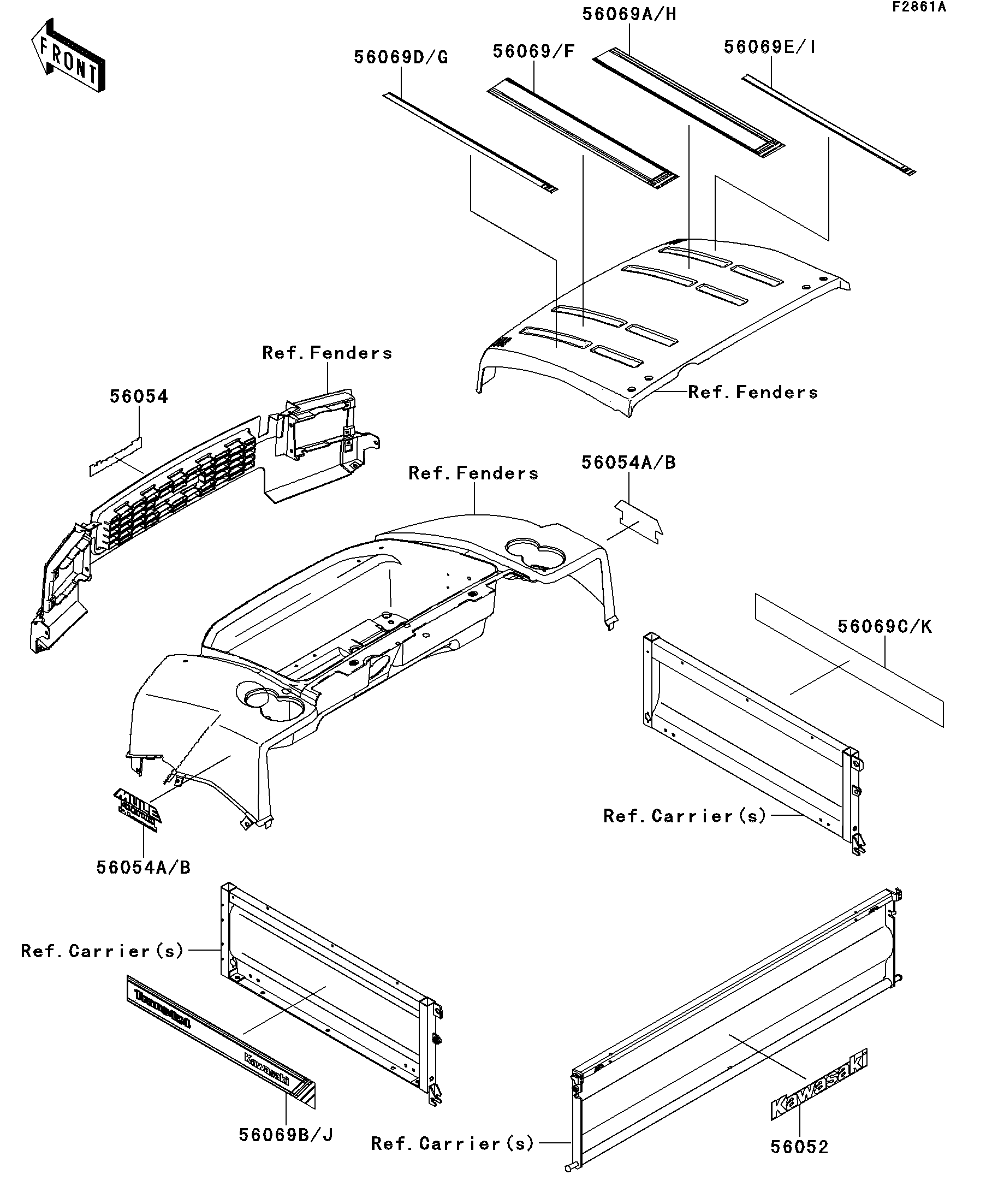

2013 MULE™ 4010 TRANS4x4® - Decals(RCFA/RDFA)
56052
56054
56054A
56054A
56054B
56054B
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-1809 | 1 | ||
| MARK,FRONT GRILL,KAWASAKI | 56054 | 56054-0216 | 1 | ||
| MARK,FR FENDER,MULE4010F.I. | 56054A | 56054-0783 | 2 | ||
| MARK,FR FENDER,MULE4010F.I. | 56054B | 56054-1048 | 2 | ||
| PATTERN,FR FENDER,LH | 56069 | 56069-1180 | 1 | ||
| PATTERN,FR FENDER,RH | 56069A | 56069-1181 | 1 | ||
| PATTERN,SIDE PLATE,RR,LH | 56069B | 56069-1182 | 1 | ||
| PATTERN,SIDE PLATE,RR,RH | 56069C | 56069-1183 | 1 | ||
| PATTERN,FR FENDER COVER,LH | 56069D | 56069-1310 | 1 | ||
| PATTERN,FR FENDER COVER,RH | 56069E | 56069-1311 | 1 | ||
| PATTERN,FR FENDER,LH | 56069F | 56069-2445 | 1 | ||
| PATTERN,FR FENDER COVER,LH | 56069G | 56069-2446 | 1 | ||
| PATTERN,FR FENDER,RH | 56069H | 56069-2447 | 1 | ||
| PATTERN,FR FENDER COVER,RH | 56069I | 56069-2448 | 1 | ||
| PATTERN,TAIL GATE,LH | 56069J | 56069-2449 | 1 | ||
| PATTERN,TAIL GATE,RH | 56069K | 56069-2450 | 1 |
| MARK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FRONT GRILL,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,MULE4010F.I. | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,MULE4010F.I. | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE PLATE,RR,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE PLATE,RR,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,LH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,RH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,LH | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,RH | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL GATE,LH | |
| REF # | 56069J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL GATE,RH | |
| REF # | 56069K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
