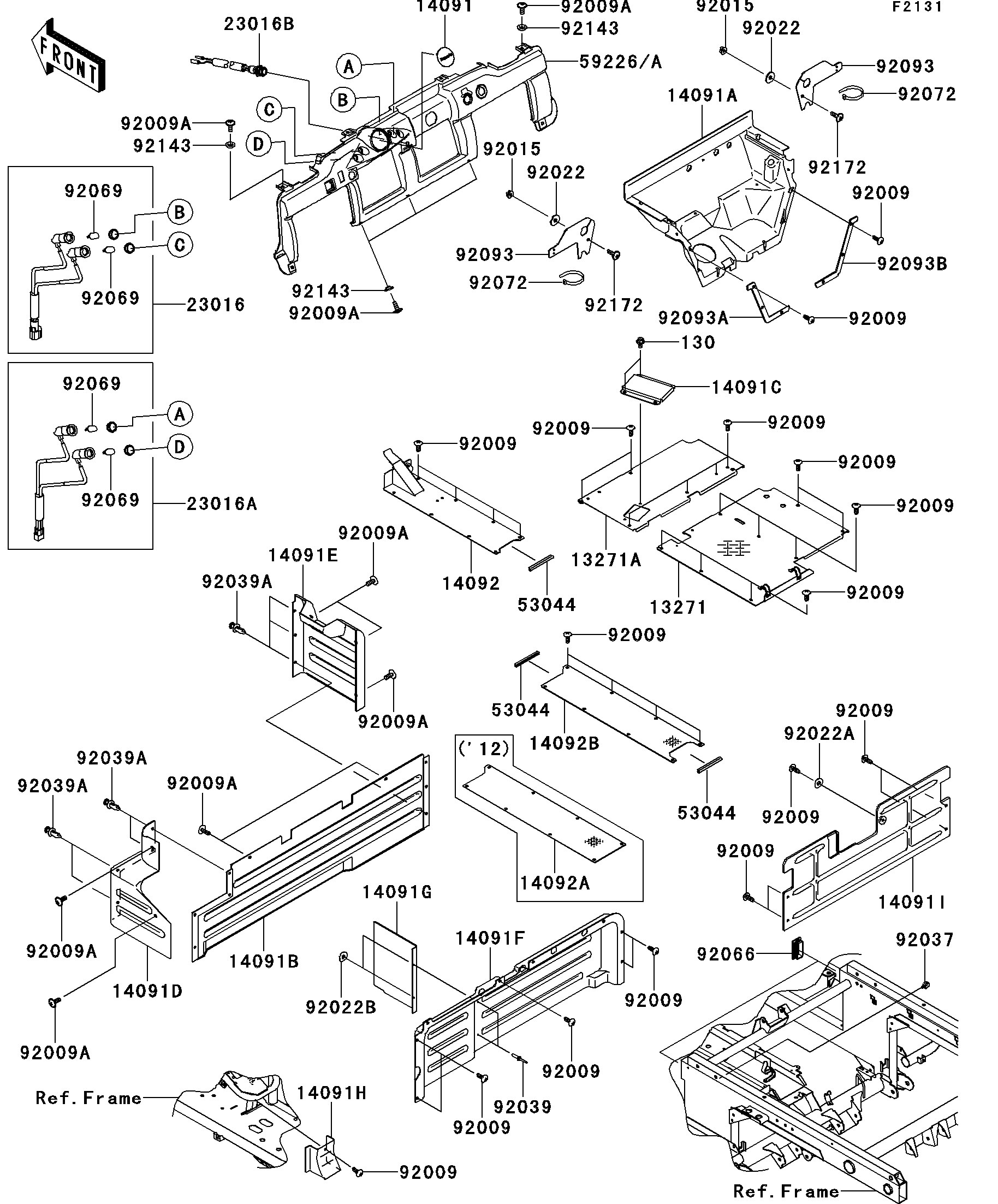

2012 Mule 4010 Trans4x4 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
13271
13271A
14091
14091A
14091B
14091C
14091D
14091E
14091F
14091G
14091H
14091I
14092
14092A
23016
23016A
23016B
53044
53044
53044
59226
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92022
92022
92022A
92022B
92037
92039
92039A
92039A
92039A
92066
92069
92069
92069
92069
92072
92072
92093
92093
92093A
92093B
92143
92143
92143
92172
92172
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FLOOR,RH 13271 13271-7602 1
PLATE,FLOOR,RH 13271A 13271-7606 1
COVER,SPEEDOMETER,F.BLACK 14091 14091-0929-6Z 1
COVER,FLOOR 14091A 14091-1378 1
COVER,FRONT SEAT,CNT 14091B 14091-7531 1
COVER 14091C 14091-7536 1
COVER,FRONT SEAT,LH 14091D 14091-7541 1
COVER,FRONT SEAT,RH 14091E 14091-7542 1
COVER,FRONT SEAT,RR,LWR 14091F 14091-7549 1
COVER,FUEL TANK 14091G 14091-7550 1
COVER,PARKING CABLE 14091H 14091-7551 1
COVER,REAR SEAT,LWR 14091I 14091-7557 1
COVER,FLOOR,CNT,FR 14092 14092-0832 1
COVER,FLOOR,CNT,RR 14092A 14092-0833 1
LAMP-ASSY,PARKING&WATER TEMP 23016 23016-0035 1
LAMP-ASSY,DFI&OIL PRESSURE 23016A 23016-0036 1
LAMP-ASSY,LED 23016B 23016-0046 1
TRIM,L=111 53044 53044-7502 3
PANEL-CONTROL,F.BLACK 59226 59226-0012-6Z 1
SCREW,TAPPING,6X16 92009 92009-1166 50
SCREW,6X16 92009A 92009-1621 12
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
WASHER,7X18X1.2 92022A 92022-1545 1
WASHER,4.3X12.5X1 92022B 92022-1949 2
CLAMP,HOSE 92037 92037-1827 1
RIVET 92039 92039-1150 2
RIVET 92039A 92039-1229 7
PLUG 92066 92066-7505 2
BULB,12V 1.7W,T10 92069 92069-1059 4
BAND,L=368.3 92072 92072-3872 2
SEAL,LOWER COVER 92093 92093-0181 2
SEAL,FRONT FENDER,LH 92093A 92093-1293 1
SEAL,FRONT FENDER,RH 92093B 92093-1294 1
COLLAR 92143 92143-1087 5
SCREW,6X18 92172 92172-0002 2
BOLT-FLANGED,6X10 130 130BA0610 2
