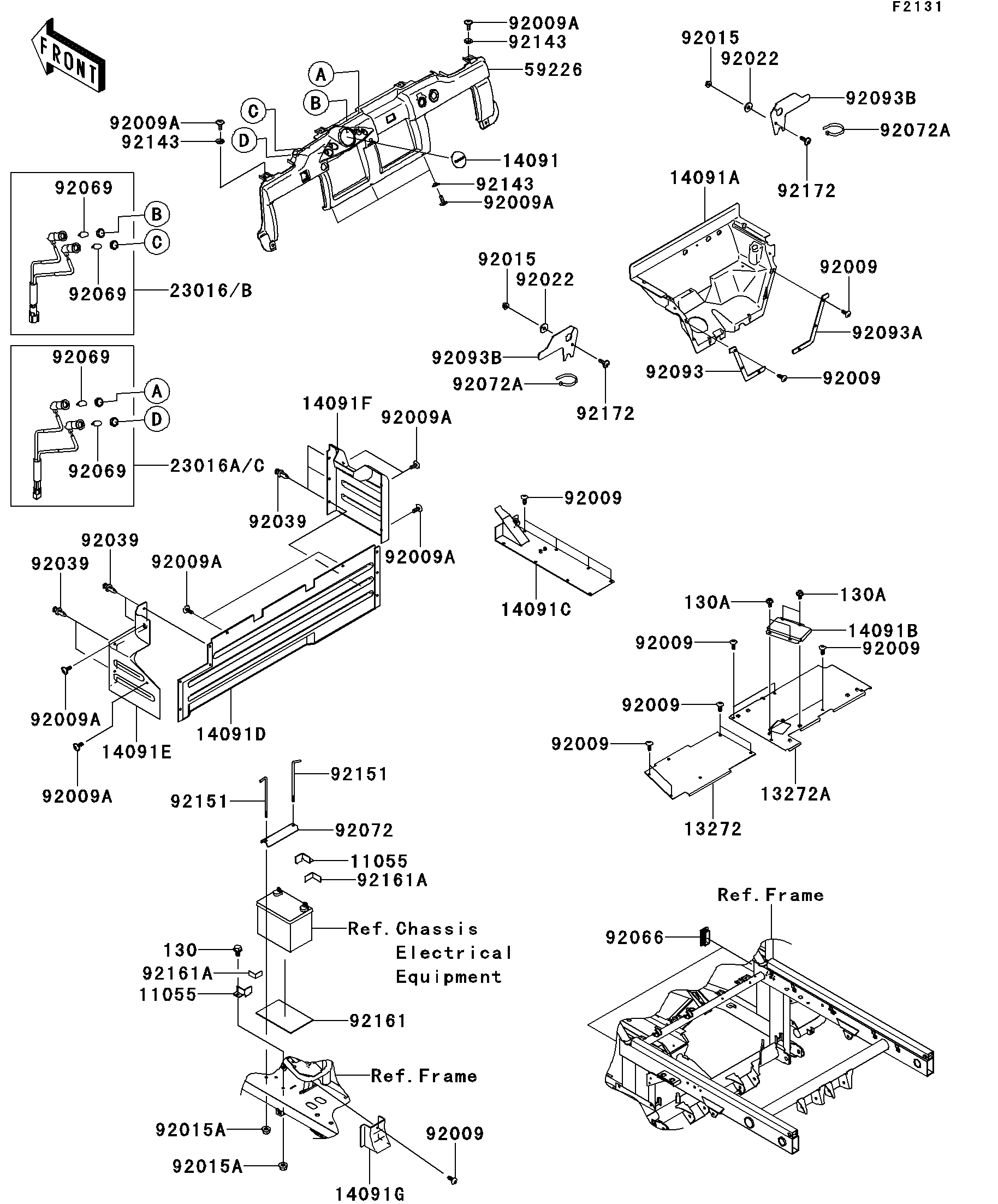

2011 MULE™ 4000 - Frame Fittings(P9F-PBF)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
13272
13272A
14091
14091A
14091B
14091C
14091D
14091E
14091F
14091G
23016B
23016C
59226
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92039
92039
92039
92066
92069
92069
92069
92069
92072
92072A
92072A
92093
92093A
92093B
92093B
92143
92143
92143
92151
92151
92161
92161A
92161A
92172
92172
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0433 2
PLATE 13272 13272-0284 1
PLATE 13272A 13272-0285 1
COVER,SPEEDOMETER,F.BLACK 14091 14091-0929-6Z 1
COVER,FLOOR 14091A 14091-1378 1
COVER 14091B 14091-1666 1
COVER,FLOOR,CNT,FR 14091C 14091-1692 1
COVER,FRONT SEAT,CNT 14091D 14091-7531 1
COVER,FRONT SEAT,LH 14091E 14091-7541 1
COVER,FRONT SEAT,RH 14091F 14091-7542 1
COVER,PARKING CABLE 14091G 14091-7551 1
LAMP-ASSY,PARKING&WATER TEMP 23016B 23016-0035 1
LAMP-ASSY,DFI&OIL PRESSURE 23016C 23016-0036 1
PANEL-CONTROL,F.BLACK 59226 59226-0012-6Z 1
SCREW,TAPPING,6X16 92009 92009-1166 23
SCREW,6X16 92009A 92009-1621 12
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,FLANGED,8MM 92015A 92015-1406 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
RIVET 92039 92039-1229 7
PLUG 92066 92066-7505 2
BULB,12V 1.7W,T10 92069 92069-1059 4
BAND 92072 92072-0112 1
BAND,L=368.3 92072A 92072-3872 2
SEAL,FRONT FENDER,LH 92093 92093-1293 1
SEAL,FRONT FENDER,RH 92093A 92093-1294 1
SEAL,LOWER COVER 92093B 92093-1295 2
COLLAR 92143 92143-1087 5
BOLT,BATTERY 92151 92151-1897 2
DAMPER 92161 92161-0578 1
DAMPER 92161A 92161-0580 2
SCREW,6X18 92172 92172-0002 2
BOLT-FLANGED,8X14 130 130BA0814 2
BOLT-FLANGED,6X10 130A 130BB0610 4
