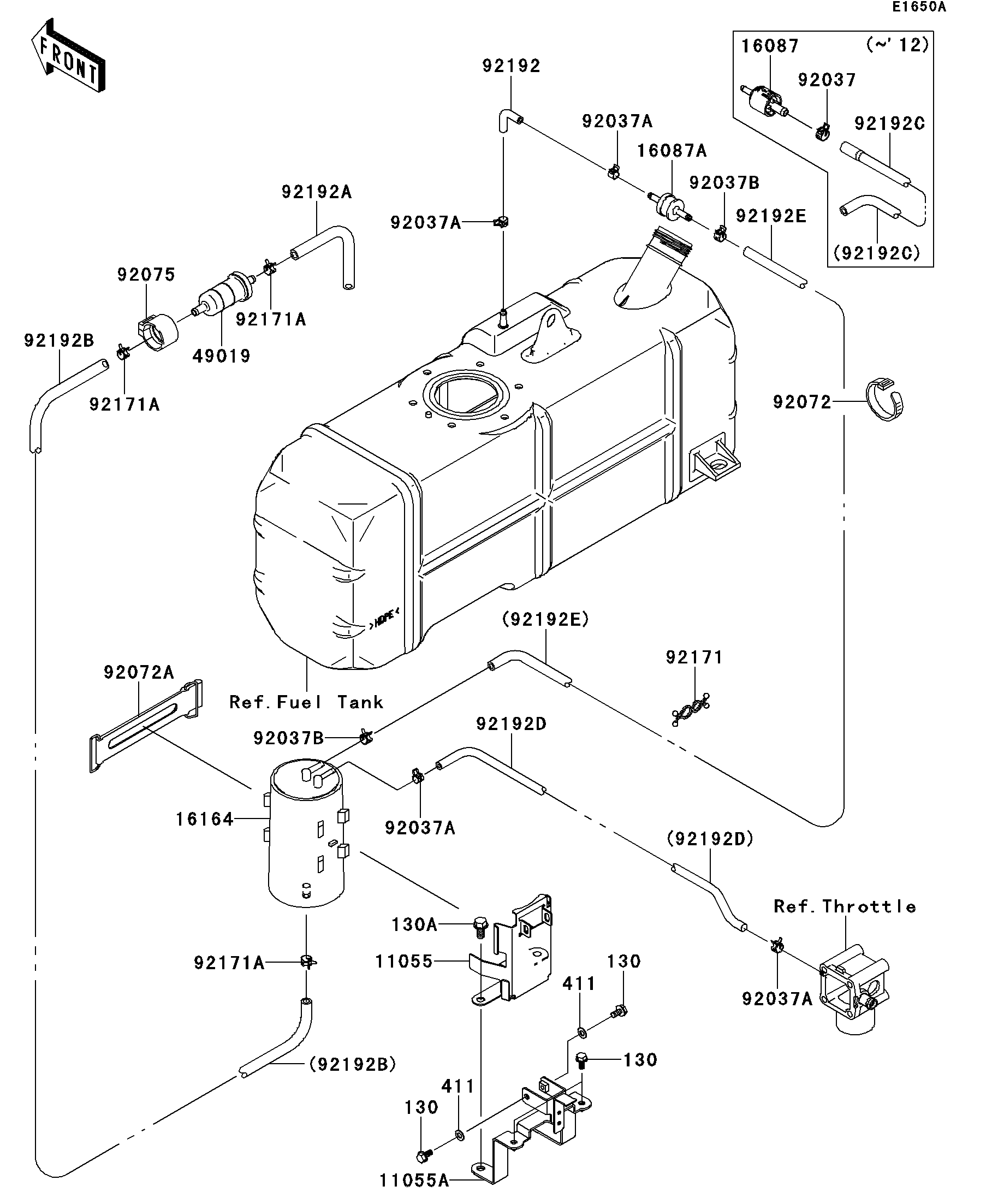

2011 MULE™ 4000 - Fuel Evaporative System(PBF-PDF)
11055
11055A
16164
49019
92037A
92037A
92037A
92037A
92037B
92037B
92072
92072A
92075
92171
92171A
92171A
92171A
92192
92192A
92192B
92192D
130
130
130
130A
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,UPP | 11055 | 11055-0263 | 1 | ||
| BRACKET,LWR | 11055A | 11055-0407 | 1 | ||
| CANISTER | 16164 | 16164-0007 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
| CLAMP,TUBE | 92037A | 92037-1461 | 4 | ||
| CLAMP,TUBE | 92037B | 92037-1505 | 1 | ||
| BAND,L=186 | 92072 | 92072-056 | 1 | ||
| BAND,L=168 | 92072A | 92072-1306 | 1 | ||
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
| CLAMP | 92171 | 92171-0476 | 1 | ||
| CLAMP | 92171A | 92171-0515 | 3 | ||
| TUBE,FUEL TANK-CHECK VALVE | 92192 | 92192-0067 | 1 | ||
| TUBE,FILTER-AIR | 92192A | 92192-0609 | 1 | ||
| TUBE,CANISTER-FUEL FILTER | 92192B | 92192-0713 | 1 | ||
| TUBE,4.5X9.5X460 | 92192D | 92192-0909 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BB0612 | 4 | ||
| BOLT-FLANGED,8X16 | 130A | 130BB0816 | 2 | ||
| WASHER-PLAIN,6.5X13X1 | 411 | 411AB0600 | 2 |
| BRACKET,UPP | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR | |
| REF # | 11055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL | |
| REF # | 49019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=168 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL FILTER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL TANK-CHECK VALVE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FILTER-AIR | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CANISTER-FUEL FILTER | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,4.5X9.5X460 | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6.5X13X1 | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
