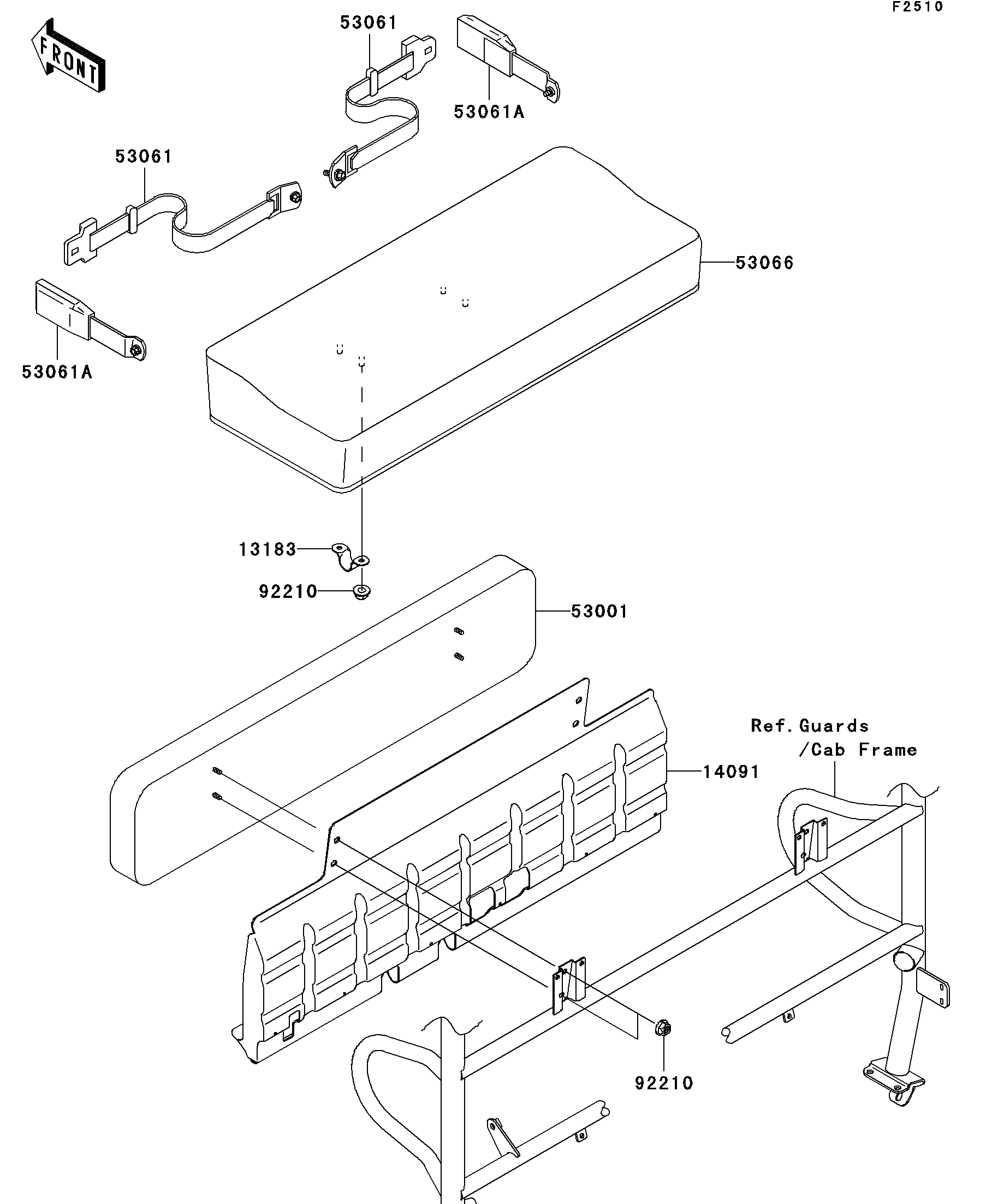

2009 Mule 4010 4x4 Hardwoods Green HD - Seat
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SEAT | 13183 | 13183-1400 | 2 | ||
| COVER,SEAT BACK | 14091 | 14091-0529 | 1 | ||
| SEAT-ASSY,BACK,S.M.BROWN | 53001 | 53001-1584-MB | 1 | ||
| BELT-SEAT,CATCH PLATE | 53061 | 53061-1013 | 2 | ||
| BELT-SEAT,BUCKLE | 53061A | 53061-1014 | 2 | ||
| SEAT-ASSY,FR,LWR,S.M.BROWN | 53066 | 53066-7502-MB | 1 | ||
| NUT,FLANGED,LOCK,8MM | 92210 | 92210-0005 | 8 |
