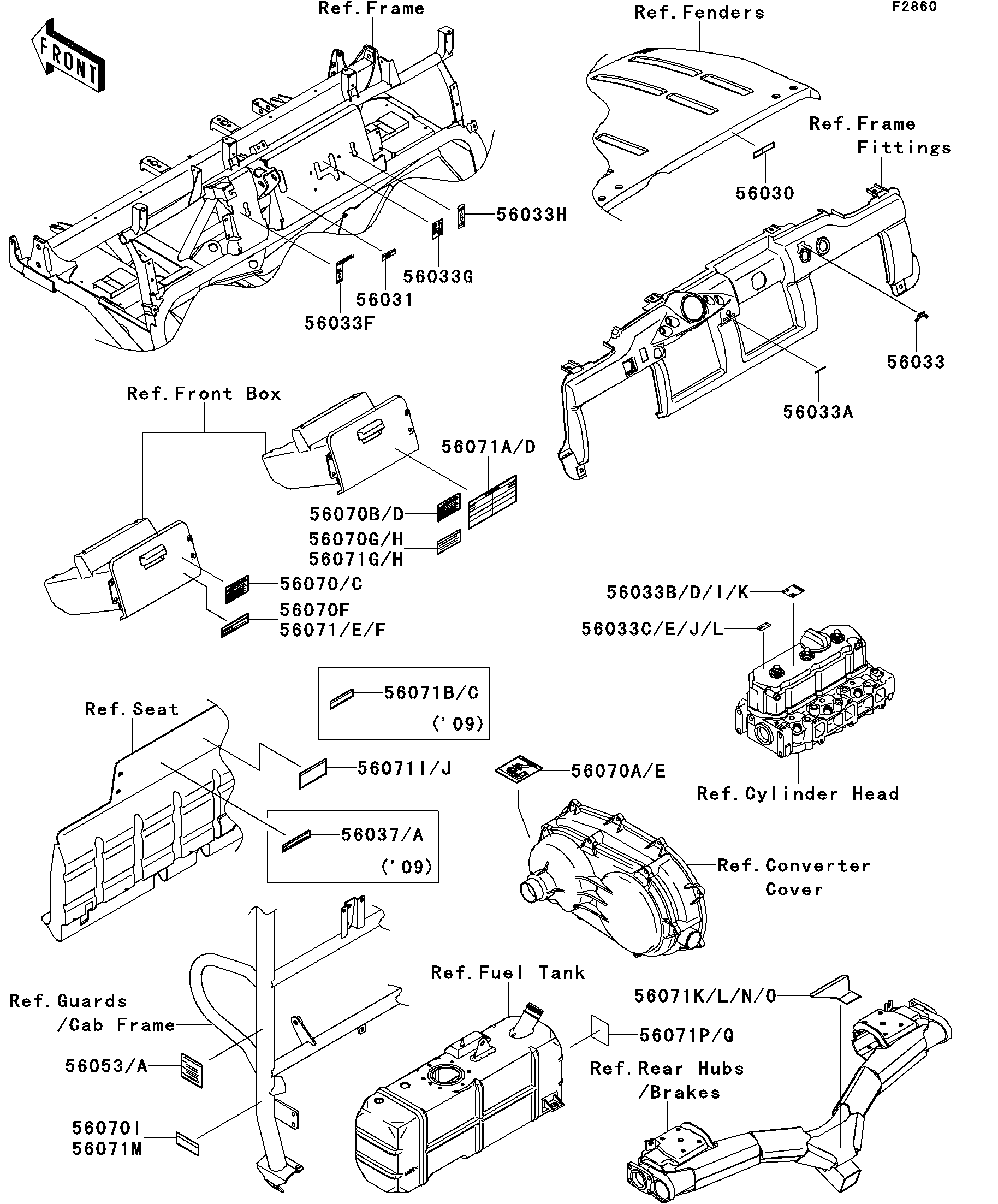

2013 MULE™ 4010 4x4 DIESEL - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033F
56033F
56033G
56033G
56033H
56033H
56053
56053
56070
56070
56070A
56070A
56070B
56070B
56070I
56070I
56071A
56071A
56071E
56071E
56071G
56071G
56071I
56071I
56071K
56071K
56071N
56071N
56071O
56071O
56071P
56071P
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,OPERATING HOOD 56030 56030-0267 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0212 1
LABEL-MANUAL,POWER STEERING 56033A 56033-0213 1
LABEL-MANUAL,PREVENT EG DMG 56033B 56033-0297 1
LABEL-MANUAL,OIL LEVEL CHECK 56033C 56033-0298 1
LABEL-MANUAL,DIFF MODE 56033F 56033-1183 1
LABEL-MANUAL,SHIFT 56033G 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033H 56033-1187 1
LABEL,MAX VEHICLE LOAD 56053 56053-7524 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,BED RAISED 56070I 56070-7515 1
LABEL-WARNING,GENERAL 56071A 56071-0101 1
LABEL-WARNING,SHIFT CAUTION 56071E 56071-0128 1
LABEL-WARNING,BELT SLIPPAGE 56071G 56071-0140 1
LABEL-WARNING,CARGO BED 56071I 56071-0144 1
LABEL-WARNING,TRAILER HITCH 56071K 56071-0332 1
LABEL-WARNING,TRAILER HITCH 56071N 56071-7511 1
LABEL-WARNING,TRAILER HITCH,FRN 56071O 56071-7512 1 CN
LABEL-WARNING,GASOLINE 56071P 56071-7516 1
