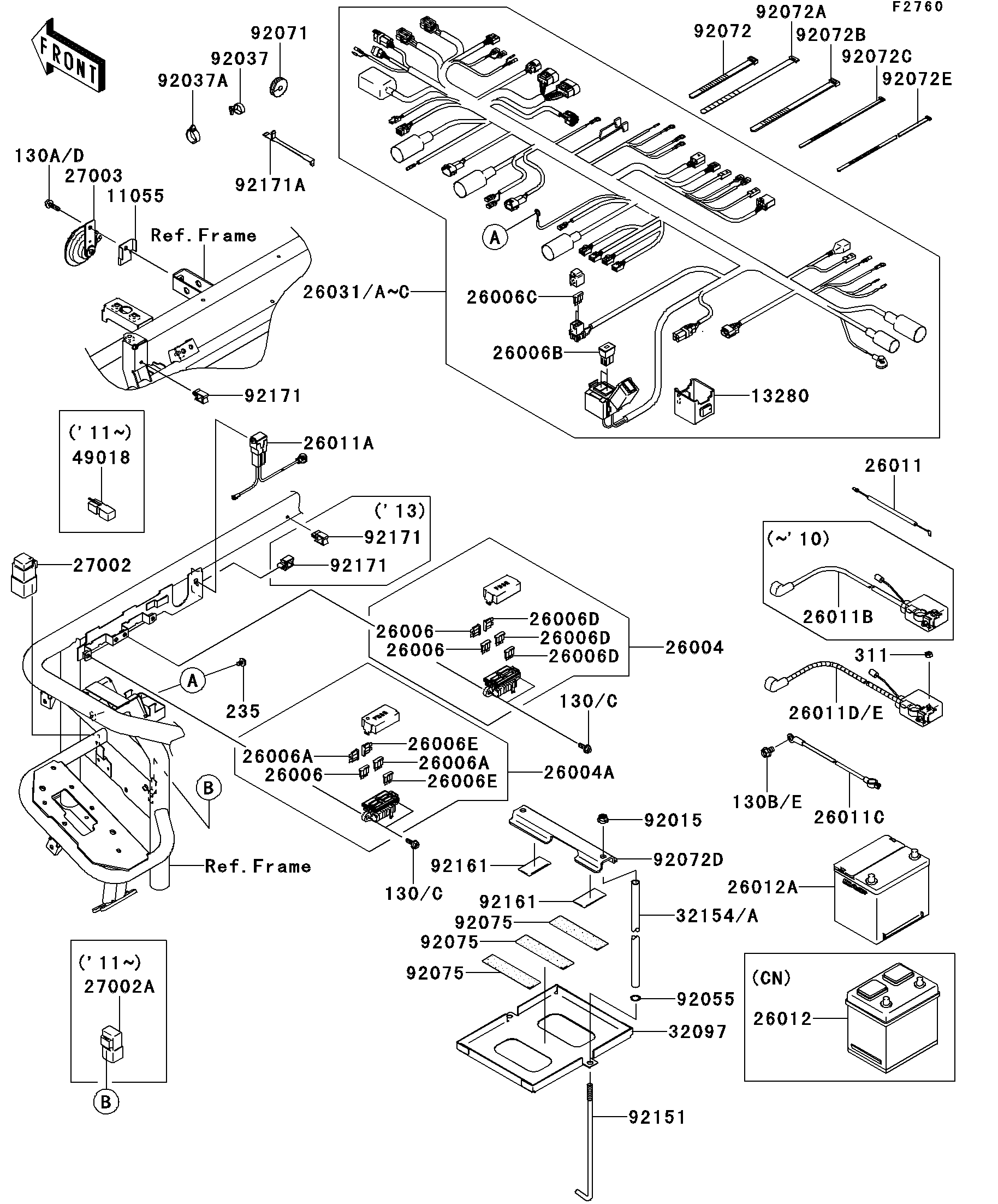

2013 MULE™ 4010 4x4 DIESEL - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
13280
13280
26004
26004
26004A
26004A
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26006D
26006E
26006E
26006E
26006E
26011
26011
26011A
26011A
26011C
26011C
26011D
26011D
26011E
26011E
26031B
26031B
26031C
26031C
27002
27002
27002A
27002A
27003
27003
32097
32097
49018
49018
92015
92015
92037
92037
92037A
92037A
92055
92055
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92072D
92072D
92072E
92072E
92075
92075
92075
92075
92075
92075
92151
92151
92161
92161
92161
92161
92171
92171
92171
92171
92171
92171
92171A
92171A
130
130
130
130
130A
130A
130B
130B
130C
130C
130C
130C
130D
130D
130E
130E
235
235
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HORN 11055 11055-0167 1
HOLDER 13280 13280-7508 1
FUSE-ASSY 26004 26004-0018 1
FUSE-ASSY 26004A 26004-0020 1
FUSE,BLADE,30A,GREEN 26006 26006-0004 3
FUSE,BLADE,10A,RED 26006A 26006-0005 2
FUSE,SLOW BLOW,BT,40A,GREEN 26006B 26006-0014 2
FUSE,7.5A 26006C 26006-0015 2
FUSE,BLADE,20A,YELLOW 26006D 26006-1051 3
FUSE,BLADE,5A,TAN 26006E 26006-1082 2
WIRE-LEAD,OIL PRESSURE SWITCH 26011 26011-0001 1
WIRE-LEAD,ALTERNATOR 26011A 26011-0219 1
WIRE-LEAD,BATTERY(-) 26011C 26011-0223 1
WIRE-LEAD,BATTERY(+) 26011D 26011-0266 1
WIRE-LEAD,BATTERY(+) 26011E 26011-0774 1
HARNESS,MAIN 26031B 26031-0942 1
HARNESS,MAIN 26031C 26031-1472 1
RELAY-ASSY 27002 27002-1068 1
RELAY-ASSY 27002A 27002-1088 1
HORN 27003 27003-1330 1
CASE-BATTERY 32097 32097-1200 1
DIODE 49018 49018-0005 1
NUT,FLANGED,8MM 92015 92015-1406 2
CLAMP,SPEED,L=58 92037 92037-1163 2
CLAMP,HOSE 92037A 92037-1827 2
RING-O 92055 92055-7501 2
GROMMET 92071 92071-1136 1
BAND,L=149 92072 92072-031 2
BAND,L=218 92072A 92072-032 1
BAND,L=186 92072B 92072-056 1
BAND,L=188 92072C 92072-1239 16
BAND,BATTERY 92072D 92072-1441 1
BAND,L=368.3 92072E 92072-3872 4
DAMPER 92075 92075-1829 3
BOLT 92151 92151-1728 2
DAMPER 92161 92161-0032 2
CLAMP 92171 92171-0290 3
CLAMP 92171A 92171-1365 1
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED,6X20 130A 130BA0620 1
BOLT-FLANGED,8X12 130B 130BA0812 1
BOLT-FLANGED,6X16 130C 130BB0616 4
BOLT-FLANGED,6X20 130D 130BB0620 1
BOLT-FLANGED,8X12 130E 130BB0812 1
SCREW-PAN-WP-CROS,6X10 235 235AA0610 1
NUT-HEX 311 311AC0600 1
