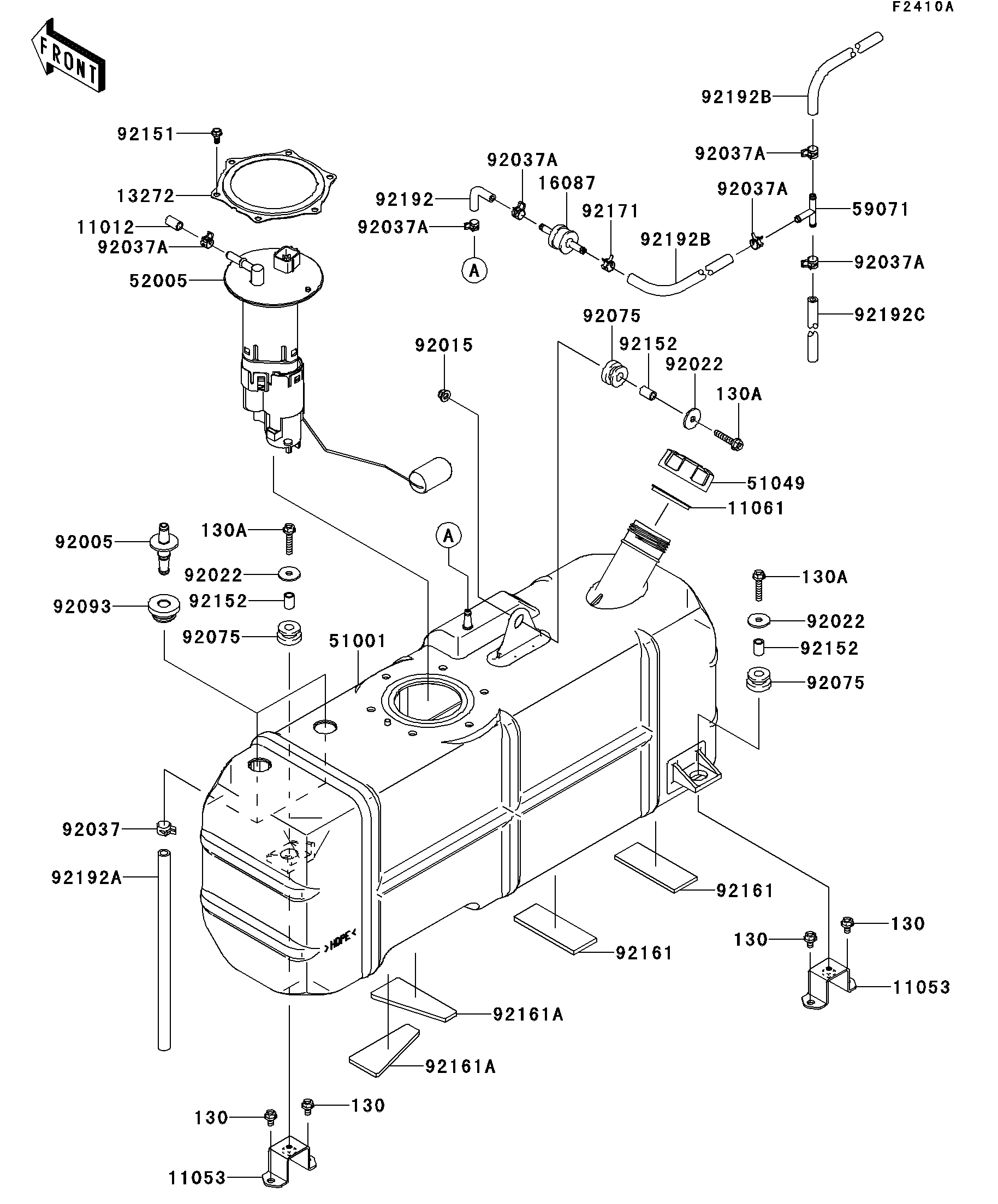

2013 MULE™ 4010 4x4 DIESEL - Fuel Tank(FDF)

DOWNLOAD PDF
SELECT A NEW PART
11012
11053
11053
11061
13272
16087
51001
51049
52005
59071
92005
92015
92022
92022
92022
92037
92037A
92037A
92037A
92037A
92037A
92037A
92075
92075
92075
92093
92151
92152
92152
92152
92161
92161
92161A
92161A
92171
92192
92192A
92192B
92192B
92192C
130
130
130
130
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1899 1
BRACKET 11053 11053-7512 2
GASKET,FUEL TANK CAP 11061 11061-7508 1
PLATE 13272 13272-1398 1
VALVE-CHECK 16087 16087-0703 1
TANK-COMP-FUEL 51001 51001-0764 1
CAP-TANK,FUEL 51049 51049-7002 1
GAUGE 52005 52005-0723 1
JOINT 59071 59071-3705 1
FITTING 92005 92005-7501 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
WASHER,6.5X24X2 92022 92022-1690 3
CLAMP,HOSE CLIP 92037 92037-1181 2
CLAMP,TUBE 92037A 92037-1461 6
DAMPER 92075 92075-1787 3
SEAL 92093 92093-7502 2
BOLT,FLANGED,5X11.5 92151 92151-1754 6
COLLAR,7.02X10.32X15.3 92152 92152-7511 3
DAMPER,92X35X4.76 92161 92161-0813 2
DAMPER,92X19X4.76 92161A 92161-0814 2
CLAMP 92171 92171-0515 1
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,8X13X260 92192A 92192-7503 2
TUBE,7X11X370 92192B 92192-7512 2
TUBE,7X11X225 92192C 92192-7513 1
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,6X30 130A 130BA0630 3
