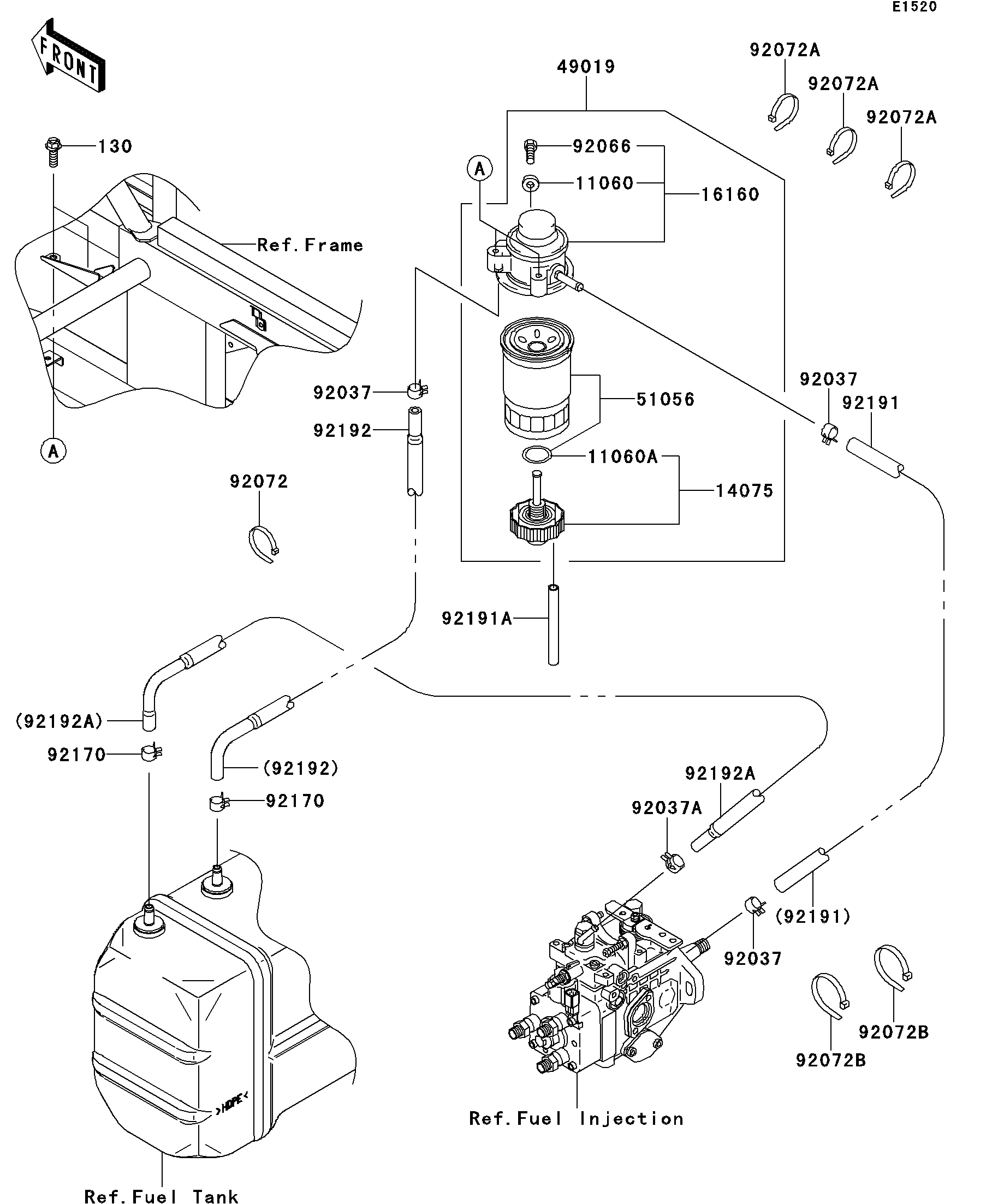

2013 MULE™ 4010 4x4 DIESEL - Fuel Pump

DOWNLOAD PDF
SELECT A NEW PART
11060
11060A
14075
16160
49019
51056
92037
92037
92037
92037A
92066
92072
92072A
92072A
92072A
92072B
92072B
92170
92170
92191
92191A
92192
92192A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,AIR VENT 11060 11060-1978 1
GASKET 11060A 11060-1979 1
CAP-ASSY,DRAIN 14075 14075-1109 1
BODY,FUEL FILTER 16160 16160-1328 1
FILTER-FUEL 49019 49019-1094 1
ELEMENT-FUEL FILTER 51056 51056-1051 1
CLAMP,HOSE CLIP 92037 92037-1181 3
CLAMP,TUBE 92037A 92037-1505 1
PLUG,AIR VENT 92066 92066-1538 1
BAND,L=186 92072 92072-056 1
BAND,L=188 92072A 92072-1239 3
BAND,L=368.3 92072B 92072-3872 2
CLAMP 92170 92170-1938 2
TUBE,INJECTION INLET 92191 92191-1437 1
TUBE,DRAIN,8X11X100 92191A 92191-1565 1
TUBE,INJECTION-TANK 92192 92192-0704 1
TUBE,TANK-INJECTION 92192A 92192-0705 1
BOLT-FLANGED,8X25 130 130BB0825 2
