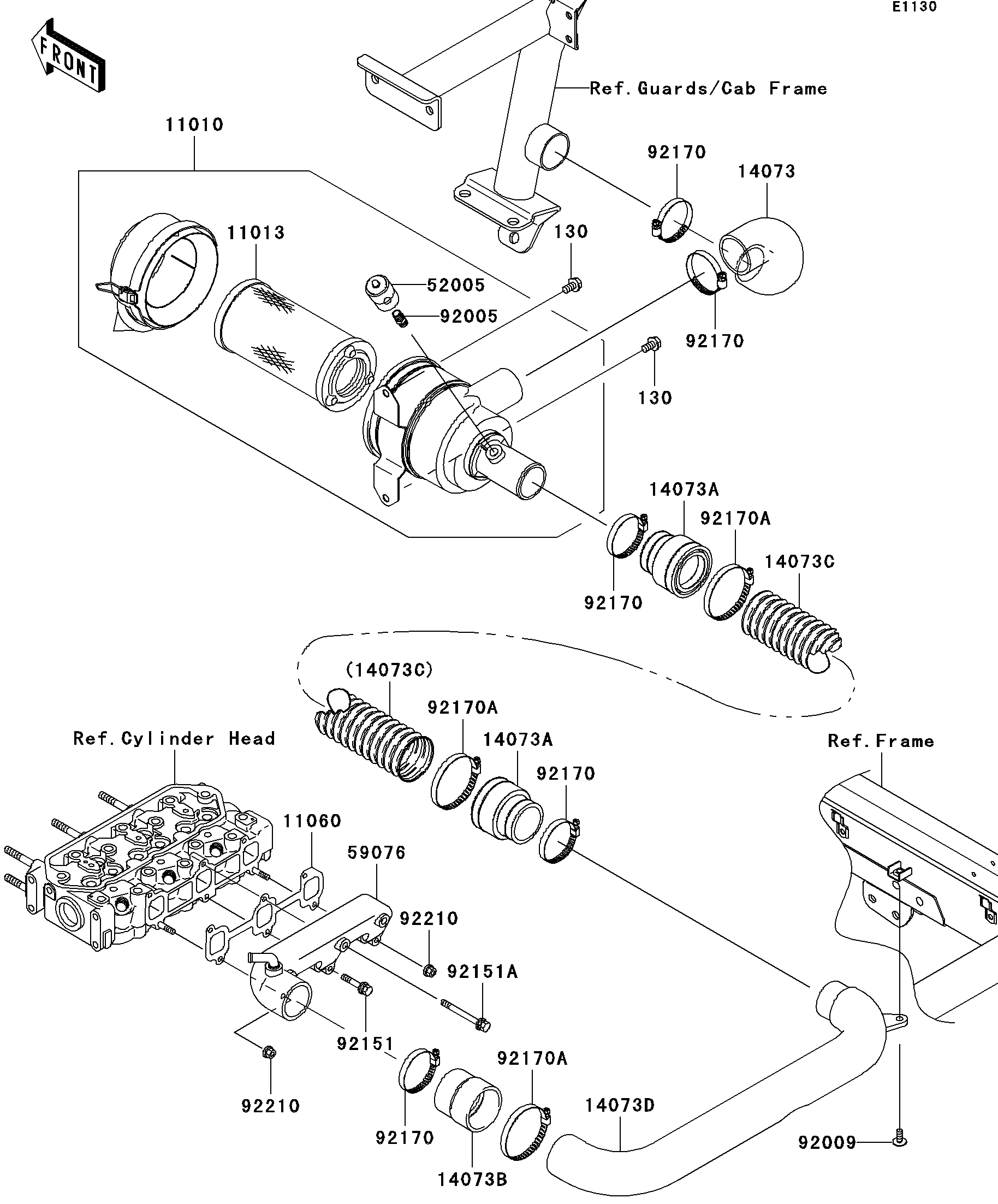

2008 Mule 3010 Trans4x4 Diesel - Air Cleaner
11010
11013
11060
14073
14073A
14073A
14073B
14073C
14073D
52005
59076
92005
92009
92151
92151A
92170
92170
92170
92170
92170
92170A
92170A
92170A
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-7503 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1290 | 1 | ||
| GASKET,INTAKE MANIFOLD | 11060 | 11060-1960 | 1 | ||
| DUCT,BAR-AIR FILTER | 14073 | 14073-7501 | 1 | ||
| DUCT,ADAPTER | 14073A | 14073-7505 | 2 | ||
| DUCT,BLOW DUCT-E/G | 14073B | 14073-7508 | 1 | ||
| DUCT,A/C-BLOW DUCT | 14073C | 14073-7509 | 1 | ||
| DUCT,BLOW | 14073D | 14073-7510 | 1 | ||
| GAUGE | 52005 | 52005-0017 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-1112 | 1 | ||
| FITTING,AIR FILTER | 92005 | 92005-1386 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 1 | ||
| BOLT,6X20 | 92151 | 92151-1667 | 1 | ||
| BOLT,6X60 | 92151A | 92151-1695 | 3 | ||
| CLAMP | 92170 | 92170-1674 | 5 | ||
| CLAMP | 92170A | 92170-1764 | 3 | ||
| NUT,6MM | 92210 | 92210-1210 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130J0814 | 2 |
