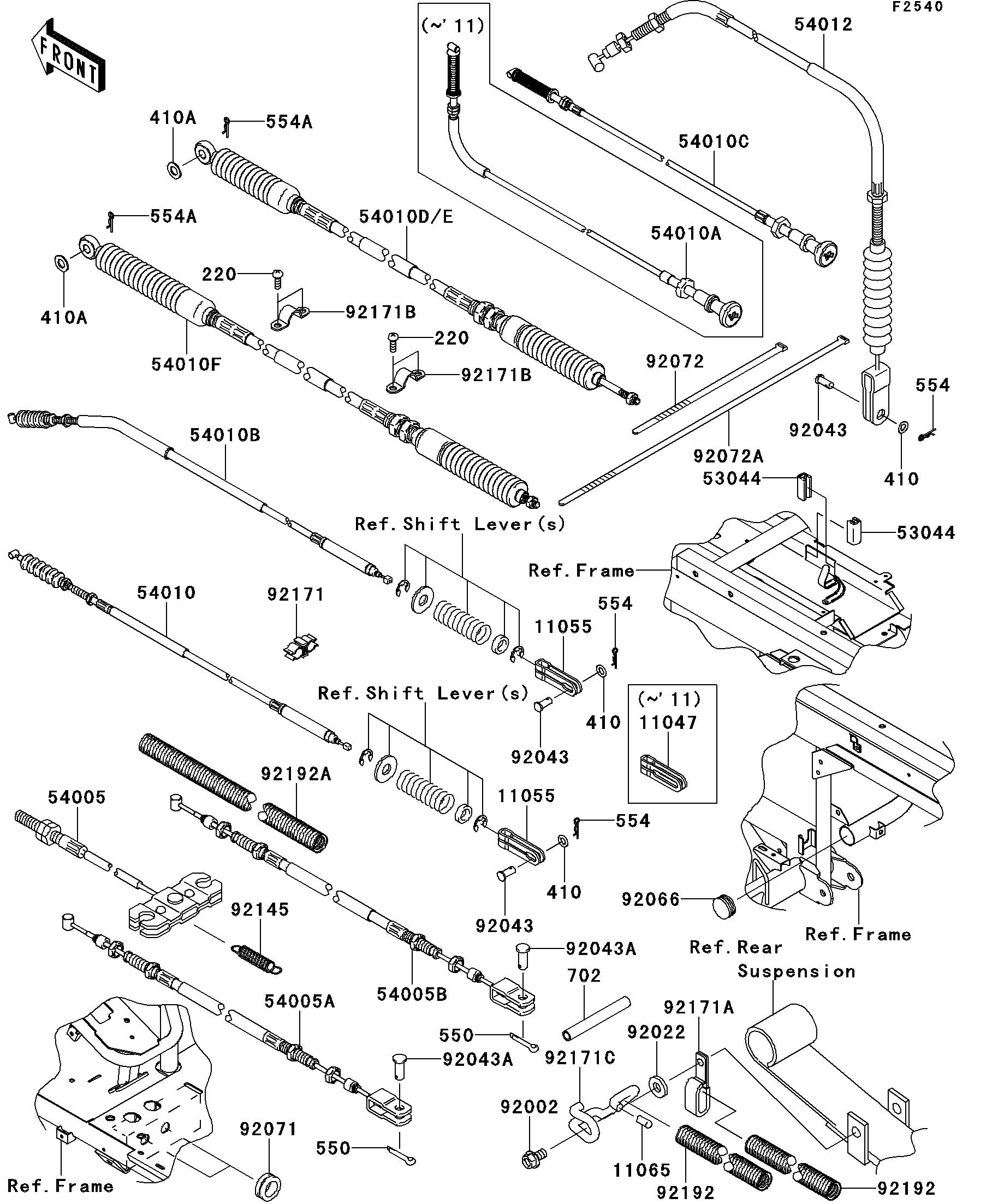

2012 MULE™ 4010 TRANS4x4® DIESEL - Cables

DOWNLOAD PDF
SELECT A NEW PART
11047
11055
11055
11065
53044
53044
54005
54005A
54005B
54010
54010A
54010B
54010C
54010D
54010E
54010F
54012
92002
92022
92043
92043
92043
92043A
92043A
92066
92071
92072
92072A
92145
92171
92171A
92171B
92171B
92171C
92192
92192
92192A
220
220
410
410
410
410A
410A
550
550
554
554
554
554A
554A
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DIFF LOCK 11047 11047-1043 2
BRACKET,DIFF LOCK 11055 11055-7505 2
CAP 11065 11065-7505 1
TRIM,L=22 53044 53044-7503 2
CABLE-BRAKE,PARKING,FR 54005 54005-1198 1
CABLE-BRAKE,PARKING,RR,LH 54005A 54005-7503 1
CABLE-BRAKE,PARKING,RR,RH 54005B 54005-7504 1
CABLE,2-4WD 54010 54010-0045 1
CABLE,HOOD 54010A 54010-0089 1
CABLE,DIFF LOCK 54010B 54010-0111 1
CABLE,HOOD 54010C 54010-0131 1
CABLE,HI/LOW 54010D 54010-0133 1
CABLE,HI-LOW 54010E 54010-7506 1
CABLE,SHIFT CONTROL 54010F 54010-7508 1
CABLE-THROTTLE 54012 54012-7506 1
BOLT,8X14 92002 92002-1589 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 1
PIN,6X11 92043 92043-092 3
PIN 92043A 92043-1039 2
PLUG 92066 92066-7503 1
GROMMET 92071 92071-1027 2
BAND,L=188 92072 92072-1239 3
BAND,L=368.3 92072A 92072-3872 1
SPRING 92145 92145-7506 1
CLAMP 92171 92171-0129 1
CLAMP,CABLE 92171A 92171-0176 1
CLAMP 92171B 92171-1203 2
CLAMP,BRAKE CABLE 92171C 92171-1210 1
TUBE,CORRUGATED,13X16.7X240 92192 92192-1243 2
TUBE,PROTECTOR,13.2X17.5X350 92192A 92192-3715 1
SCREW-PAN-CROS,5X14 220 220AA0514 4
WASHER-PLAIN-SMALL 410 410AA0600 3
WASHER-PLAIN-SMALL,8MM 410A 410AA0800 2
PIN-COTTER,2.0X22 550 550AA2022 2
PIN-SNAP 554 554DA0600 3
PIN-SNAP 554A 554DA0800 2
TUBE-RUBBER,5X8X55 702 702A0555 1
