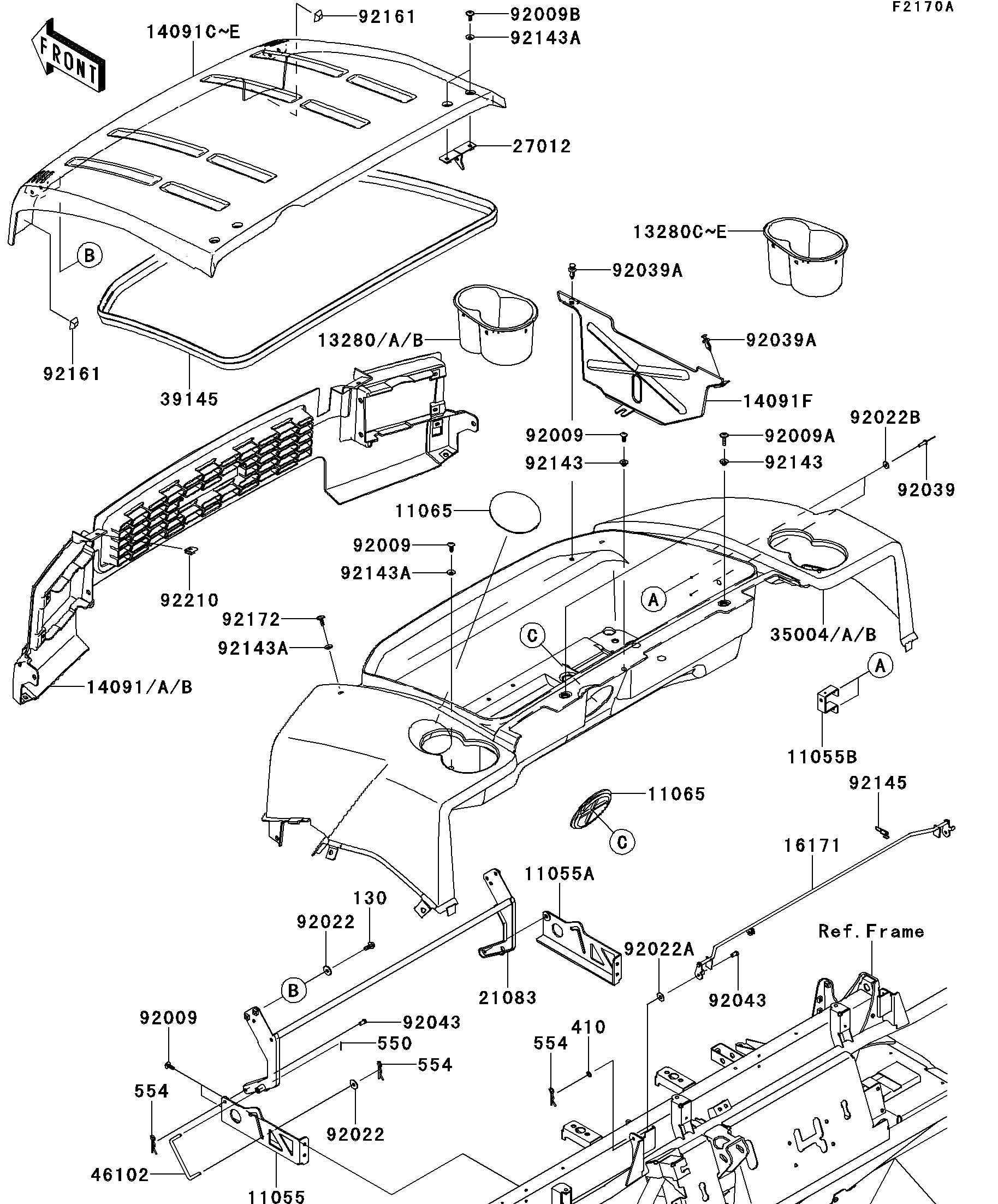

2012 MULE™ 4010 TRANS4x4® DIESEL - Fenders(GCF/GDF)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11055B
11055B
11065
11065
11065
11065
14091F
14091F
16171
16171
21083
21083
27012
27012
39145
39145
46102
46102
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92039
92039
92039A
92039A
92039A
92039A
92043
92043
92043
92043
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92145
92145
92161
92161
92161
92161
92172
92172
92210
92210
130
130
410
410
550
550
554
554
554
554
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HINGE,LH 11055 11055-0037 1
BRACKET,HINGE,RH 11055A 11055-0038 1
BRACKET,RESERVOIR TANK 11055B 11055-0124 1
CAP,F.BLACK 11065 11065-1053-6Z 2
COVER,RESERVOIR TANK 14091F 14091-1715 1
LINK 16171 16171-0013 1
ARM,HOOD 21083 21083-0051 1
HOOK,HOOD 27012 27012-0119 2
TRIM-SEAL,L=2350 39145 39145-0032 1
ROD 46102 46102-0103 1
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X16 92009B 92009-1621 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 5
WASHER,7X18X1.2 92022A 92022-1545 2
WASHER,4.3X12.5X1 92022B 92022-1949 2
RIVET 92039 92039-1150 2
RIVET 92039A 92039-1229 2
PIN,6X9 92043 92043-1626 4
COLLAR 92143 92143-1057 3
COLLAR 92143A 92143-1087 7
SPRING 92145 92145-0215 1
DAMPER,FR HOOD 92161 92161-0790 2
SCREW,TAPPING,6X20 92172 92172-0488 2
NUT,LEAF SPRING,6MM 92210 92210-0624 2
BOLT-FLANGED,6X16 130 130BA0616 4
WASHER-PLAIN-SMALL 410 410AA0600 2
PIN-COTTER,1.6X15 550 550AA1615 1
PIN-SNAP 554 554DA0600 5
