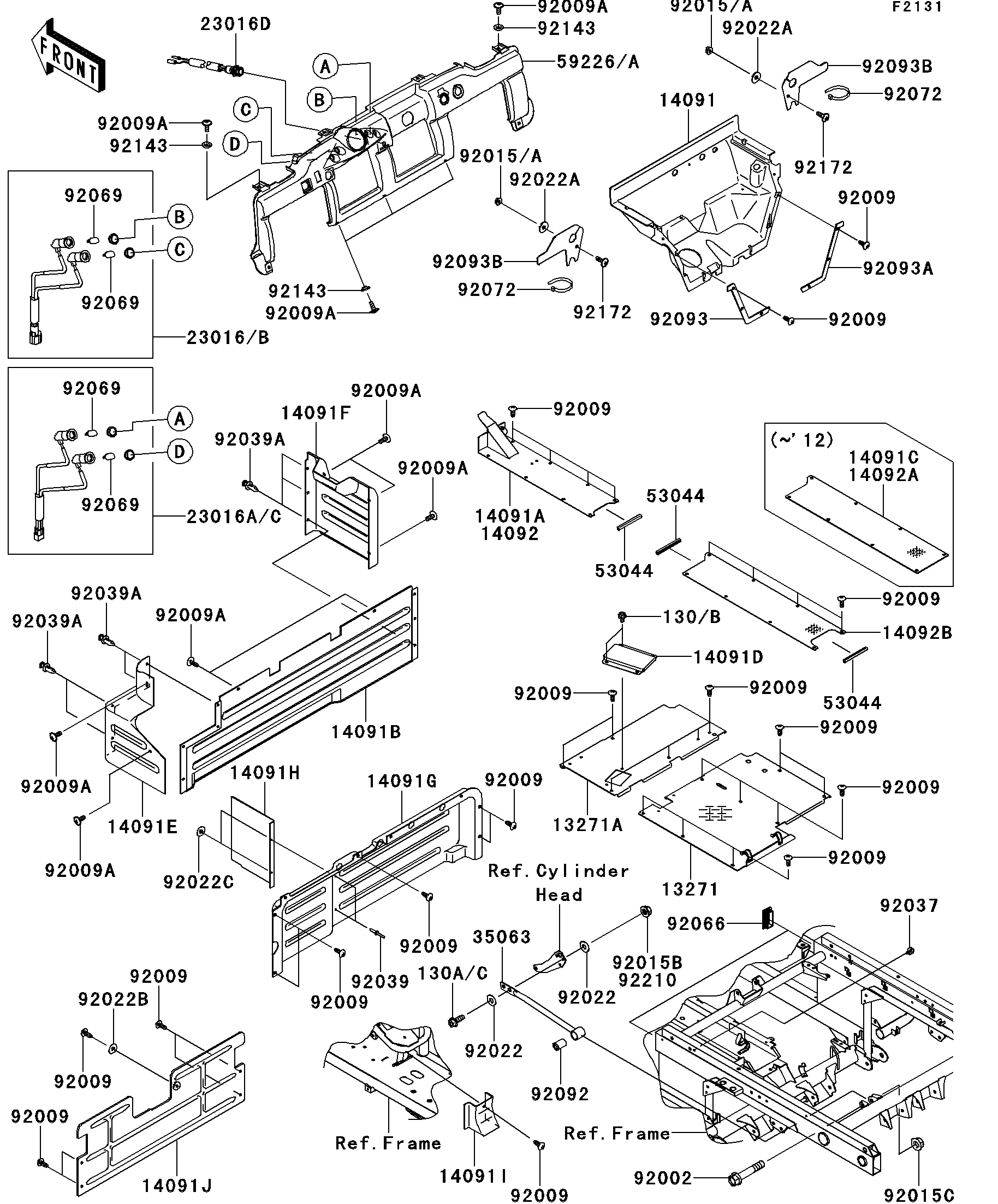

2012 MULE™ 4010 TRANS4x4® DIESEL - Frame Fittings
13271
13271
13271A
13271A
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
14091E
14091E
14091F
14091F
14091G
14091G
14091H
14091H
14091I
14091I
14091J
14091J
14092
14092
23016B
23016B
23016C
23016C
23016D
23016D
35063
35063
53044
53044
53044
53044
53044
53044
59226
59226
92002
92002
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015C
92015C
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92037
92037
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92066
92066
92069
92069
92069
92069
92069
92069
92069
92069
92072
92072
92072
92072
92092
92092
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92143
92143
92143
92143
92143
92143
92172
92172
92172
92172
92210
92210
130B
130B
130C
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,FLOOR,RH | 13271 | 13271-7602 | 1 | ||
| PLATE,FLOOR,RH | 13271A | 13271-7606 | 1 | ||
| COVER,FLOOR | 14091 | 14091-1378 | 1 | ||
| COVER,FLOOR,CNT,FR | 14091A | 14091-1692 | 1 | ||
| COVER,FRONT SEAT,CNT | 14091B | 14091-7531 | 1 | ||
| COVER,FLOOR,CNT,RR | 14091C | 14091-7535 | 1 | ||
| COVER | 14091D | 14091-7536 | 1 | ||
| COVER,FRONT SEAT,LH | 14091E | 14091-7541 | 1 | ||
| COVER,FRONT SEAT,RH | 14091F | 14091-7542 | 1 | ||
| COVER,FRONT SEAT,RR,LWR | 14091G | 14091-7549 | 1 | ||
| COVER,FUEL TANK | 14091H | 14091-7550 | 1 | ||
| COVER,PARKING CABLE | 14091I | 14091-7551 | 1 | ||
| COVER,REAR SEAT,LWR | 14091J | 14091-7558 | 1 | ||
| COVER,FLOOR,CNT,FR | 14092 | 14092-0832 | 1 | ||
| LAMP-ASSY,PARKING&WATER TEMP | 23016B | 23016-0035 | 1 | ||
| LAMP-ASSY,OIL PRESSURE&GROW | 23016C | 23016-0037 | 1 | ||
| LAMP-ASSY,LED | 23016D | 23016-7501 | 1 | ||
| STAY | 35063 | 35063-1107 | 1 | ||
| TRIM,L=111 | 53044 | 53044-7502 | 3 | ||
| PANEL-CONTROL,F.BLACK | 59226 | 59226-0012-6Z | 1 | ||
| BOLT,ROD,12MM | 92002 | 92002-1757 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 50 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 12 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
| NUT,12MM | 92015C | 92015-1706 | 1 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| WASHER,6.5X20X1.6,BLACK | 92022A | 92022-1346 | 2 | ||
| WASHER,7X18X1.2 | 92022B | 92022-1545 | 1 | ||
| WASHER,4.3X12.5X1 | 92022C | 92022-1949 | 2 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
| RIVET | 92039 | 92039-1150 | 2 | ||
| RIVET | 92039A | 92039-1229 | 7 | ||
| PLUG | 92066 | 92066-7505 | 2 | ||
| BULB,12V 1.7W,T10 | 92069 | 92069-1059 | 4 | ||
| BAND,L=368.3 | 92072 | 92072-3872 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-005 | 1 | ||
| SEAL,FRONT FENDER,LH | 92093 | 92093-1293 | 1 | ||
| SEAL,FRONT FENDER,RH | 92093A | 92093-1294 | 1 | ||
| SEAL,LOWER COVER | 92093B | 92093-1295 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 5 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 2 | ||
| NUT,FLANGED,LOCK,8MM | 92210 | 92210-0005 | 2 | ||
| BOLT-FLANGED,6X10 | 130B | 130BB0610 | 2 | ||
| BOLT-FLANGED,8X22 | 130C | 130BB0822 | 2 |
