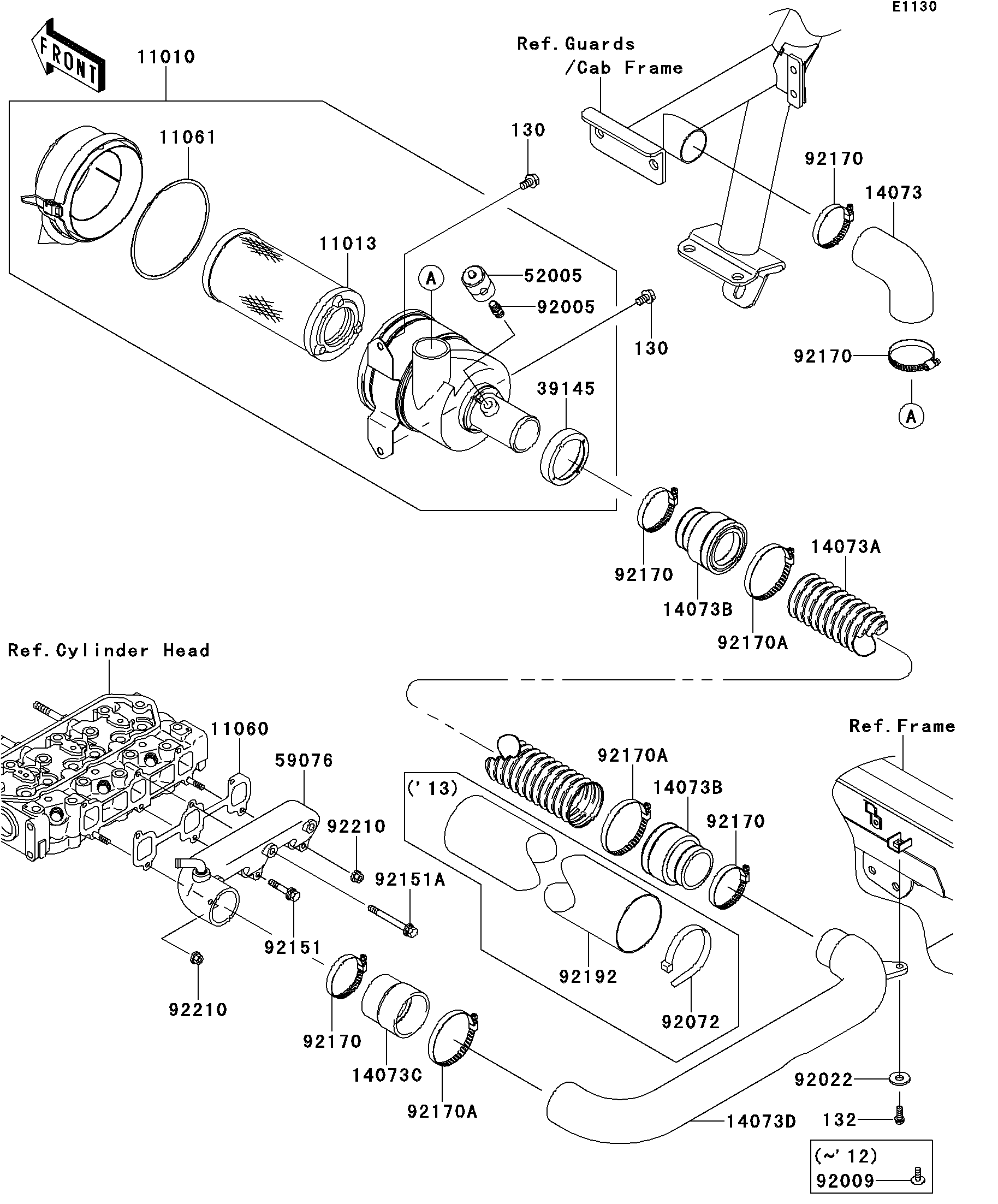

2011 MULE™ 4010 TRANS4x4® DIESEL - Air Cleaner
11010
11013
11060
11061
14073
14073A
14073B
14073B
14073C
14073D
39145
52005
59076
92005
92009
92151
92151A
92170
92170
92170
92170
92170
92170A
92170A
92170A
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0189 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1290 | 1 | ||
| GASKET,INTAKE MANIFOLD | 11060 | 11060-1960 | 1 | ||
| GASKET,AIR FILTER | 11061 | 11061-1078 | 1 | ||
| DUCT,RR BAR-A/C | 14073 | 14073-0235 | 1 | ||
| DUCT,A/C-BLOW DUCT | 14073A | 14073-0240 | 1 | ||
| DUCT,ADAPTER | 14073B | 14073-7505 | 2 | ||
| DUCT,BLOW DUCT-E/G | 14073C | 14073-7508 | 1 | ||
| DUCT,BLOW | 14073D | 14073-7510 | 1 | ||
| TRIM-SEAL | 39145 | 39145-1133 | 1 | ||
| GAUGE | 52005 | 52005-0017 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-1112 | 1 | ||
| FITTING,AIR FILTER | 92005 | 92005-1386 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 1 | ||
| BOLT,6X20 | 92151 | 92151-1667 | 1 | ||
| BOLT,6X60 | 92151A | 92151-1695 | 3 | ||
| CLAMP | 92170 | 92170-1674 | 5 | ||
| CLAMP | 92170A | 92170-1764 | 3 | ||
| NUT,6MM | 92210 | 92210-1210 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130BB0814 | 2 |
