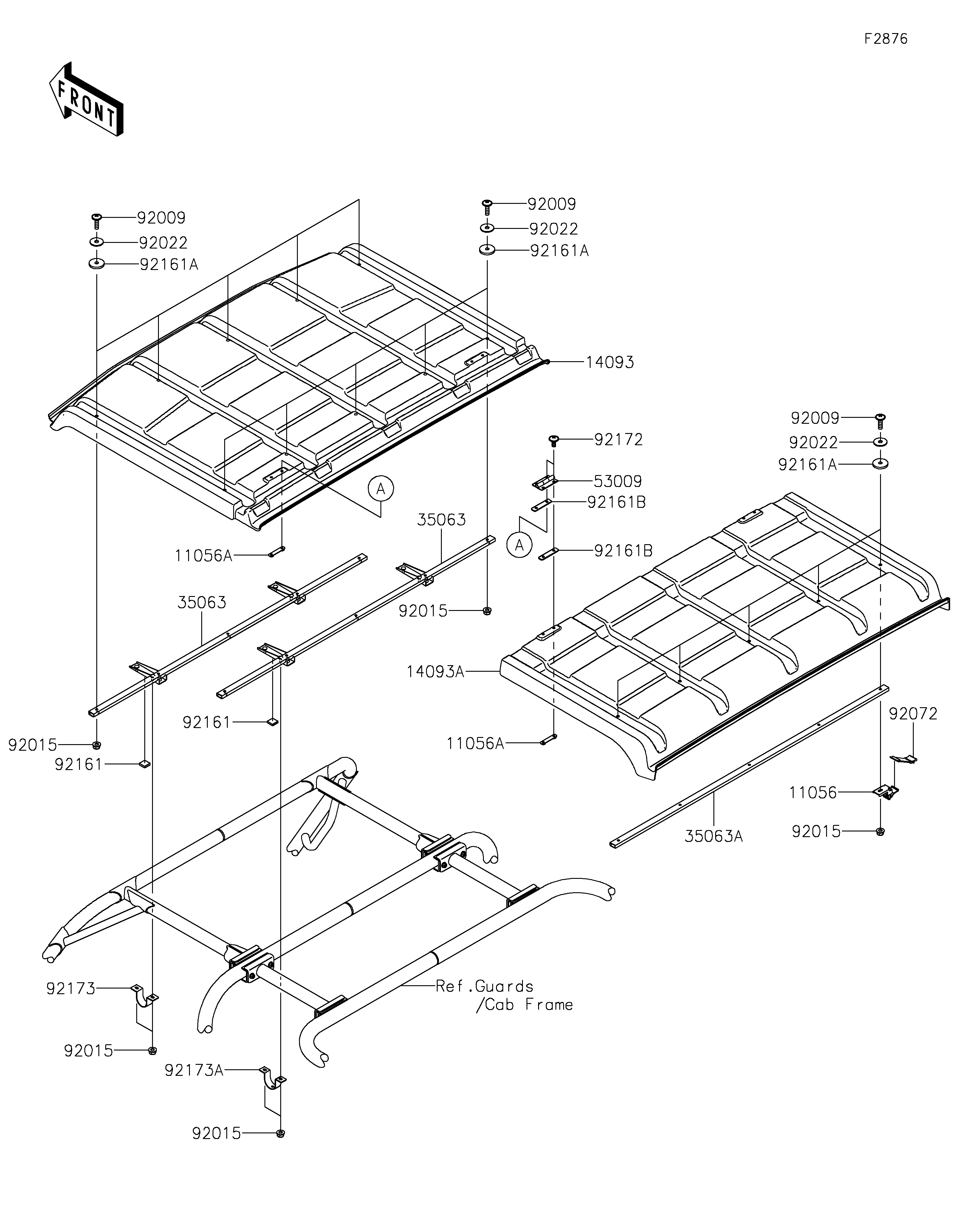

2021 MULE™ 4010 TRANS4x4® FE - Sun Top

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056A
14093
14093A
35063
35063
35063A
53009
92009
92009
92009
92015
92015
92015
92015
92015
92022
92022
92022
92072
92161
92161
92161A
92161A
92161A
92161B
92161B
92172
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-3815 2
BRACKET 11056A 11056-3910 4
COVER,SUN TOP,4P,FR 14093 14093-0318 1
COVER,SUN TOP,4P,RR 14093A 14093-0319 1
STAY,SUN TOP,FR 35063 35063-1311 2
STAY,SUN TOP,RR 35063A 35063-1312 1
HINGE 53009 53009-0034 2
SCREW,6X22,BLACK 92009 92009-1256 15
NUT,LOCK,FLANGED,6MM 92015 92015-1603 23
WASHER,6.5X22X1.6 92022 92022-237 15
BAND,TOOL 92072 92072-1176 2
DAMPER,25.4X25.4X6.3 92161 92161-1405 4
DAMPER,6X25X3.15 92161A 92161-1633 15
DAMPER 92161B 92161-1650 4
SCREW,6X14 92172 92172-0004 8
CLAMP,R22 92173 92173-0884 2
CLAMP,R24 92173A 92173-1472 2
