Parts Diagrams |

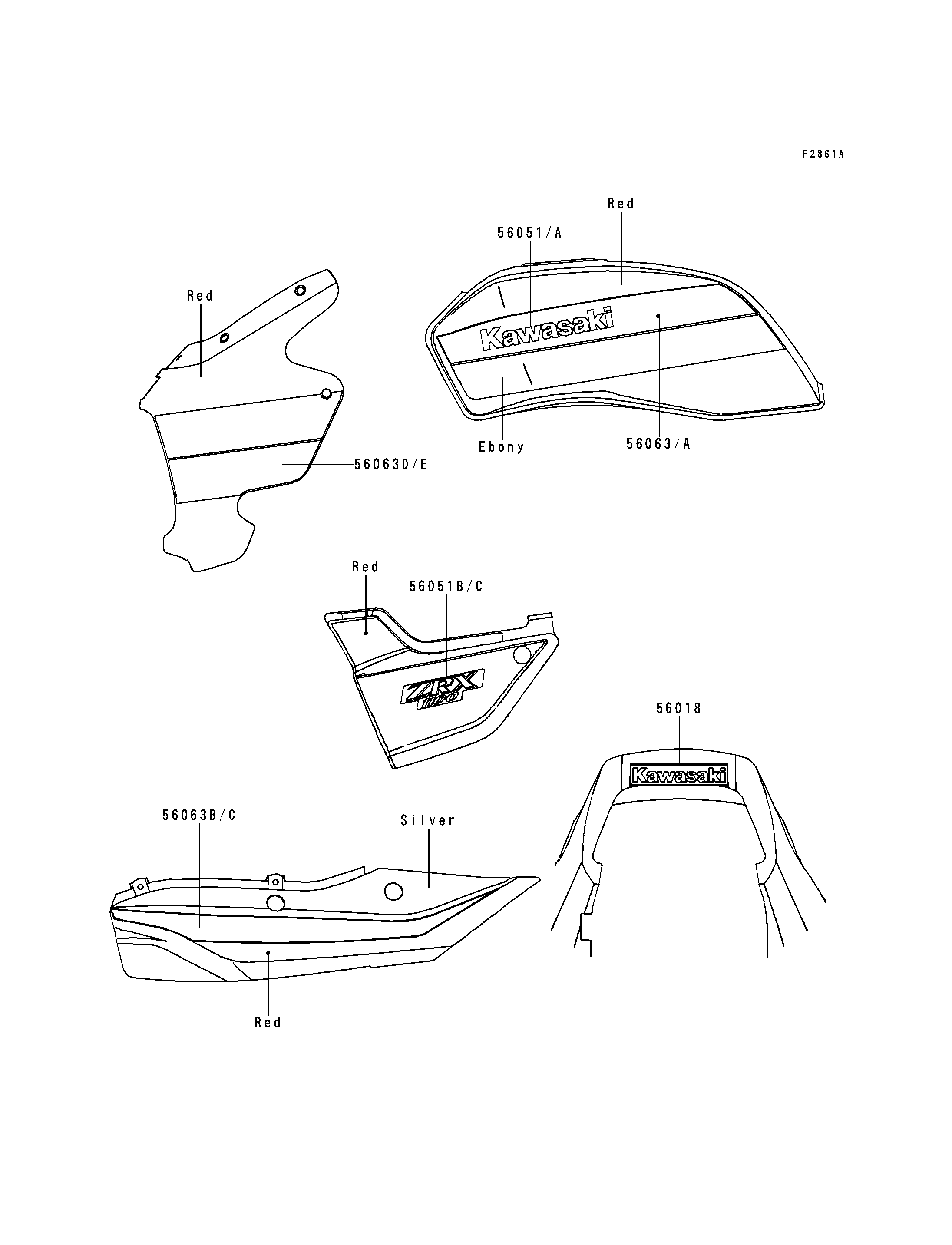

2000 ZRX1100 - Decals(Ebony/Red)(ZR1100-C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SEAT COVER,KAWASAKI | 56018 | 56018-1208 | 1 | ||
| MARK,FUEL TANK,LH,KAWASAKI | 56051 | 56051-1610 | 1 | ||
| MARK,FUEL TANK,RH,KAWASAKI | 56051A | 56051-1611 | 1 | ||
| MARK,SIDE COVER,LH,ZRX 1100 | 56051B | 56051-1612 | 1 | ||
| MARK,SIDE COVER,RH,ZRX 1100 | 56051C | 56051-1613 | 1 | ||
| PATTERN,FUEL TANK,LH | 56063 | 56063-1227 | 1 | ||
| PATTERN,FUEL TANK,RH | 56063A | 56063-1228 | 1 | ||
| PATTERN,SEAT COVER,LH | 56063B | 56063-1229 | 1 | ||
| PATTERN,SEAT COVER,RH | 56063C | 56063-1230 | 1 | ||
| PATTERN,UPP COWLING,LH | 56063D | 56063-1231 | 1 | ||
| PATTERN,UPP COWLING,RH | 56063E | 56063-1232 | 1 |
| MARK,SEAT COVER,KAWASAKI | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH,KAWASAKI | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,ZRX 1100 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,ZRX 1100 | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
